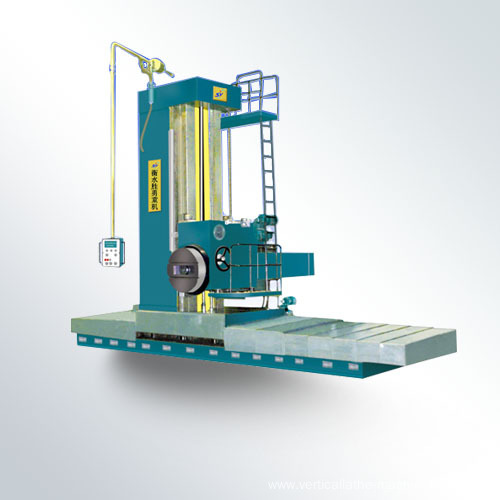

Horizontal Boring mill tooling

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: T6920

Structure: Floor Type Boring Machine

Coordinate Boring Machine Type: Horizontal Type

Tool Type: Fine Knife

Controlling Mode: CNC

Precision: Precision

Automatic Grade: Automatic

Certification: ISO 9001

Condition: New

Boring Spindle Diameter: 200mm

Milling Spindle End Diameter: 320mm

Ram Dimension: 480×520 Mm

Spindle Taper: ISO-60

Boring Spindle Travel: 1200mm

Ram Stroke: 1200mm

Total Travel Of Boring Axis And Ram: 2400mm

Travel Of Headstock : 4000-6000mm

Column Transverse Travel: 4000-12000mm

Maximum Torque Of Milling Spindle: 10000Nm

Additional Info

Packaging: 1x40'ft container

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

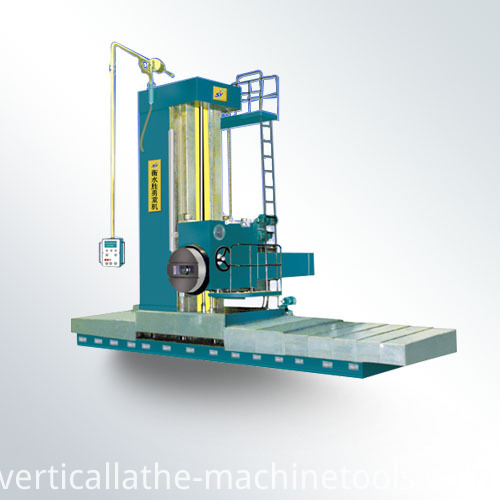

Horizontal Boring Machine (floor type boring milling machine) is used for planar milling and boring of large parts and it is wide-range in application. It can complete multiple processes after one time setup. Its processing range will be further expanded if work together with work table.

Various accessories (such as vertical milling head, universal milling head, elongated milling head, flat chuck etc according to special order ) can be installed in the front of square ram. Therefore, the machine can process large and complex parts . It can complete multiple processes after one time setup. Its processing range will be further expanded if work together with work table.Boring mill tooling

Technical parameters of Floor type boring milling machine T6920

Boring spindle diameter mm 200

Milling spindle end diameter mm 320

Ram dimension(width×height) 480×520

Spindle taper ISO-60

Boring spindle travel mm 1200

Ram stroke mm 1200

Total travel of boring axis and ram mm 2400

Travel of headstock mm 4000-6000

Column transverse travel mm 4000-12000

Maximum torque of milling spindle

Nm 10000

Spindle speed range (stepless) r/min 2-600

Boring axis feed range (stepless) mm/min 1-1500

Feed range of Ram ( stepless) mm/min 1-3000

Feed range of headstock mm/min 1-6000

Rapid speed of headstock mm/min 6000

Feed range of column (stepless) mm/min 1-6000

Rapid speed of column mm/min 6000

Power of main drive motor KW 70

Overall dimensions(L×W×H) mm 15000×4215×9490

Looking for ideal Boring Mill Tooling Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Horizontal Boring Tool are quality guaranteed. We are China Origin Factory of Tools for Boring. If you have any question, please feel free to contact us.
