Floor boring mill machine

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets

Basic Info

Model No.T6913

BrandShengyong

StructureFloor Type Boring Machine

Coordinate Boring Machine TypeHorizontal Type

Tool TypeFine Knife

Controlling ModeCNC

PrecisionPrecision

Automatic GradeAutomatic

CertificationISO 9001

ConditionNew

Boring Spindle Diameter130mm

Milling Spindle End Diameter221.44mm

Ram Dimension(width×height)350×380

Spindle TaperISO-50

Boring Spindle Travel800mm

Ram Stroke700mm

Travel Of Headstock2000-4000mm

Additional Info

Packaging1x40'ft container

Productivity1 set

TransportationOcean

Place of OriginChina

Supply Ability1 set /year

CertificateISO9001

Payment TypeL/C

IncotermFOB

Product Description

Floor Type Boring And Milling Machine has many functions of milling, boring, drilling, tapping and counterboring etc. Boring mill machine is a high speed, high efficiency and high precision automatic machine tool. Floor Boring And Milling Machine is based on milling and boring, and boring mill machine can also be processed in various processes, such as drilling, reaming, plane, end face and outer circle.
Floor type boring and milling machine is especially suitable for machining porous parts and box parts with precise hole spacing.Boring milling machines are widely applied to rough and finish machining of large and complex workpieces in military manufacturing, nuclear power, wind power, energy, metallurgy, shipbuilding,and other machinery manufacturing industries.

Technical parameters of floor type boring and milling machine T6913

Boring spindle diameter mm 130

Milling spindle end diameter mm 221.44

Ram dimension(width×height) 350×380

Spindle taper ISO-50

Boring spindle travel mm 800

Ram stroke mm 700

Total travel of boring axis and ram mm 1500

Travel of headstock  mm 2000-4000

Column transverse travel mm 4000-12000

Maximum torque of milling spindle

Nm 6000

Spindle speed range (stepless) r/min 2-600

Boring axis feed range (stepless) mm/min 1-1500

Feed range of Ram ( stepless) mm/min 1-3000

Feed range of headstock mm/min 1-6000

Rapid speed of headstock mm/min 6000

Feed range of column (stepless) mm/min 1-6000

Rapid speed of column mm/min 6000

Power of main drive motor KW 37

Overall dimensions(L×W×H) mm 9220×3300×6385

boring mill machine

Product Categories : Boring Machines

Product Images

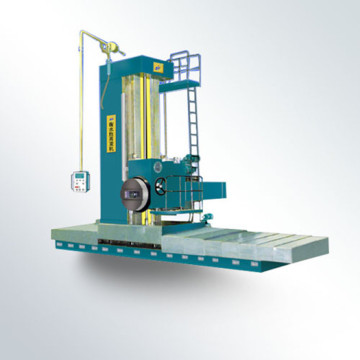

  • Floor boring mill machine
