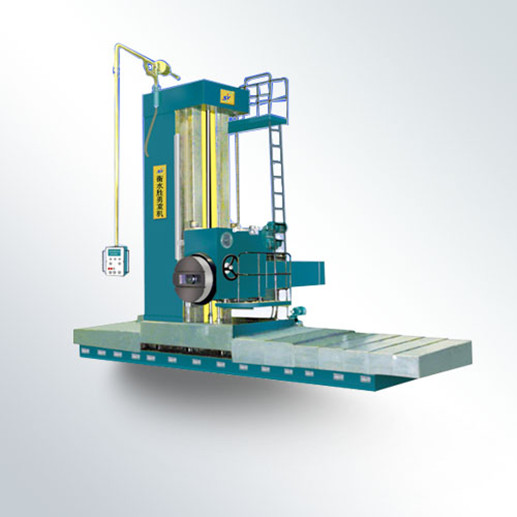

Floor-type milling & boring machine

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Pound
    Delivery Time: 30 Days

Basic Info

Model No.: T6920

Structure: Horizontal Boring Machine

Coordinate Boring Machine Type: Horizontal Type

Tool Type: Fine Knife

Controlling Mode: CNC

Precision: Precision

Automatic Grade: Automatic

Certification: ISO 9001

Condition: New

Boring Spindle Diameter: 200mm

Milling Spindle End Diameter: 320mm

Ram Dimension(width×height): 480×520

Spindle Taper: ISO-60

Boring Spindle Travel: 1200mm

Travel Of Headstock: 4000-6000mm

Additional Info

Packaging: 1x40'ft container

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

Floor Type Boring And Milling Machine is the ideal processing equipment in metallurgy, energy, power and other industries.Floor-type milling & boring machine features with boring, drilling, milling, grooving and other processing functions.Floor-type milling & Boring Machines are coupled with high-precision rotary table, right angle milling head and other functional annex to achieve multiaspect processing.
Floor-type milling & boring machines are an advanced equipment designed and manufactured by modern mechanical with excellent performance.Floor type boring and milling machine has high precision, high reliability and high stiffness and so on. Floor type boring and milling machine can be completed in a folder to complete the milling, boring, tapping processing and space surface and curve processing. Floor type milling boring machines have high precision, good rigidity and floor type boring and milling machine is especially applicable In large, heavy complex shaped workpiece processing.

Technical parameters of Floor type boring milling machine T6920

Boring spindle diameter mm 200

Milling spindle end diameter mm 320

Ram dimension(width×height) 480×520

Spindle taper ISO-60

Boring spindle travel mm 1200

Ram stroke mm 1200

Total travel of boring axis and ram mm 2400

Travel of headstock mm 4000-6000

Column transverse travel mm 4000-12000

Maximum torque of milling spindle

Nm 10000

Spindle speed range (stepless) r/min 2-600

Boring axis feed range (stepless) mm/min 1-1500

Feed range of Ram ( stepless) mm/min 1-3000

Feed range of headstock mm/min 1-6000

Rapid speed of headstock mm/min 6000

Feed range of column (stepless) mm/min 1-6000

Rapid speed of column mm/min 6000

Power of main drive motor KW 70

Overall dimensions(L×W×H) mm 15000×4215×9490Horizontal boring equipment

Looking for ideal Floor-type Milling & Boring Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Floor-type Milling & Boring Machines are quality guaranteed. We are China Origin Factory of Floor Type Milling Boring Machines. If you have any question, please feel free to contact us.
