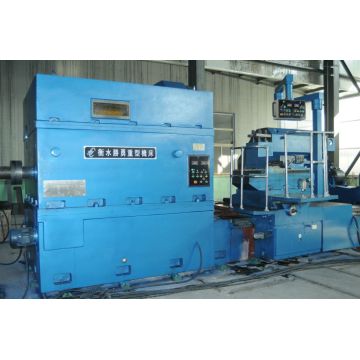

CNC Heavy Duty Horizontal Lathe CK61100

    Unit Price: USD 50000 - 90000 / Set/Sets
    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days

Basic Info

Model No.: CK61100

Type: Horizontal Lathe

Processing Accessory: Centre CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Swivel Diameter On The Bed: 1000mm

Maximum Turning Diameter Over Carriage: 800mm

Maximum Length Of Workpiece: 80dm

Maximum Weight Between Center: 10000kg

Additional Info

Packaging: on request

Productivity: 1 set/3 month

Brand: Shengyong

Transportation: Ocean

Place of Origin: Hengshui City,Hebei Province

Supply Ability: 5 set/month

Certificate: ISO9001

Port: Tianjin

Product Description

CNC Heavy Duty Horizontal Lathe is suit for tapering,curved surface, step shaft and slot. CNC Horizontal Lathe Machine can be equipped with different accessories in order to do grinding, milling and curved surface processing. Some key parts in the heavy duty horizontal CNC lathes like the bed, headbox,knife are using high energy cast iron with good material stability,which can withstand heavy cutting and long-term to maintain accuracy. Spindle adopts high-power motor drive, high horsepower and high torque.Spindle can achieve high precision cutting even in the low speed. The operator panel has been carefully designed,easy to be operated.

CNC Heavy Duty Horizontal Lathe

Technical specification of CNC Heavy Duty Horizontal Lathe CK61100

1 Maximum swivel diameter on the bed 1000mm
2 Maximum turning diameter over carriage 800mm
3 Maximum length of workpiece 50/60/80 dm
4 Maximum weight between center 10 t
5 Diameter of faceplate 1000mm
6 Maximum torque of faceplate 50KN.m
7 Range of spindle speeds r/min 1.5-300 r/min
8 Maximum cutting force of carriage 60 KN
9 Range of feed rates ( long) 2-4500 mm/min
10 Range of feed rates( transverse ) 2-4500 mm/min
11 Rapid speed of of carriage( long) 4500 mm/min
12 Rapid speed of of carriage( transverse ) 4500 mm/min
13 Horizontal travel of tool post 450 mm
14 Travel of tailstock quill 250mm
15 Power of main motor 55KW
16 Machine weight(Approx) 45(5m) t
17 Overall dimensions(L×W×H) 920×270×245 cm

More photos of CNC Horizontal Lathe Machine in workshop

CNC Horizontal Lathe Machine

CNC Horizontal Lathe Machine

CNC Horizontal Lathe Machine

Looking for ideal CNC Heavy Duty Horizontal Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the CNC Horizontal Lathe Machine are quality guaranteed. We are China Origin Factory of Heavy Duty Horizontal CNC Lathes. If you have any question, please feel free to contact us.
