Heavy duty horizontal lathe machine specifications

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 90 Days

Basic Info

Model No.: CK61100D×L

Type: Horizontal Lathe

Processing Accessory: Centre CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Max.swivel Diameter On The Bed: 1000mm

Max.turning Diameter Over Carriage: 1000mm

Bed Ways Type: Integral Four Guideways

Max.length Of Workpiece: 50/60/80/L Dm

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 3 set/year

Certificate: ISO9001

Port: Tianjin

Product Description

Heavy duty horizontal lathe features high technical design and good rigidity,suitable for strong or high-speed machining of large diameter parts, such as large flanges, heavy shaft parts and fittings, steam turbine, mold, auto parts etc. We can offer conventional horizontal lathe and cnc horizontal lathe price. Conventional horizontal lathe is widely used in wind power, oil, chemical, papermaking, textile, mining manufacturing processing industry.

Both conventional horizontal lathe and cnc horizontal lathe adopts modular design, with a large capacity and reasonable structure.CNC horizontal lathe can be tapered, curved surface, step shaft, groove and thread CNC automatic processing.Coupled with different accessories it can be grinding, milling and curved surface processing.

CNC horizontal lathe price

Heavy duty CNC Horizontal Lathe Machine specifications CK61100D×L

Max.swivel diameter on the bed:1000mm

Max.turning diameter over carriage :1000mm

Bed ways type:Integral four guideways

Max.length of workpiece:50/60/80/L dm

Max.weight between center :8/12 ton

Dia of faceplate :800/1000mm

Max.torque of faceplate :20(t=12) KN.m

Range of spindle speeds :1.5-280 r/min

Max cutting force of carriage:40KN

Range of feed rates ( long) :0.1-1000 mm/min

Rapid speed of of carriage( long):4000/3000mm/min

Horizontal travel of tool post:375mm

Travel of tailstock quill:150 mm

Power of main motor:45Kw

Machine weight(Approx):29ton (L=3m)


If interested, please contact us for cnc horizontal lathe price and conventional horizontal lathe.

Conventional horizontal lathe

Conventional horizontal lathe


Conventional horizontal lathe


Product Categories : CNC Heavy Duty Horizontal Lathe

Product Images

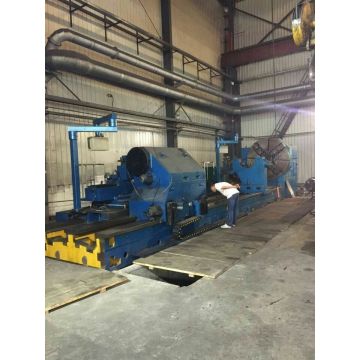

  • Heavy duty horizontal lathe machine specifications

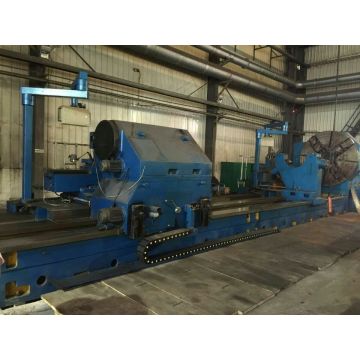

  • Heavy duty horizontal lathe machine specifications

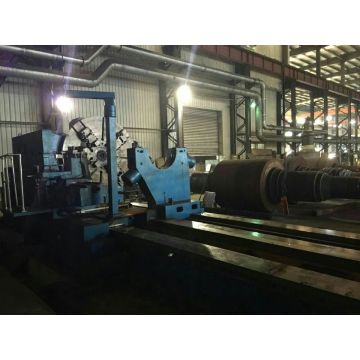

  • Heavy duty horizontal lathe machine specifications

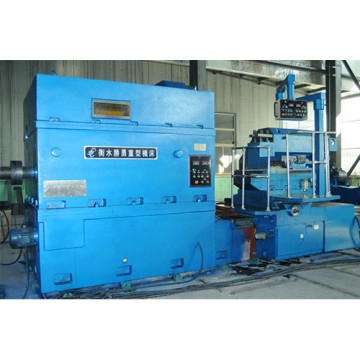

  • Heavy duty horizontal lathe machine specifications

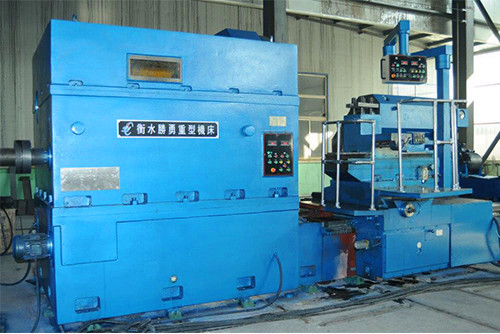

  • Heavy duty horizontal lathe machine specifications
