Good quality Planer type mills machine for sale

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets

Basic Info

Model No.B2016A

BrandShengyong

TypeFrame Planer

Controlling ModeCNC

Automatic GradeSemiautomatic

Power SourceManual

Shaping Machine TypeLarge Type

PrecisionNormal Precision

CertificationISO 9001

ConditionNew

The Distance Between Two Columns1700mm

Elevating Speed Of Crossrail570 Mm / Min

T "-slot Number7

Power Of Main Motor63.3 KW

Additional Info

Packagingon request

Productivity3 set

TransportationOcean

Place of OriginChina

Supply Ability3 set /month

CertificateISO9001

PortTianjin

Payment TypeL/C

IncotermFOB

Product Description

Gantry Planer Milling Machine is equipped with milling head, planner head to achieve planing, milling, grinding and other functions.Planer type mills has the functions of milling and grinding at the same time. Planer Milling Machine can add grinding heads to meet the different requirements of machining.
Planer type mills also known as the gantry planer milling machine, is a type of milling machine with a gantry frame and horizontal long bed. you can use planer milling machine to process the plane and inclined plane.Double column planer miller has the characteristics of sufficient rigidity, high efficiency, convenient operation, simple structure, comprehensive performance and so on.Planer type mills have been welcomed by most users.

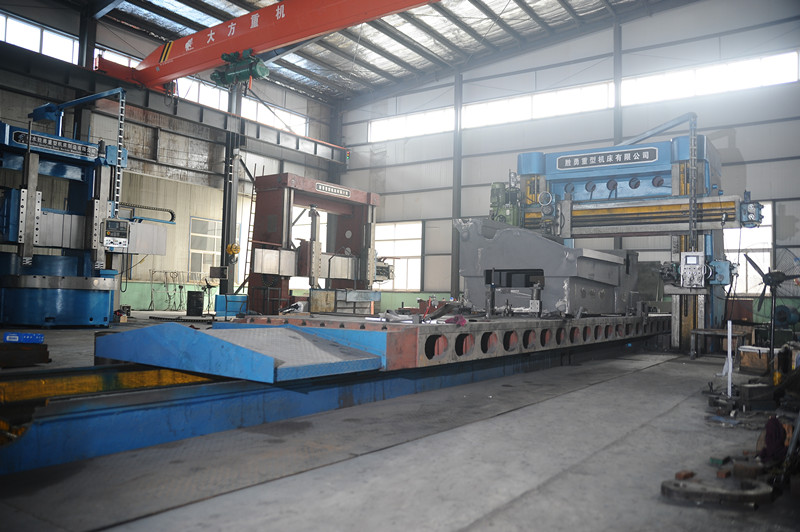

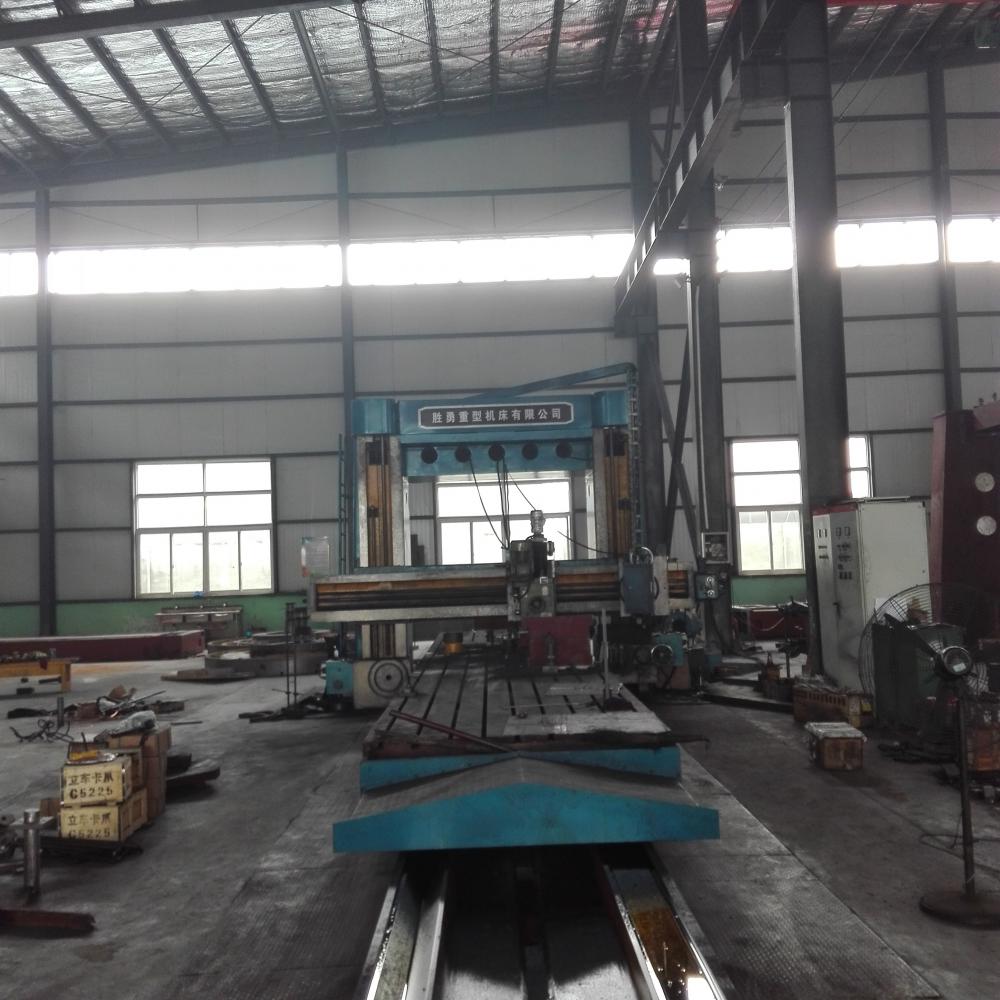

Planer Type Mills

Technical parameters of Planer Type Mills B2016A

Workbench size : Long 4000 mm ,6000mm, 12000mm, 6000mm

Workbench size : Width 1400 mm

Drive motor power (DC) :55 kw

Speed Range : 4-80 mm/min

T "-slot number : 7

The distance between two columns :1700 mm

Elevating speed of crossrail :570 mm / min

Maximum section of planing tool bar :60×60 mm

Power of main motor :63.3 KW

Power supply: 400V,155A

Straightness of machined surface 0.02/1000 mm

Maximum machining dimensions Long: 4000mm, 6000 mm,12000mm,6000 mm

Maximum machining dimensions Width: 1600 mm

Maximum machining dimensions Height: 1250 mm

Maximum machining weight: 10000 kg, 15000kg,2 5000kg,15000kg

Overall dimensions Long: 9000mm,13000mm,25000mm,13000mm

Overall dimensions Width: 4500 mm

Overall dimensions Height: 3800mm

Total weight of machine :40000 kg,46000kg,72000kg, 49000kg

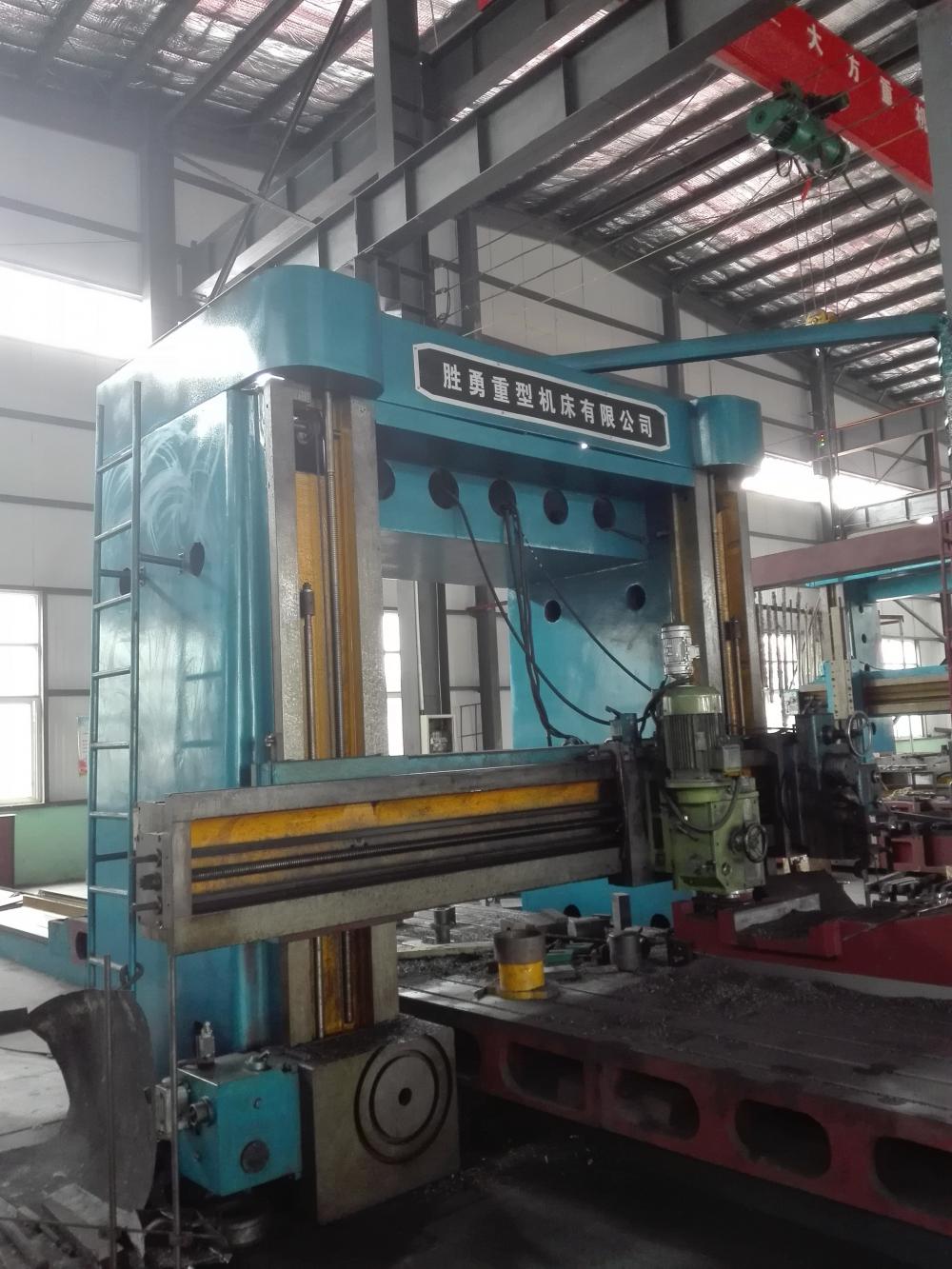

Planer Type MillsPlaner Type Mills

Product Categories : Gantry Planer Milling Machine

Product Images

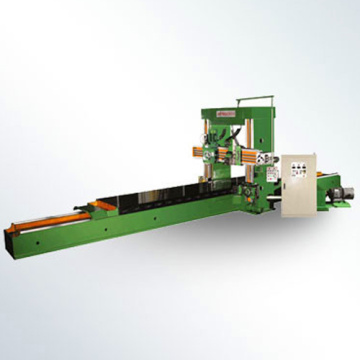

  • Good quality Planer type mills machine for sale

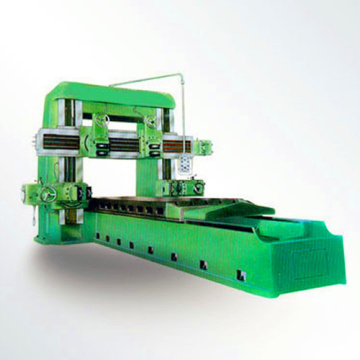

  • Good quality Planer type mills machine for sale
