Home > Products > Horizontal Lathes > CNC hollow Spindle Lathe CW61145

CNC hollow Spindle Lathe CW61145

    Unit Price: 50000~90000 USD
    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days

Basic Info

Model No.: CW61145

Additional Info

Packaging: on request

Productivity: 5 set/month

Brand: Shengyong

Transportation: Ocean

Place of Origin: Hengshui City,Hebei Province

Supply Ability: 5 set/month

Certificate: ISO&CE

Product Description

Product name : CNC hollow Spindle Lathe CW61145

Features of CNC hollow Spindle Lathe CW61145

Bed is adopted high strength low stress advance cast iron pouring,rectangle guideway with well heat stablity,large supporting,cutting stablity.

Special structure design,friction factor of guideway is small,response velocity is rapid,accuracy stablity is well. Cutting rigid is well too.

CNC hollow Spindle Lathe CW61145 model:



hollow spindle lathe

Technical specification of CNC hollow Spindle Lathe CW61145

1 Maximum swivel diameter on the bed 1450 mm

2 Maximum turning diameter over carriage 1100 mm

3 Maximum length of workpiece 80dm

4 Maximum weight between center 18t

5 Diameter of faceplate 1250mm

6 Maximum torque of faceplate 63KN.m

7 Range of spindle speeds 1-200 r/min

8 Maximum cutting force of carriage 60 KN

9 Total cutting force 86 KN

10 Range of feed rates ( long) 0.125-48 mm/min

11 Range of feed rates(Trans ) 0.063-24 mm/min

12 Range of feed rates(longitudinal) 0.031-12 mm/min

13 Rapid speed of of carriage( long) 3000 mm/min

14 Rapid speed of of carriage( Trans) 1500 mm/min


hollow spindle lathe


hollow spindle lathe


hollow spindle lathe

Looking for ideal Hollow Spindle Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the CNC Hollow Spindle Lathe are quality guaranteed. We are China Origin Factory of Hollow Spindle Lathes. If you have any question, please feel free to contact us.

Product Categories : Horizontal Lathes

Product Images

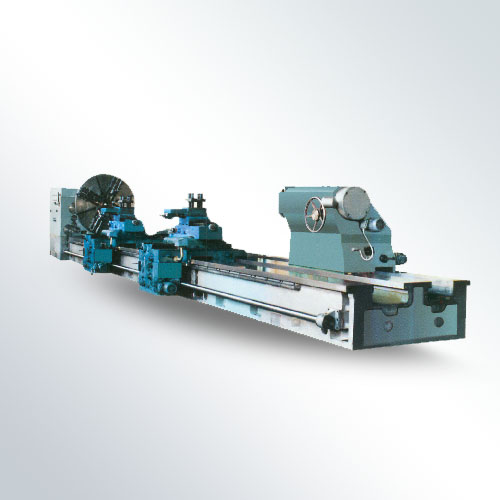

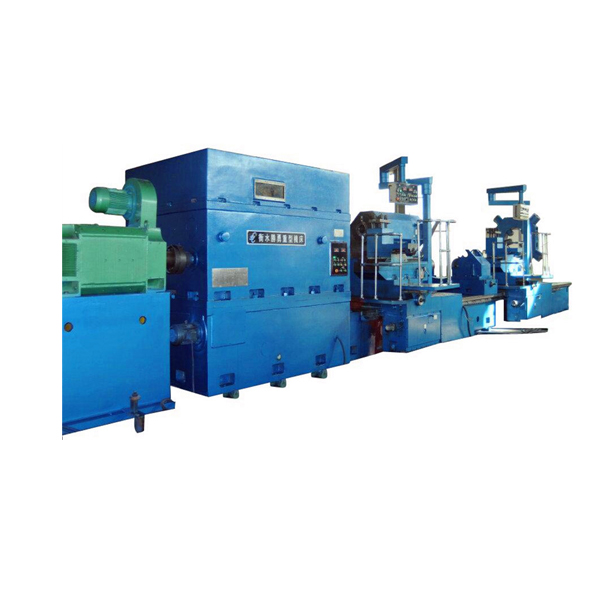

  • CNC hollow Spindle Lathe CW61145
  • CNC hollow Spindle Lathe CW61145
