Horizontal Big Bore Lathe for sale

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CK61100

Type: Horizontal Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Swivel Diameter On The Bed: 1000mm

Maximum Turning Diameter Over Carriage: 800mm

Maximum Length Of Workpiece: 80 Dm

Maximum Weight Between Center: 10 Ton

Additional Info

Packaging: on request

Productivity: 2 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 2 SET /MONTH

Certificate: ISO9001

Product Description

Horizontal Big Bore Lathe are appropriate for a spread of turned parts turning. Horizontal Big Bore Lathe can be also appropriate for rough and finishing method of metal metals, nonferrous metals and a few non-metallic elements of the cylindrical surface, conic surface, face, rotary surface, cut slot, thread, drilling etc.

Horizontal Big Bore Lathe

Technical specification of CNC China Horizontal Big Bore Lathe CK61100

1 Maximum swivel diameter on the bed 1000mm

2 Maximum turning diameter over carriage 800mm

3 Maximum length of workpiece 50/60/80 dm

4 Maximum weight between center 10 t

5 Diameter of faceplate 1000mm

6 Maximum torque of faceplate 50KN.m

7 Range of spindle speeds r/min 1.5-300 r/min

8 Maximum cutting force of carriage 60 KN

9 Range of feed rates ( long) 2-4500 mm/min

10 Range of feed rates( transverse ) 2-4500 mm/min

11 Rapid speed of of carriage( long) 4500 mm/min

12 Rapid speed of of carriage( transverse ) 4500 mm/min

13 Horizontal travel of tool post 450 mm

14 Travel of tailstock quill 250mm

15 Power of main motor 55KW

16 Machine weight(Approx) 45(5m) t

17 Overall dimensions(L×W×H) 920×270×245 cm

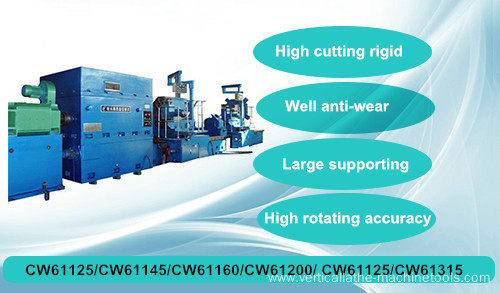

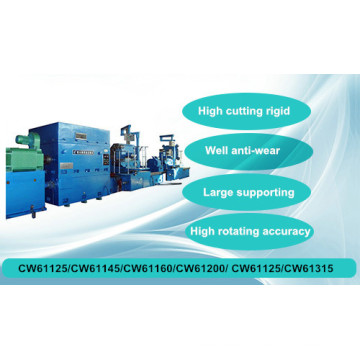

Photo of China Horizontal Big Bore Lathe

Horizontal Big Bore LatheHorizontal Big Bore LatheHorizontal Big Bore Lathe

Looking for ideal Horizontal Big Bore Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Big Bore Lathe are quality guaranteed. We are China Origin Factory of Big Bore Lathe for Sale. If you have any question, please feel free to contact us.
