Large diameter horizontal lathe machine for metal turning

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CK61125

Type: Horizontal Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: Artificial

Automatic Grade: Semiautomatic

Setting Mode: Floor-type

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Swivel Diameter On The Bed: 1250mm

Maximum Weight Between Center: 20ton

Diameter Of Faceplate: 1250mm

Maximum Turning Diameter Over Carriage: 1000mm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

Large diameter horizontal lathe machines are suitable for turning external cylindrical, inner hole and end face. In addition it can perform drilling, boring and groove broaching.

Features of Large diameter horizontal lathe machines

1 We adopt super audio quenched and accurately grinded workbench.

2 Spindle system has great rigidity, good accuracy, strong cutting force.

3 Main drive gears are super audio quenching and accurately grinding with low working noise.

Large diameter Horizontal Lathe Machine

Large Diameter Turning

Technical specification of CNC Large diameter horizontal Lathe Machine CK61125

1 Maximum swivel diameter on the bed 1250mm

2 Maximum turning diameter over carriage 1000mm

3 Maximum length of workpiece 60/80/100 dm

4 Maximum weight between center 20 t

5 Diameter of faceplate 1250mm

6 Maximum torque of faceplate 63KN.m

7 Range of spindle speeds r/min 1.25-250r/min

8 Maximum cutting force of carriage 60 KN

9 Range of feed rates ( long) 2-4500 mm/min

10 Range of feed rates( transverse ) 2-4500 mm/min

11 Rapid speed of of carriage( long) 4500 mm/min

12 Rapid speed of of carriage( transverse ) 4500 mm/min

13 Horizontal travel of tool post 525 mm

14 Travel of tailstock quill 250mm

15 Power of main motor 55KW

16 Machine weight(Approx) 70 t

17 Overall dimensions(L×W×H) 1250×490×225 cm

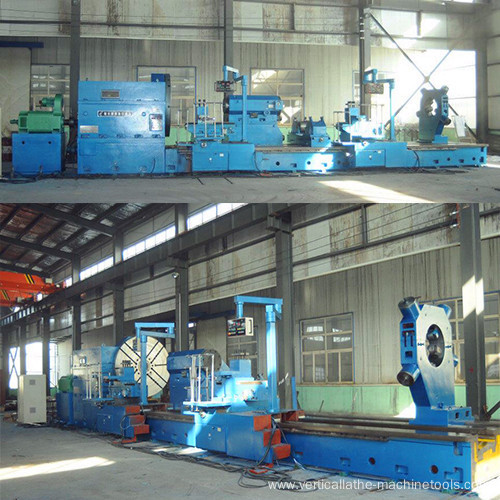

Photo of Large diameter horizontal lathe machine

Large Diameter TurningLarge Diameter Turning

Looking for ideal Large Diameter Lathe Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Large Diameter Metal Turning are quality guaranteed. We are China Origin Factory of Large Diameter Turning. If you have any question, please feel free to contact us.
