Heavy Gap Bed engine Lathe Machine

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.:  CW61315

Type: Horizontal Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Swivel Diameter On The Bed: 3150mm

Maximum Turning Diameter Over Carriage: 2500mm

Maximum Length Of Workpiece: 140 Dm

Maximum Weight Between Center: 80dm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

Heavy duty Gap Bed engine Lathe Machine is mainly used to produce large-diameter tire moulds ,large-diameter flanges, varied valves and pipelines, pressure vessels, propellor, steamer machine accessories and alternative workpieces.

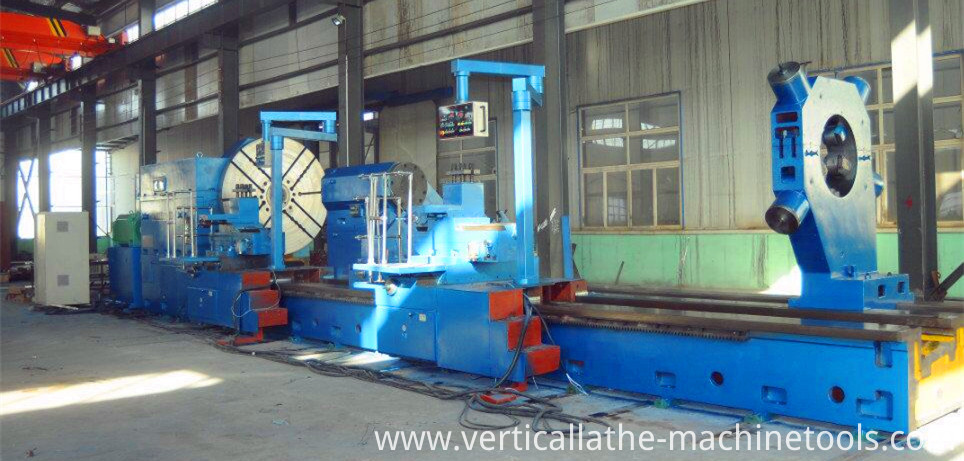

Gap Bed Lathe Machine

Technical specification of Horizontal GAP BED ENGINE LATHE Machine CW61315

1 Maximum swivel diameter on the bed 3150 mm

2 Maximum turning diameter over carriage 2500 mm

3 Maximum length of workpiece 140 dm

4 Maximum weight between center 80t

5 Diameter of faceplate 2600mm

6 Maximum torque of faceplate 160KN.m

7 Range of spindle speeds 0.5-100 r/min

8 Maximum cutting force of carriage 90 KN

9 Total cutting force 160 KN

10 Range of feed rates ( long) 0.265-500 mm/min

11 Range of feed rates(Trans ) 0.106-200 mm/min

12 Range of feed rates(longitudinal) 0.053-100 mm/min

13 Rapid speed of of carriage( long) 3000 mm/min

14 Rapid speed of of carriage( Trans) 1200 mm/min

15 Scale of tool bar section 100×100mm

16 Power of main motor DC:125KW

17 Machine weight(Approx) 138 T

18 Overall dimensions(L×W×H) 2328×894×407cm

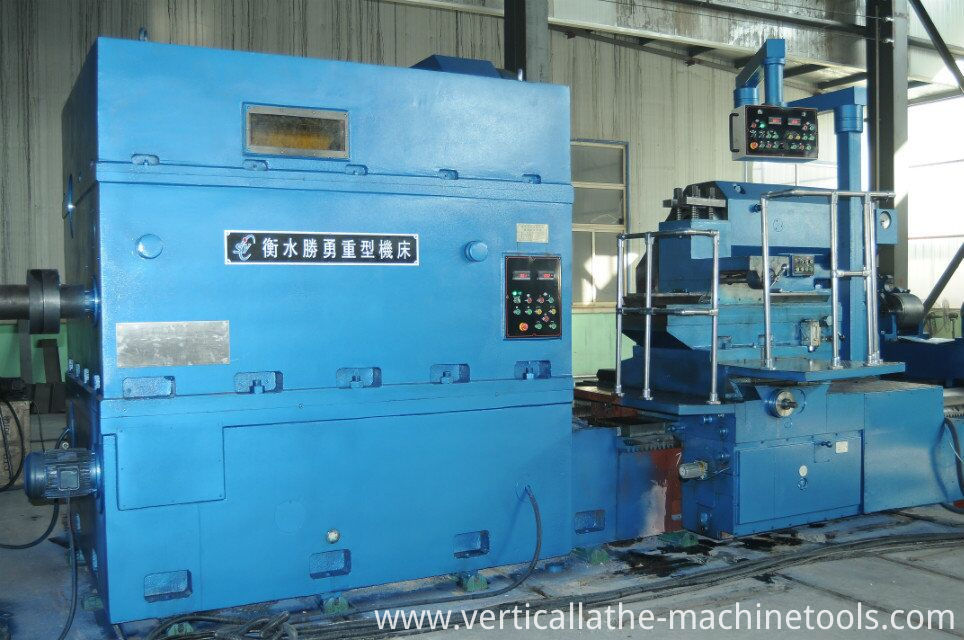

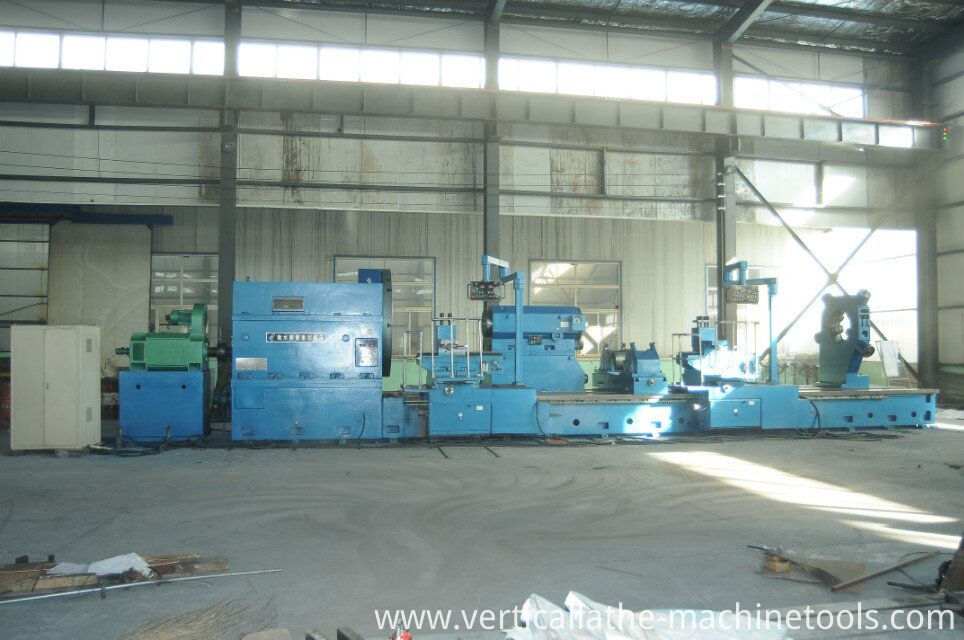

Photo of Horizontal GAP BED ENGINE LATHE Machine

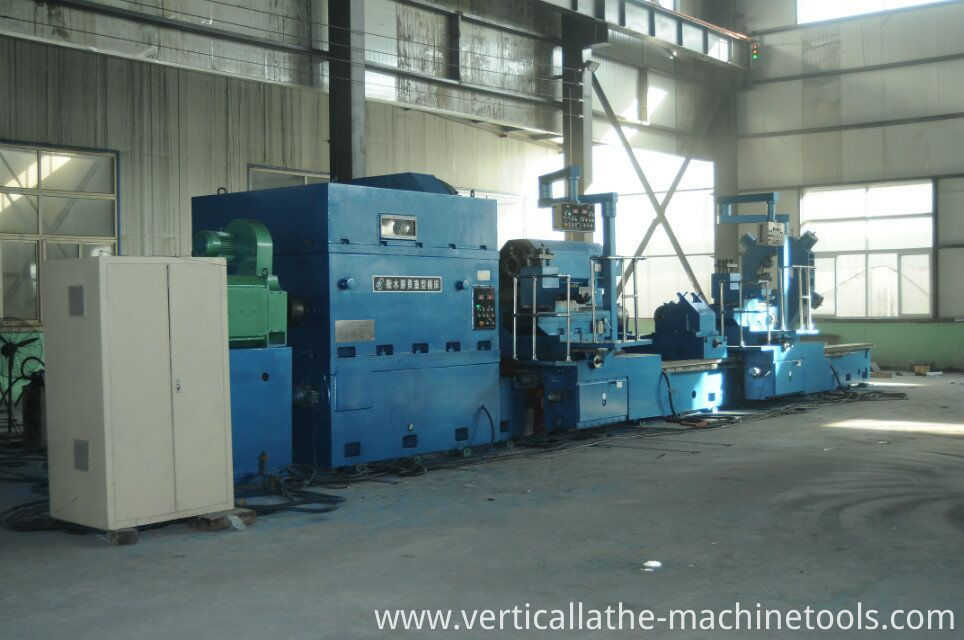

Gap Bed Lathe Machine

Looking for ideal Gap Bed Lathes Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Gap Bed Lathe are quality guaranteed. We are China Origin Factory of Gap Bed Lathe Machine. If you have any question, please feel free to contact us.

Product Categories : Horizontal Lathes

Product Images

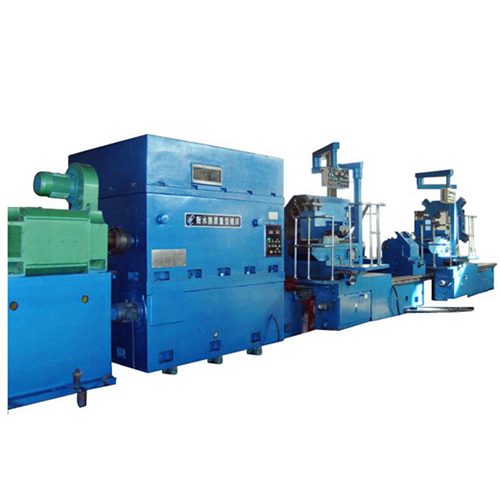

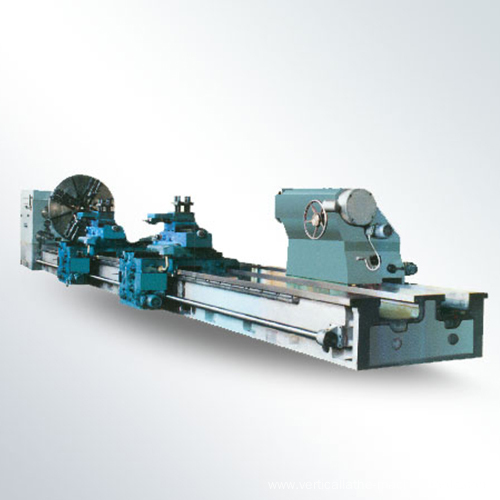

  • Heavy Gap Bed engine Lathe Machine

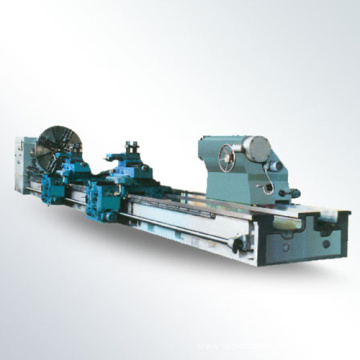

  • Heavy Gap Bed engine Lathe Machine
