Home > Products > Lathe Machine > Cheap price Vertical lathe machine operation

Cheap price Vertical lathe machine operation

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5263

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 6300mm

Maximum Height Of Workpiece: 4150mm

Maximum Weight Of Workpiece: 100ton

Table Diameter: 5750 Mm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

Vertical Lathe Machine has a a wide range of applications with high torque and high rigidity with easy operation.Vertical lathe operations can be utilized in milling, drilling, expanding, boring, tapping, tapping of valves, cams, plates and cabinets of automobile, motorcycle, machine, sewing machine, motor, instrument and other industries.Vertical Lathe Machine operation is especially for the processing of various shapes, can be used in small quantities of multi-species processing production. It can also enter the automatic production line.

Vertical lathe operation

Technical specification of Cheap price vertical lathe operation C5263

1 Maximum turning diameter 6300 mm

2 Maximum Height of workpiece 3150/3650/4150 mm

3 Maximum Weight of workpiece 50/80/100 t

4 Table diameter 4500/5750 mm

5 Speed range of table 0.5-50r/min

6 Maximum torque 1 60KN/min

7 Vertical Travel of tool post 1600 mm

8 Horizontal travel of tool post 3415 mm

9 Rotation angle of tool post -15°-±30°

10 Power of main motor 75kw

11 Overall dimensions(L×W×H) 12230×6800×6800 mm

12230×6800×7300 mm

12230×6800×7800 mm

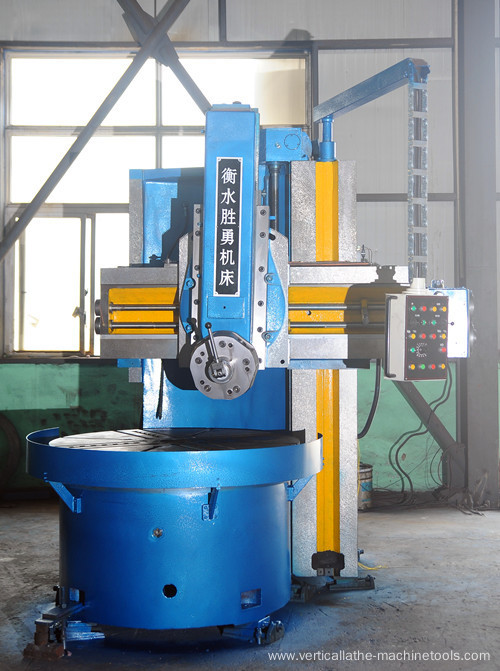

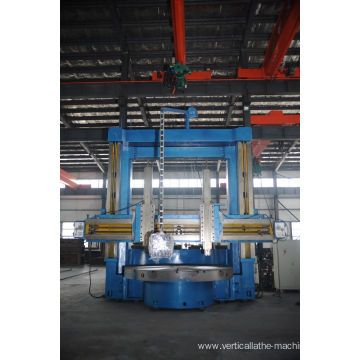

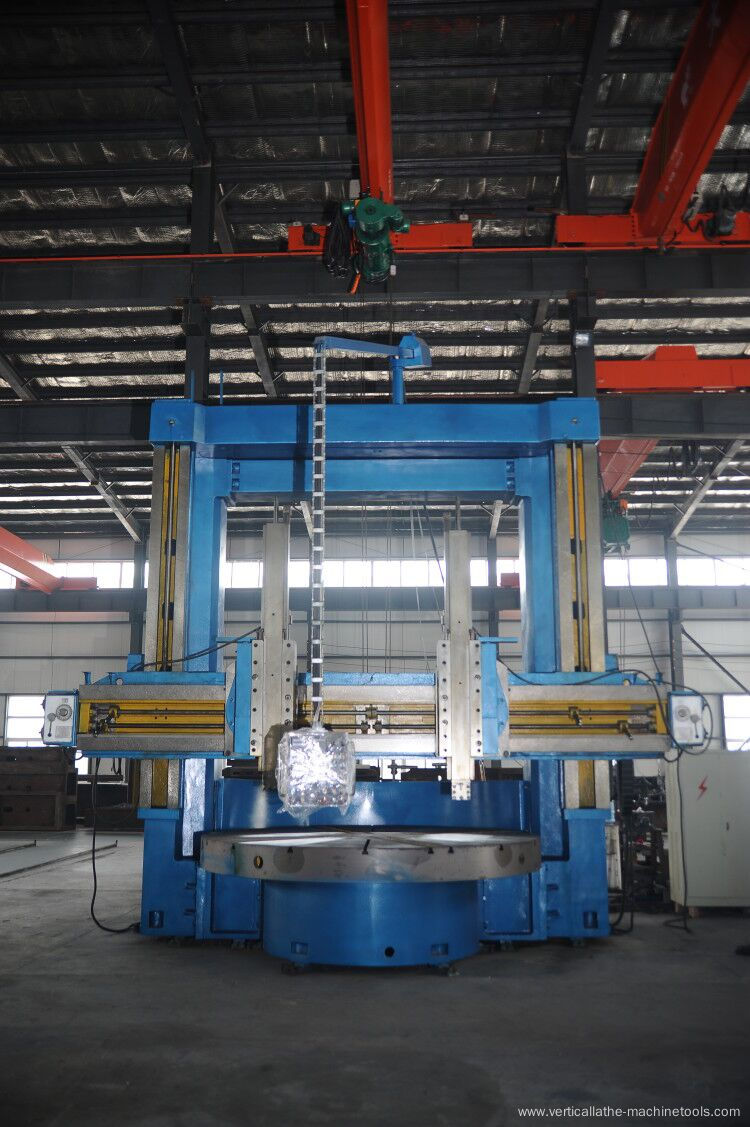

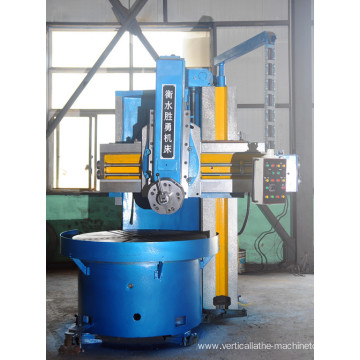

Photo of Cheap price vertical lathe operation

Cheap Lathes for SaleCheap Lathes for SaleCheap Lathes for SaleCheap Lathes for SaleCheap Lathes for Sale

Looking for ideal Vertical Lathe Operation Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Lathe Operations are quality guaranteed. We are China Origin Factory of Vertical Lathe Machine Operation. If you have any question, please feel free to contact us.

Product Categories : Lathe Machine

Product Images

  • Cheap price Vertical lathe machine operation
  • Cheap price Vertical lathe machine operation
  • Cheap price Vertical lathe machine operation
  • Cheap price Vertical lathe machine operation
