large cnc vertical lathe machine equipment

The large cnc lathe is single column large Vertical Lathe Machine,designed on high torque cutting, can realize high speed and high precision cutting. Large vertical Lathe Machine can achieve two axis linkage, cutting cylindrical surface, conical surface, arc surface and any combination surfaces.

Large vertical lathe machine is mainly used for high-speed steel, carbide cutting tools and ceramic cutting tools, for ferrous metals, non-ferrous metals and parts of non-metallic parts inside and outside the cylindrical surface, internal and external conical surface, arc surface and the complex surface rough finishing. Large cnc lathe is with high precision,sufficient rotation rigidity and thermal stability.Large vertical lathe machine should be placed in the constant temperature environment, away from the vibration and electromagnetic interference. To ensure the rigidity and stability of machine ,castings are treated after artificial aging and vibration aging.

Technical specification of large vertical lathe machine  C5123

1 Table diameter 2000mm

2 Maximum turning diameter 2300mm

3 Maximum height of workpiece 1300mm

4 Maximum weight of workpiece 8 t

5 Speed change of table 2.5-80 r/min

6 Working table Step of rotation speed 16

7 Feed rates 0.8-86 mm/min

8 Step 12

9 Horizontal travel of tool post 1250mm

Vertical travel of tool post 915mm

10 Horizontal travel of side cutter bar 650mm

Vertical travel of side cutter bar 1000mm

11 Crossrail travel 750mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 30 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Machine weight 19.5 t

16 Overall dimensions(L×W×H) 3300×3280×4000 mm

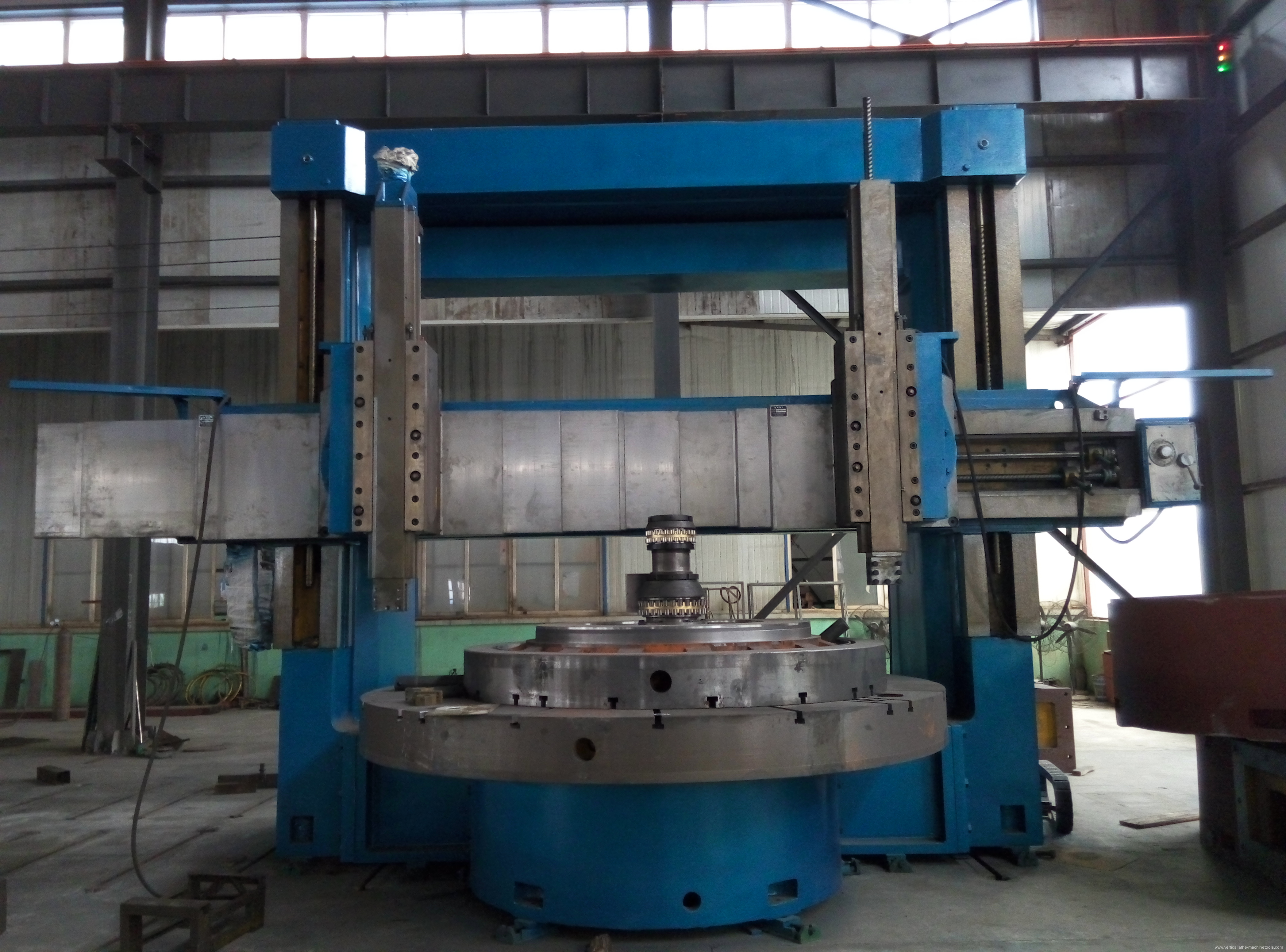

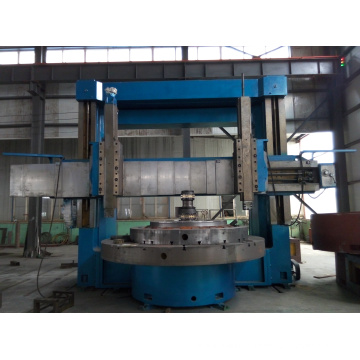

Photo of large vertical lathe machine

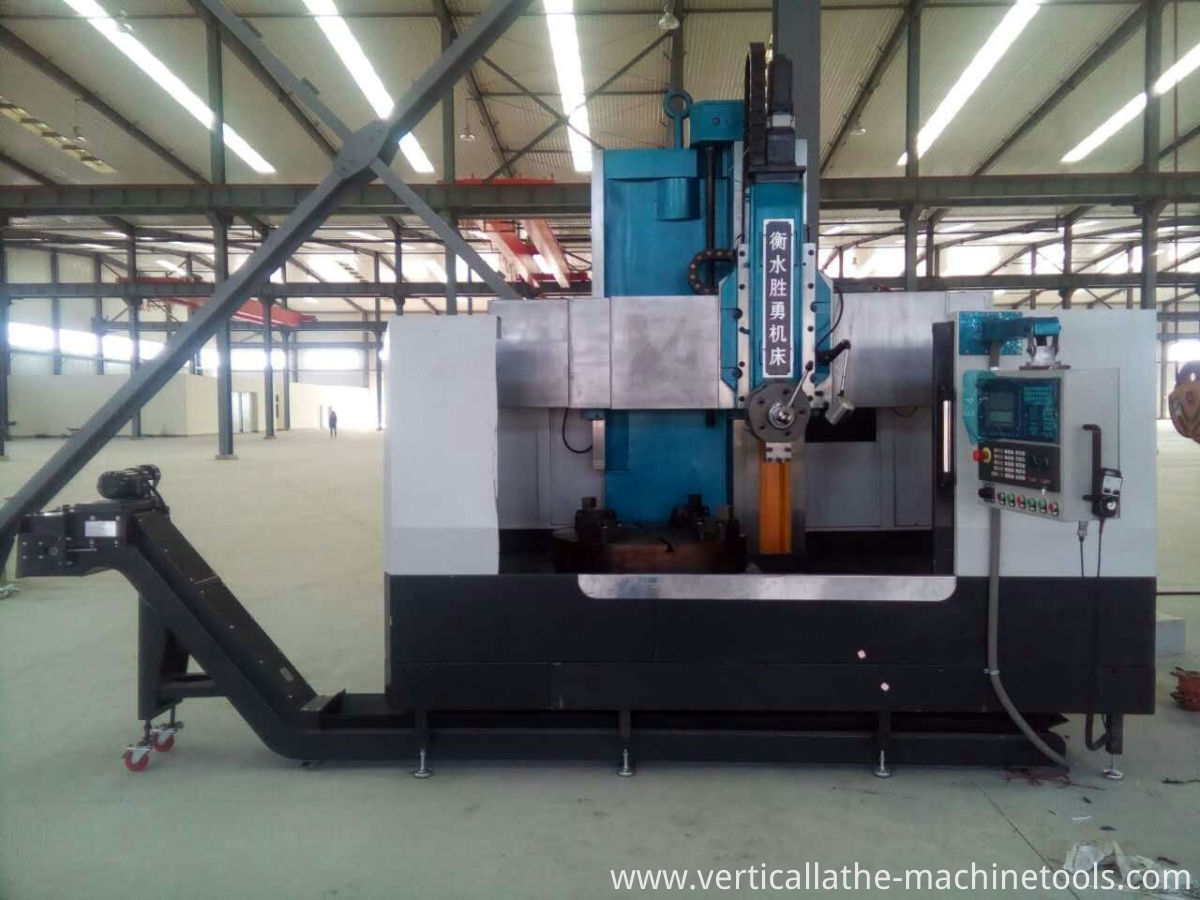

Other large vertical lathe machine
