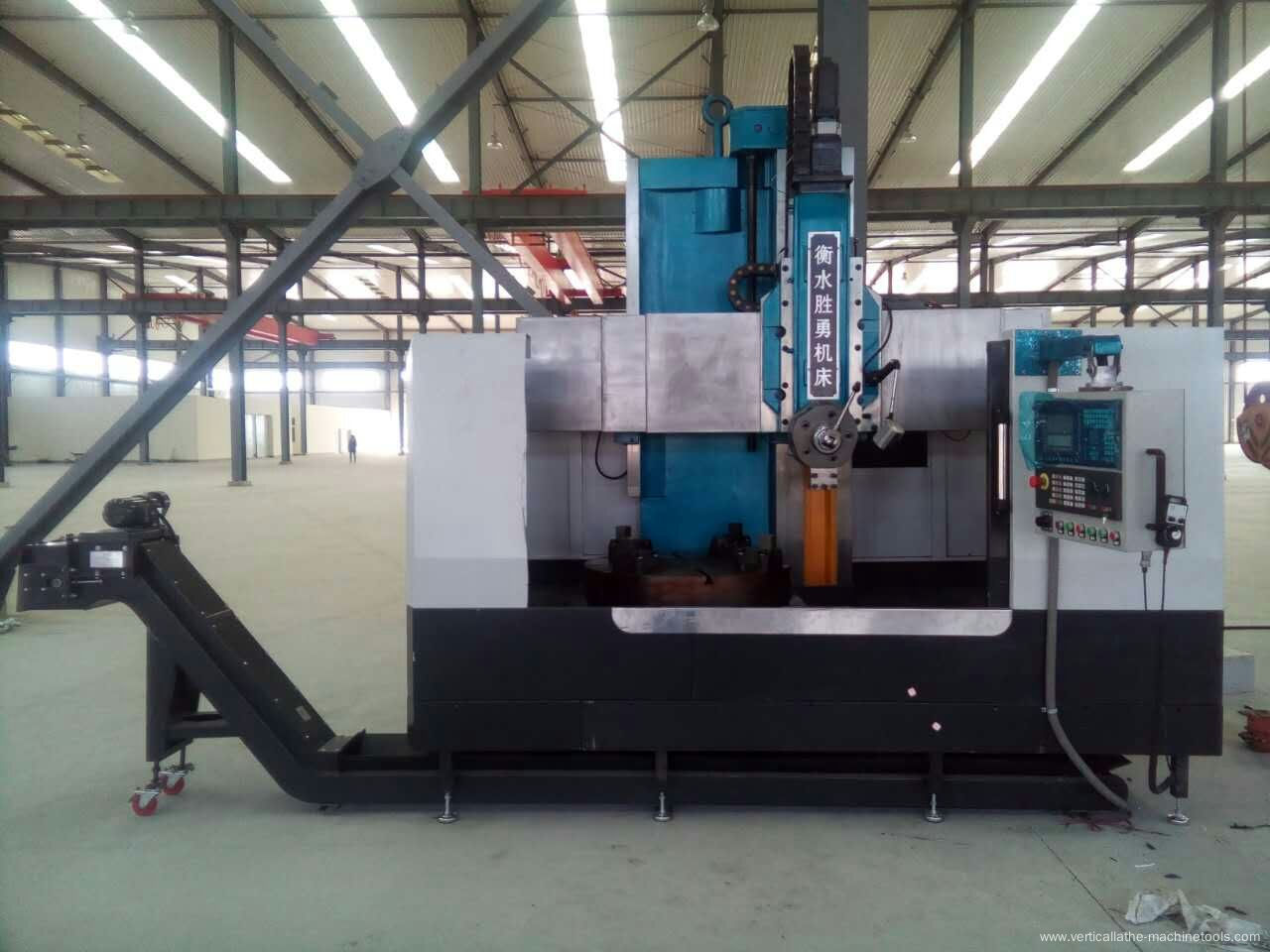

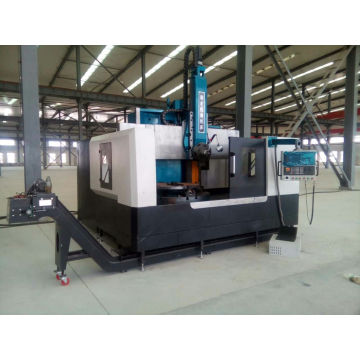

CNC Vertical lathe machine equipment

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5118

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: Artificial

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 1400mm

Maximum Turning Diameter: 1800mm

Maximum Height Of Workpiece: 1000mm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

Vertical lathe equipment(multifunction) is designed for processing disc type pump valve products. Cnc Vertical Lathe equipment has fast processing efficiency,,high automatic and full digital control. CNC Vertical Lathes equipment is two coordinate (vertical Z X) two linkage control Lathe Machine. The lathe machine can be turning face, drilling,conical surface ,circular surface and taper thread. Vertical lathe equipments can be equipped with electric turret or special tool holder.

Structural features vertical lathe equipments:

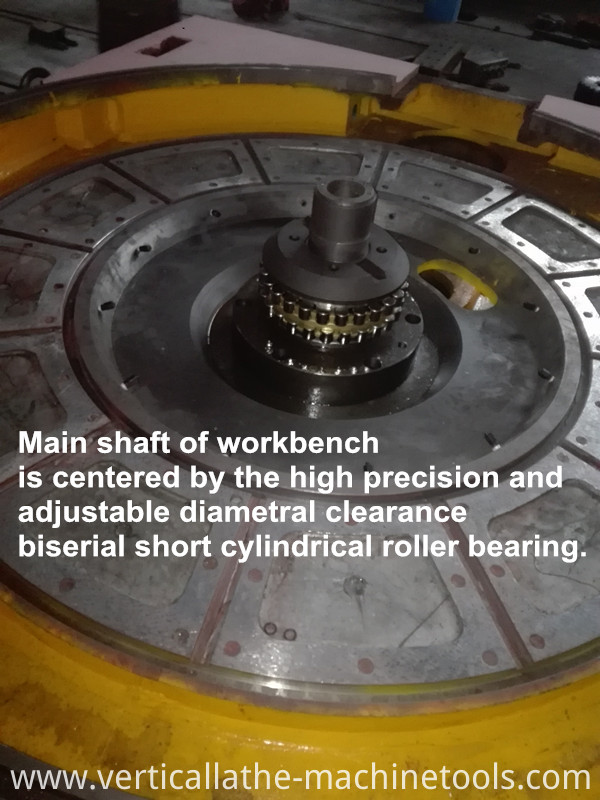

1. The workbench and the workbench base adopt the whole cast symmetry structure. The spindle bearing adopts the high precision double row short cylindrical roller bearing. The worktable guide adopts the constant current static pressure guide rail and uses the constant temperature cooling. ensuring the machine has a high rotation accuracy and sufficient stiffness.

2 The column adopts gantry frame closed structure, through the finite element analysis and calculation to make the structure size and force state reach the best.

Vertical lathe equipment

Technical specification of CNC Vertical Lathe Machine equipment C5118

1 Table diameter 1400 mm

2 Maximum turning diameter 1800 mm

3 Maximum height of workpiece 1000 mm

4 Maximum weight of workpiece 5 t

5 Speed change of table 5-160 r/min

6 Working table Step of rotation speed 16

7 Feed rates 0.8-86 mm/min

8 Step 12 step

9 Horizontal travel of tool post 1000 mm

Vertical travel of tool post 800 mm

10 Horizontal travel of side cutter bar 630 mm

Vertical travel of side cutter bar 900 mm

11 Crossrail travel 650 mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 30 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Machine weight 17.5 t

16 Overall dimensions(L×W×H) 2900×2900×3800 mm

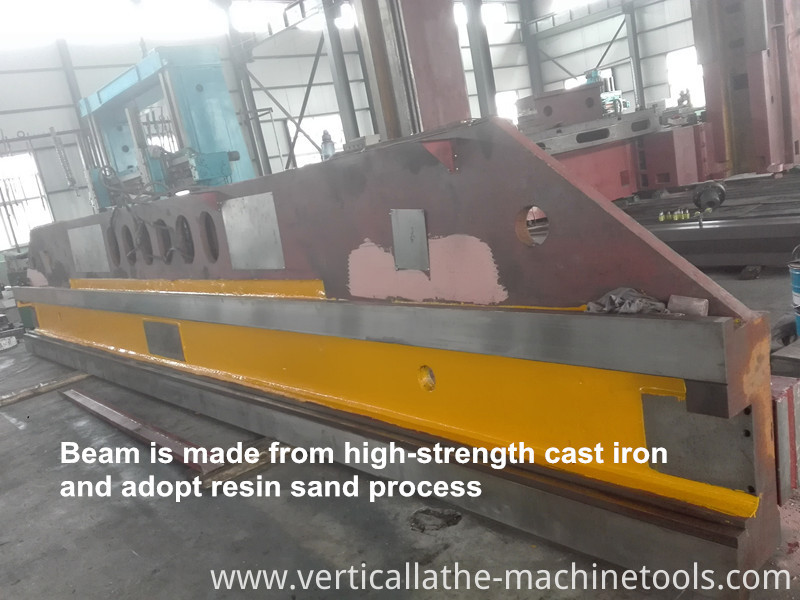

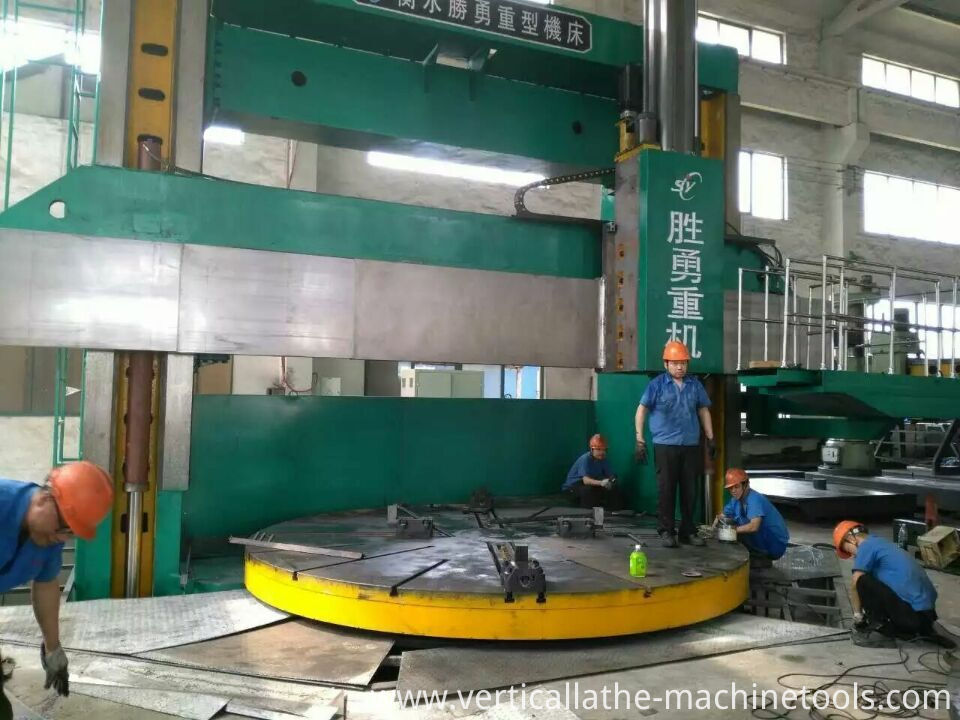

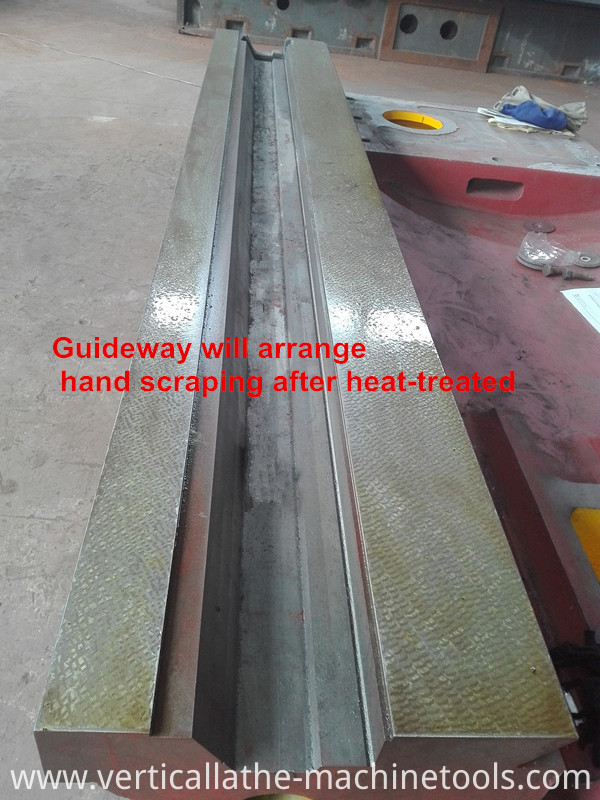

Photo parts of vertical lathe equipment

Vertical lathe equipmentVertical lathe equipmentVertical lathe equipment

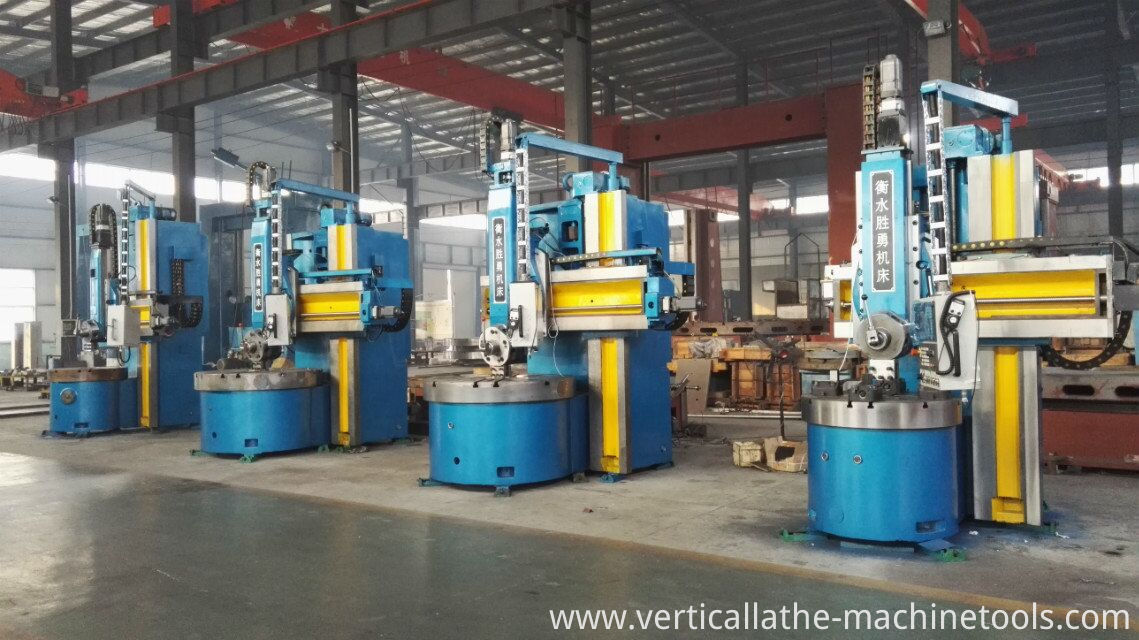

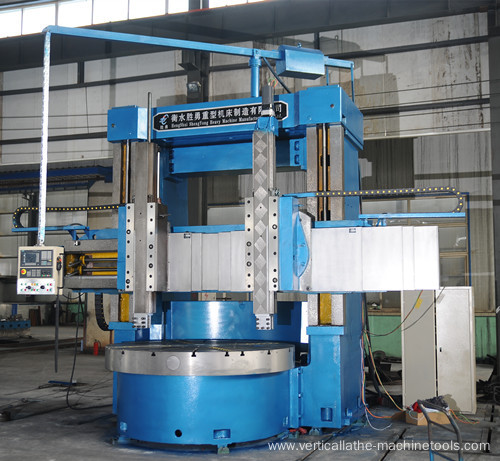

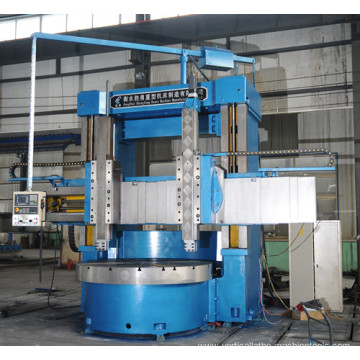

Recommend cnc vertical lathe equipments

Vertical lathe equipmentVertical lathe equipment

Looking for ideal Vertical Lathe Equipment Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Lathes Equipment are quality guaranteed. We are China Origin Factory of Vertical Lathe Equipments. If you have any question, please feel free to contact us.

Product Categories : Lathe Machine

Product Images

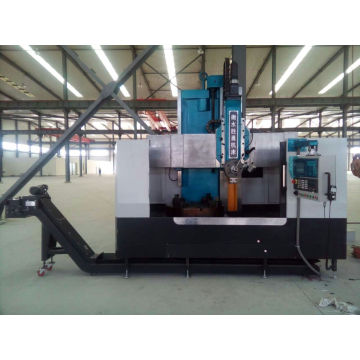

  • CNC Vertical lathe machine equipment

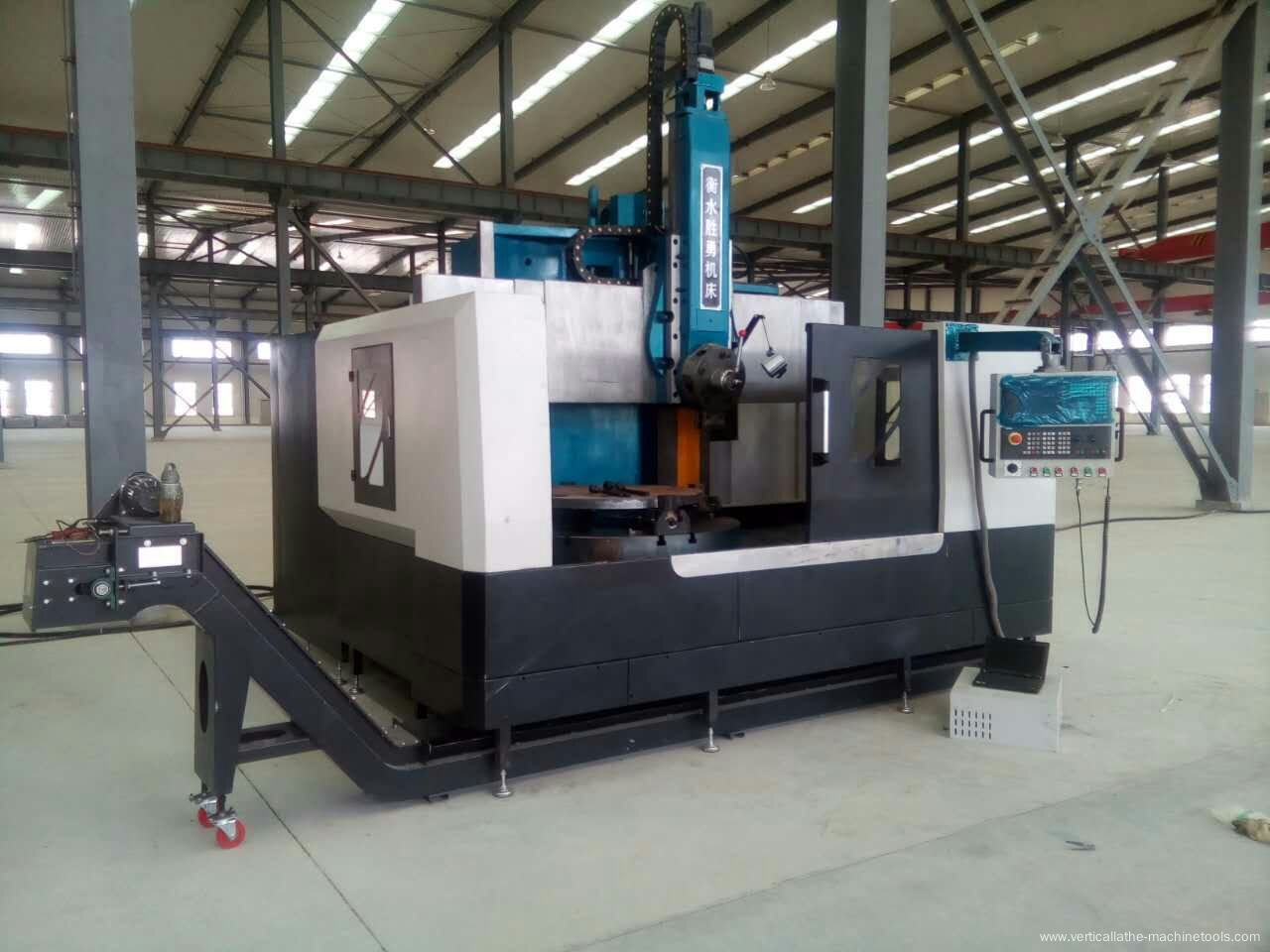

  • CNC Vertical lathe machine equipment

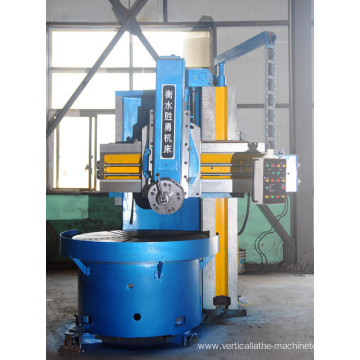

  • CNC Vertical lathe machine equipment
