CNC Metal Vertical Lathe Machine Price List

We are cnc Metal Lathe Machine manufacture. This CNC metal lathe is CNC single column vertical lathe, the CNC metal lathe can be the largest turning diameter Ф2600 mm, the maximum processing Height 1300mm with maximum workpiece weight of 10 ton. Single columncnc metal lathe can conduct tough and finishing of complex rough surface ,but also for slotting, cutting, drilling and other processing. We can offer our clients with best CNC Lathe Machine price.

Technical specification of  CNC Metal Vertical Lathe Machine Price C5126

1 Table diameter 2300mm

2 Maximum turning diameter 2600mm

3 Maximum Height of workpiece 1300mm

4 Maximum Weight of workpiece 10t

5 Speed range of table 2.5-80r/min

6 Working table Step of rotation speed 16

7 Range of feed rates 0.8-86 mm/min

8 Step 12

9 horizontal travel of vertical slide 1600 mm

Vertical travel of vertical slide 915 mm

10 Horizontal travel of side tool post 750 mm

Vertical travel of side tool post 900 mm

11 Crossrail travel 850 mm

12 Maximum size of tool bar section 35×45 mm

13 Power of main motor 37 kw

Rotating Speed 1470 r/min

14 Power of feed motor 1.3/1.7 kw

Rotating Speed 940/1440 r/min

15 Machine weight(Approx) 19.5 t

16 Overall dimensions(L ×W×H) 3450x3430x4100 mm

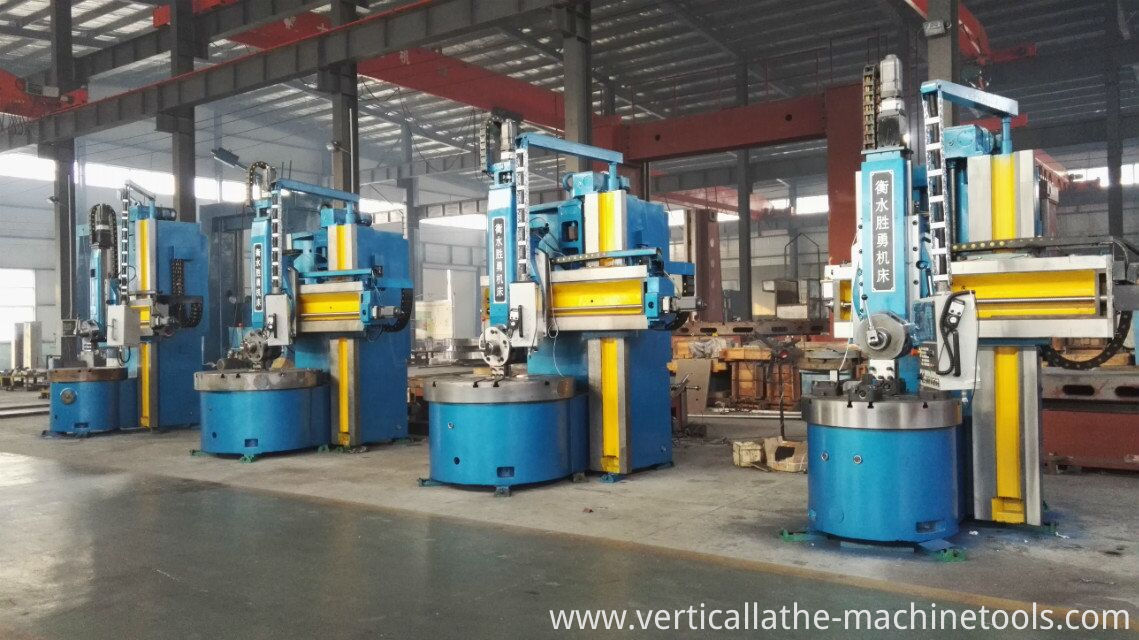

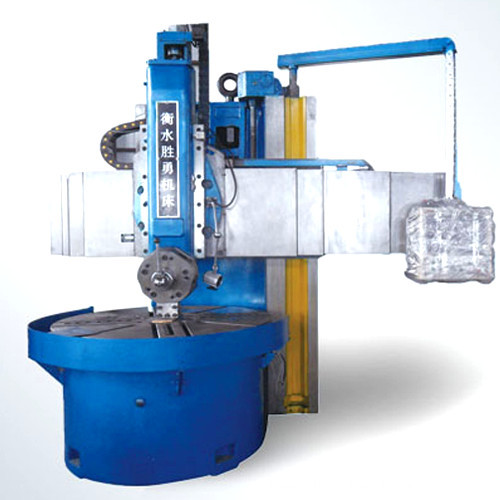

Photo of vertical type cnc  metal lathe

Recommend vertical type cnc Lathe Machine price
