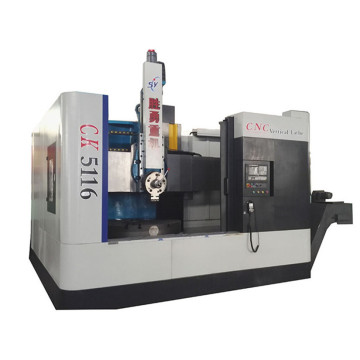

CNC vertical machining machine tools

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CK5125

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 2300mm

Maximum Turning Diameter: 2500mm

Maximum Height Of Workpiece: 1350mm

Maximum Weight Of Workpiece: 10ton

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Single column vertical lathe CK5125 is a kind of cnc lathe tools.The CNC Lathe Machine tools not only have the function of rough and fine turning of workpiece hole, cylindrical, face and other functions, as well as processing large cone, any curved surface function. The CNC machine tools have the vertical and horizontal two-axis linkage feeding function.

CNC machine tools are changed speed by two gears mechanical speed to let table achieve stepless speed regulation.The CNC lathe tools adopt the hanging button station, the feeding system is equipped with the handheld operation unit, the operation is convenient and pleasant.
CNC machine tools are especially suitable for the processing of parts such as wheel drums and discs. CNC Lathe Machine tools can be configured according to customer special requirements,such as electric knife, chip conveyor and shield.

CNC Vertical Lathe Machine tools for sale

CNC machine tools

Technical specification of vertical type cnc machine tools CK5125

1 Table diameter 2300 mm

2 Maximum turning diameter 2500 mm

3 Maximum height of workpiece 1350 mm

4 Maximum weight of workpiece 10 t

5 Speed change of table 2.5-80 r/min

6 Rotation speed of work table 16

7 Feed rates 0-1000 mm/min

8 Step stepless

9 Horizontal travel of tool post 1600 mm

Vertical travel of tool post 915 mm

10 Horizontal travel of side cutter bar 750 mm

Vertical travel of side cutter bar 1100 mm

11 Crossrail travel 850 mm

12 Maximum section scale of tool bar 35×45 mm

13 Power of main motor 45 kw

revolutions 1470r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Rapid travelling speed of tool post 2000 mm/min

16 Machine weight 23 t

17 Overall dimensions(L×W×H) 3450×3430×4100 mm
