Cnc vertical Lathe Machine Parts and attachments

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5232

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 3150mm

Maximum Height Of Workpiece: 3000mm

Maximum Weight Of Workpiece: 20ton

Table Diameter: 2830 Mm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

CNC Vertical Lathe Machine can be machining internal and external cylindrical surface, inside and outside the cone, round,surface and the complex rough surface. We use advanced Lathe Machine attachments and CNC lathe accessories at home and abroad to meet the strong cutting, and table overloading.Column is a overall cross-ribbed closed thermal symmetric structure. the material is made of high strength and low stress cast iron. Column is installed on the worktable base. The machine adopts the hanging button station , the feed system is equipped with a hand-held operation unit, easy to operate. Such as other cnc lathe accessories, boring and milling, grinding, cooling and other functional components can be supplied based on special needs.

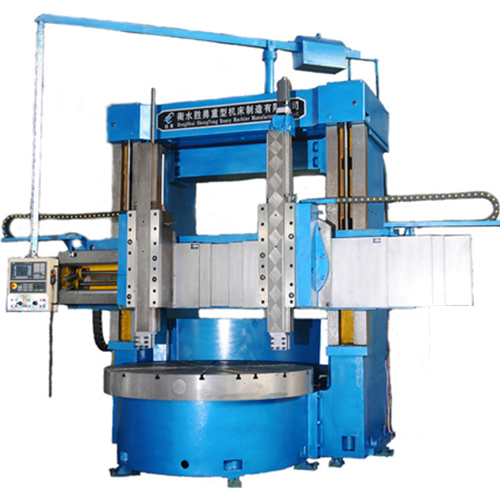

Double column Vertical Lathe Machine

Cnc Lathe Machine Parts

Technical specification of Double column Cnc Vertical Lathe Machine Parts and attachments C5232

1 Maximum turning diameter 3150 mm

2 Maximum Height of workpiece 1600/2000/2200/2500/3000 mm

3 Maximum Weight of workpiece 10/20 t

4 Table diameter 2830 mm

5 Speed range of table 2-63 r/min

6 Maximum torque 63 KN/min

7 Vertical Travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 1735 mm

9 Rotation angle of tool post ±30° degree

10 Power of main motor 55 kw

11 Machine weight About 36-50 t

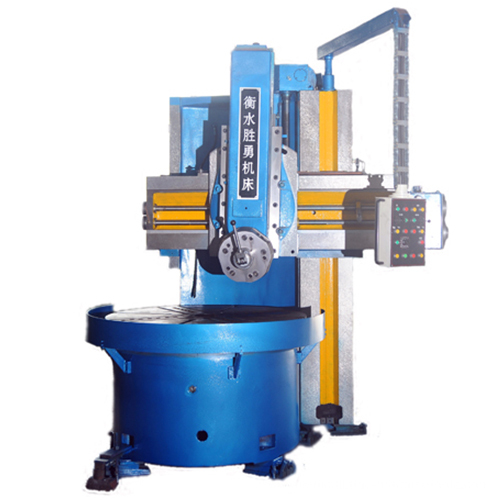

Photo of Cnc vertical Lathe Machine Parts and attachments

Cnc Lathe Machine Parts Cnc Lathe Machine Parts Cnc Lathe Machine Parts Cnc Lathe Machine Parts

Recommend Cnc vertical Lathe Machine Parts and attachments

Cnc Lathe Machine PartsCnc Lathe Machine Parts

Looking for ideal CNC Lathe Machine Parts Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the CNC Lathe Accessories are quality guaranteed. We are China Origin Factory of Lathe Machine Attachments. If you have any question, please feel free to contact us.
