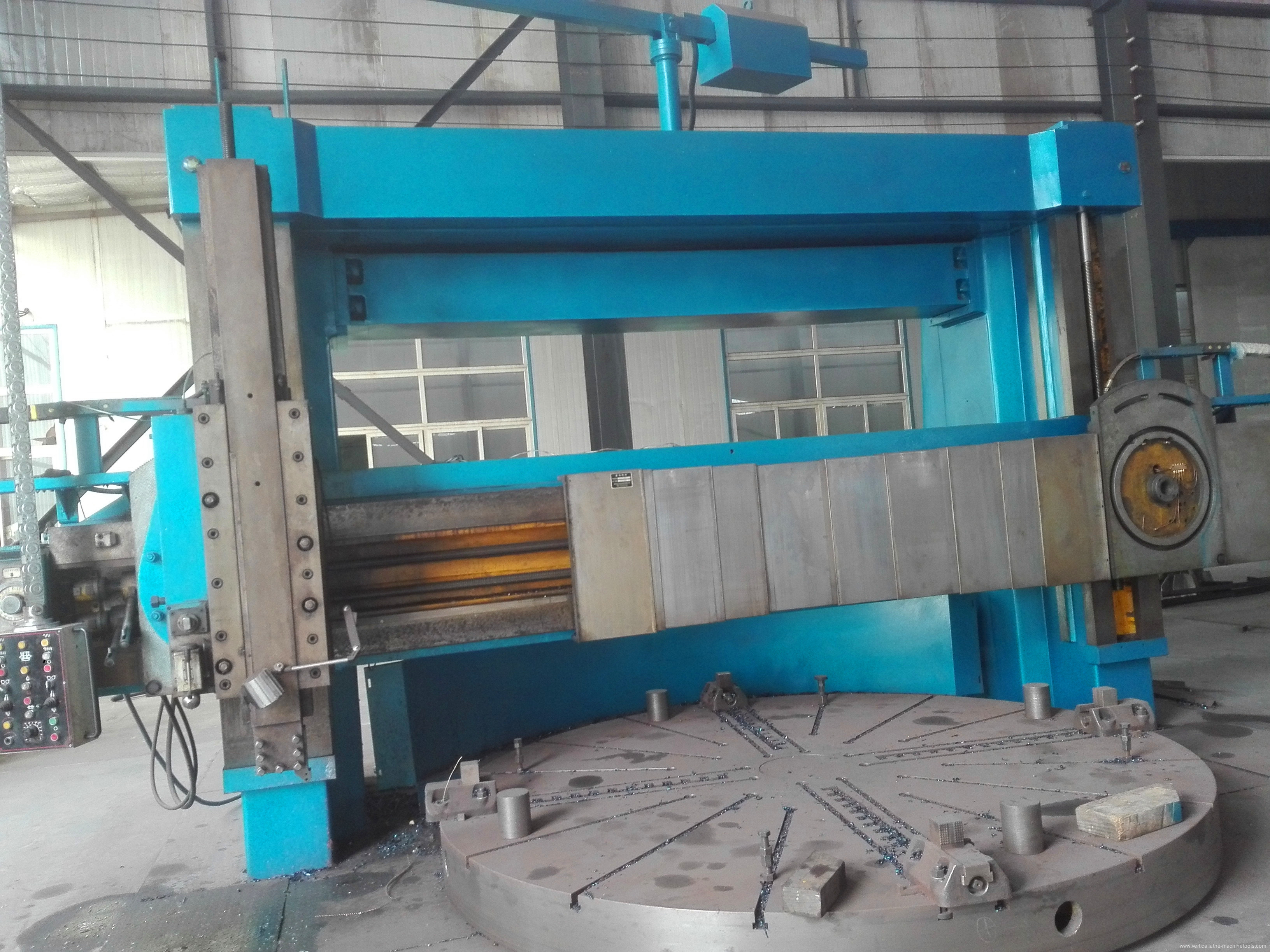

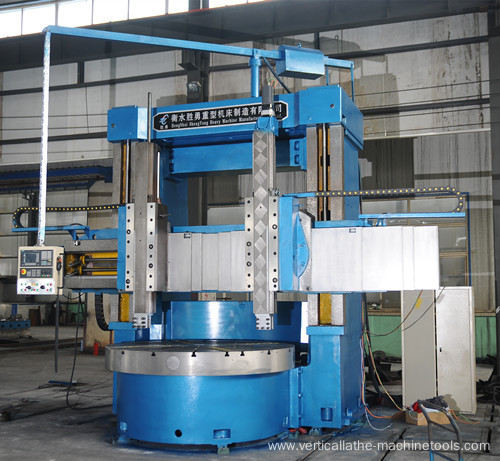

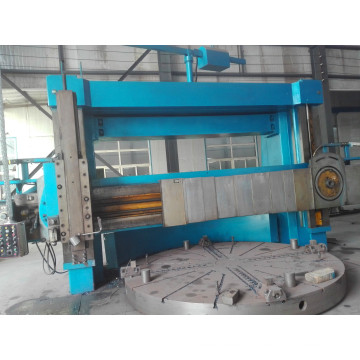

Robust conventional lathes machine for sale

Vertical lathe can be divided into Cnc Vertical Lathe and Conventional Vertical Lathes .The kinds of conventional lathes machine can meet heavy cutting, heavy load, high-precision static and dynamic with safe and reliable operation.Conventional lathes machine processing categories include: large diameter shaft and disc parts inside and outside cylindrical surface, conical surface circular surface and grooving, various thread.

Features of Conventional Lathes Machine for sale

1 The major foundations are based on the overall casting ,when the column is heightened, Lathe Machine casting is still able to maintain the best force stiffness.

2 Spindle bearing adopts high precision double row cylindrical roller bearings, the guide rail of the worktable uses the constant flow hydrostatic guideway and a constant temperature cooling to ensure the accuracy of rotation, stiffness, strength and thermal stability of lathe machine.

Conventional Lathes for Sale

Technical specification of Robust conventional Vertical Lathes machine C5225

1 Maximum turning diameter 2500mm

2 Maximum height of workpiece 1600/2000/2200/2500/3000 mm

3 Maximum weight of workpiece 10/20 t

4 Table diameter 2250 mm

5 Speed change of table 2~63 r/min

6 Maximum torque of table 63 KN/min

7 Vertical travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 1400 mm

9 Rotation range of tool post ±30° Degree

10 Power of main motor 55 kw

11 Machine weight (About) 32~38 t

Robust conventional lathes machine parts
