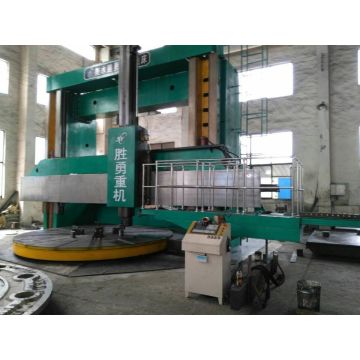

Vtl cnc lathe vertical turning lathe

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5263

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 6300mm

Maximum Height Of Workpiece: 4150mm

Maximum Weight Of Workpiece: 100000kg

Table Diameter: 5750 Mm

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Vtl cnc lathe applies to machining in many industries, and Vtl cnc lathe can be used for rough, fine turning of cylindrical, cylindrical, round, dimensional, end face, grooving, cutting and so on.

Vertical Turning Lathe cnc use high strength and high accuracy castings.Moving parts such as saddle and ram,are through static and dynamic mechanical kinematics simulation,greatly improving the design success rate.The vertical turning lathe cnc type adopts the fixed beam structure by simplifying and merging,and organically combines the crossbeam and the upright column into an organic whole,thus greatly reducing joint surface.

Feed system is driven by the AC servo motor, motor and ball screw is direct connected by flexible coupling.Vertical lathe chuck and gear box is with high precision and small voice.Hydraulic parts and electrical parts use well-known domestic products.Rail lubrication is with centralized fuel supply, very convenient.

Vtl cnc lathe

Technical specification of Vtl cnc lathe vertical turning lathe C5263

1 Maximum turning diameter 6300 mm

2 Maximum Height of workpiece 3150/3650/4150 mm

3 Maximum Weight of workpiece 50/80/100 t

4 Table diameter 4500/5750 mm

5 Speed range of table 0.5-50r/min

6 Maximum torque 1 60KN/min

7 Vertical Travel of tool post 1600 mm

8 Horizontal travel of tool post 3415 mm

9 Rotation angle of tool post -15°-±30°

10 Power of main motor 75kw

11 Overall dimensions(L×W×H) 12230×6800×6800 mm

12230×6800×7300 mm

12230×6800×7800 mm

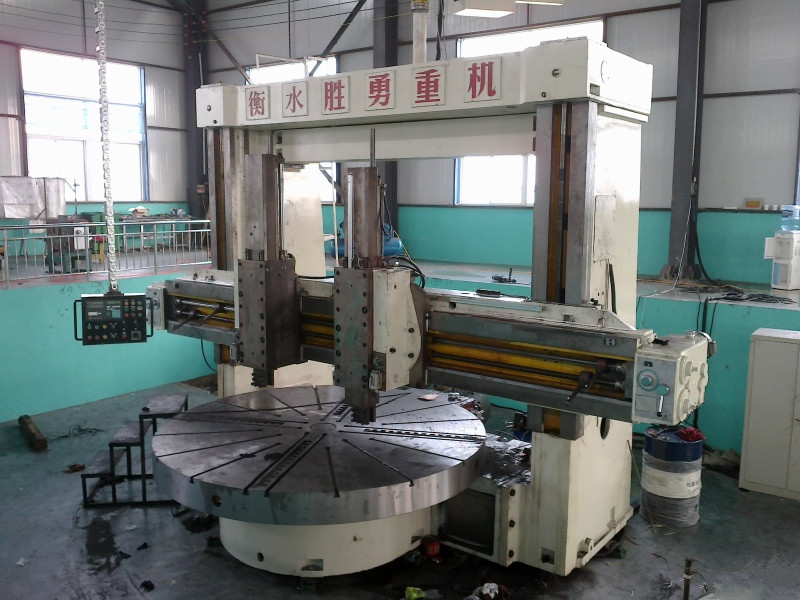

Vertical turning lathe cnc type and manual type

Vertical turning lathe cncVertical turning lathe cnc

Vertical turning lathe cnc

Vertical turning lathe cnc


Looking for ideal VTL Cnc Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Turning Lathe Cnc are quality guaranteed. We are China Origin Factory of Vertical Lathe Chuck. If you have any question, please feel free to contact us.

Product Categories : Lathe Machine

Product Images

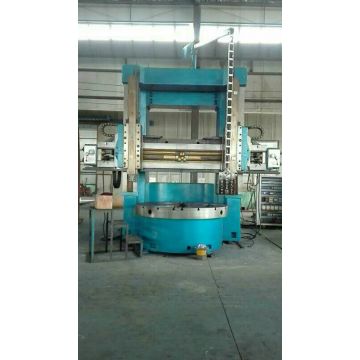

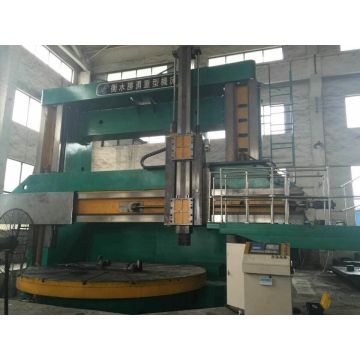

  • Vtl cnc lathe vertical turning lathe
