Payment Type: | L/C |
---|---|
Incoterm: | FOB |
Min. Order: | 1 Set/Sets |
Model No.: C5232
Brand: Hengshui shengyong
Type: Vertical Lathe
Processing Accessory: Chuck CNC Lathe
Guide Rail: Horizontal Guide Rail
Tool Holder: Double-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Automatic
Setting Mode: Table
Precision: Normal Precision
Certification: ISO 9001
Condition: New
Table Diameter: 2830 Mm
Maximum Turning Diameter: 3150 Mm
Maximum Height Of Workpiece: 3000 Mm
Maximum Weight Of Workpiece: 20000kg
Packaging: as request
Productivity: 5 set
Transportation: Ocean
Place of Origin: Hengshui city
Supply Ability: 5 set /month
Certificate: ISO9001
Port: Tianjin
Payment Type: L/C
Incoterm: FOB

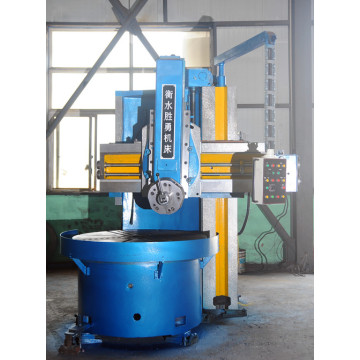

What is Vertical Turning Lathe ?Vertical lathe belongs to large mechanical equipment and our new Cnc Vertical Lathe is used for machining large and heavy workpieces with big radial size, relatively small axial dimension and complex shape.Usually our new cnc vertical lathe can process the cylindrical surface, end face, taper surface, cylindrical hole and taper hole of various kinds of wheel workpieces.
New cnc vertical lathe can achieve two-axis linkage, cutting cylindrical surface, conical surface, circular surface and any combination of surface.Our new Cnc Vertical Lathe For Sale can generally be divided into single column type and double column type. Small Vertical Lathes are usually made of single column and large vertical lathes are made of double columns. Our new cnc vertical lathe machining accuracy can reach IT9-IT8, the surface roughness Ra can be up to 3.2-1.6um.
Technical specification of New cnc vertical lathe for sale C5232

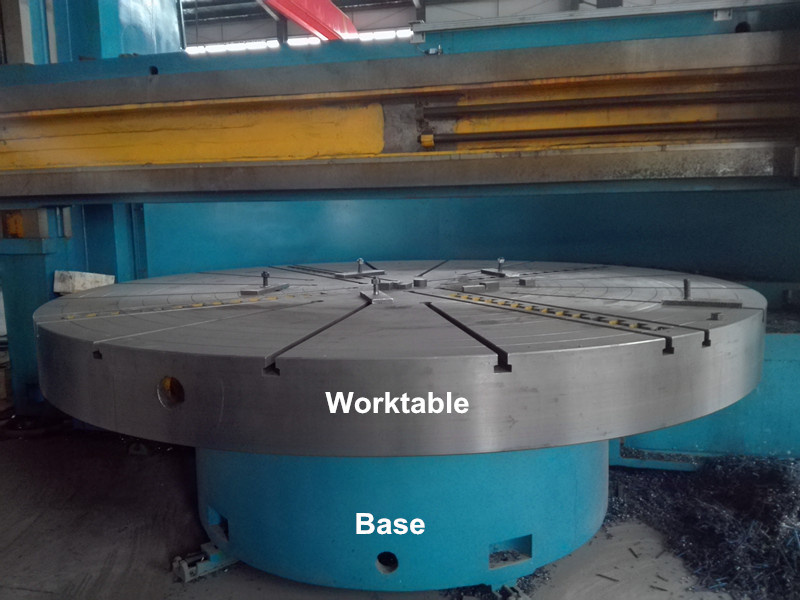

Table diameter:Φ2830 mm
Maximum turning diameter:Φ3200 mm
Maximum height of workpiece:1600-3000mm
Maximum weight of workpiece:10/20/32ton
Maximum cutting torque of table:63000 N.m
Step of table rotation:Two gears stepless speed regulation
Speed range of table:2-63 r/min
Feed step:Stepless speed regulation
Range of feed rates:0.1-1000mm/min
Rapid travelling speed of tool post:1550/2000mm/min
Beam travel:1250mm
Horizontal travel of tool post:1750mm
Vertical travel of tool post:1000/1250/1400/1600mm
Beam lifting speed:350 mm/min
Maximum rotation angle of tool post:±30°
Clamping size of tool chuck ( Width X Height):40×50mm
Power of main motor:55KW
Overall dimensions (L×W×H ) :5880×4600×4952 mm
Machine weight ( approx ):36-50ton
Recommend new cnc vertical lathe for sale in stock
