CNC multifunction vertical lathe for sale

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CK5126

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 2300mm

Maximum Turning Diameter: 2600mm

Maximum Height Of Workpiece: 1300mm

Maximum Weight Of Workpiece: 10000kg

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: Hengshui

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Multifunctional Cnc Vertical Lathe CK5126:maximum turning diameter 2600mm, maximum processing height 1300mm.CNC multifunction vertical lathe can conduct process a variety of non-ferrous metals , ferrous metals and some nonmetallic materials.Multifunctional Cnc vertical lathe can be used for cylindrical surface, inside and outside the conical surface, plane, round solitary and various complex shapes of curved surface processing.

Multifunctional cnc vertical lathe main structure consist of bed, the main gearbox, table, beam lifting agencies, electrical systems and hydraulic systems.According to user requirements, the machine can be equipped with semi-enclosed protective cover, cooling and chip removal device.

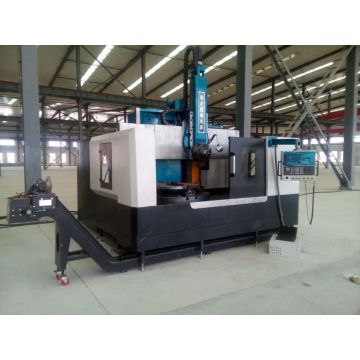

CNC multifunction vertical lathe

Technical specification of CNC multifunction vertical lathe for sale CK5126

1 Table diameter 2300mm

2 Maximum turning diameter 2600mm

3 Maximum Height of workpiece 1300mm

4 Maximum Weight of workpiece 10 t

5 Speed range of table 2.5-80 r/min

6 rotation speed of work table 16

7 Range of feed rates 0-1000 mm/min

8 Step stepless

9 horizontal travel of vertical slide 1600 mm

Vertical travel of vertical slide 915 mm

10 Horizontal travel of side tool post 750 mm

Vertical travel of side tool post 900 mm

11 Crossrail travel 850 mm

12 Maximum size of tool bar section 35×45 mm

13 Power of main motor 37 kw

Rotating Speed 1470r/min

14 Power of feed motor 1.3/1.7 kw

Rotating Speed 940/1440 r/min

15 Rapid travelling speed of tool post 2000 mm/min

16 Machine weight(Approx) 19.5 t

17 Overall dimensions(L ×W×H) 3450x3430x4100mm

Recommend more CNC multifunction vertical lathe for sale in stock

CNC multifunction vertical lathe

CNC multifunction vertical lathe

CNC multifunction vertical lathe

Looking for ideal CNC Multifunction Vertical Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Multifunctional Cnc Vertical Lathe are quality guaranteed. We are China Origin Factory of CNC Multifunction Vertical Lathe for Sale. If you have any question, please feel free to contact us.
