Home > Products > Lathe Machine > Promotional vertical turning lathe price

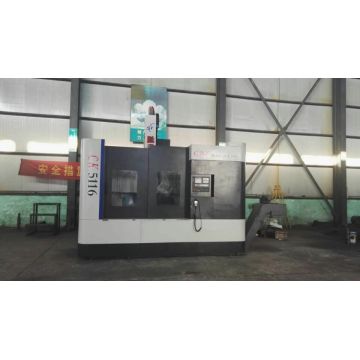

Promotional vertical turning lathe price

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: C5116

Type: Vertical Lathe

Processing Accessory: Centre CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 1400mm

Maximum Turning Diameter: 1600mm

Maximum Height Of Workpiece: 1200mm

Maximum Weight Of Workpiece: 5000kg

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Hengshui

Transportation: Ocean

Place of Origin: Hengshui

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

C5116/CK5116 single column vertical turning lathes are good performance and advanced equipments,divided into manual type and CNC type.So Vertical Turning Lathe price depends on its types. Vertical Turning Lathe Machine for sale,can be used for the rough and finish machining of the inside and outside cylindrical surfaces, the inner and outer conical surfaces, the end faces, the groove, the arc surface and various curve surfaces and threads.

Advantages of vertical turning lathe are as following:

1 Machine bases came from our own casting, self-processing, self-installation. Casting materials are HT250 quality cast iron, after thermal aging and vibration aging.

2 Machine main drive system uses AC asynchronous servo motor drive, through two gears of mechanical speed, so that the table to achieve stepless speed.

3 The system adopts SIEMENS or FANUC CNC system and other CNC system can be selected by the user.

4 According to the needs of users, the machine can be equipped with chip removal device and semi enclosed protective cover.

Vertical turning lathe machine for sale

Main technical specifications of Vertical Turning Lathe Machine for sale C5116

1 Table diameter 1400 mm

2 Maximum turning diameter 1600 mm

3 Maximum height of workpiece 1200 mm

4 Maximum weight of workpiece 5 t

5 Speed range of table 5-160 r/min

6 Step of table rotation 16

7 Range of feed rates 0.8-86 mm/min

8 Step 12

9 Horizontal travel of vertical slide 915 mm

Vertical travel of vertical slide 800 mm

10 Horizontal travel of side tool head 600 mm

Vertical travel of side tool head 900 mm

11 Beam travel 650 mm

12 Maximum section size of tool shank 30×40 mm

13 Power of main motor 22 kw

Rotating Speed 1470 r/min

14 Power of feed motor 1.3/1.7 kw

Rotating Speed 940/1440 r/min

15 Machine weight 12.5 t

16 Overall dimensions(L ×W×H) 2800x2800 x3800 mm


Recommend vertical turning Lathe Machine for sale in stock

Vertical turning lathe machine for saleVertical turning lathe machine for sale

Vertical turning lathe machine for sale

Looking for ideal Vertical Turning Lathe Price Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Advantages of Vertical Turning Lathe are quality guaranteed. We are China Origin Factory of Vertical Turning Lathe Machine for Sale. If you have any question, please feel free to contact us.

Product Categories : Lathe Machine

Product Images

  • Promotional vertical turning lathe price
  • Promotional vertical turning lathe price
  • Promotional vertical turning lathe price
  • Promotional vertical turning lathe price
  • Promotional vertical turning lathe price
