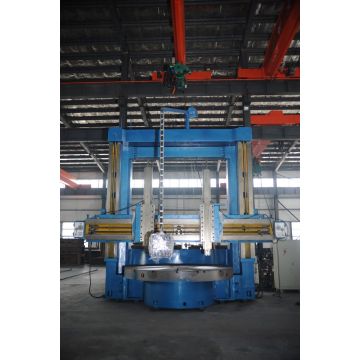

Small new vertical turning lateh VTL machine

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CK5112

Type: Vertical Lathe

Processing Accessory: Centre CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Manual

Controlling Mode: Artificial

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 1000mm

Maximum Turning Diameter: 1250mm

Maximum Height Of Workpiece: 1000mm

Maximum Weight Of Workpiece: 3200kg

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: cHINA

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Small vertical turning lathes have three kinds choice:high-speed type, standard type and heavy-duty type of choice.The kind of small vertical turning lathes applied in hard alloy and ceramic cutting tools, such as for ferrous metals, nonferrous metals and some non-metallic parts, inside and outside the cylinder, cone surface, grooving, threading and rotary surfaces etc.

We can offer single column vertical lathe and double column vertical lathe.C5112/C5116/C5118/C5120/C5123/C5125/C5126/C5225/C5232/C5240/C5250/C5263.

We can offer good quality with low cost vertical lathe and good performance :

1 Castings have been through strict manual aging and vibration aging, to ensure the rigidity and stability of Vertical Lathe Machine.

2 Machine uses advanced audio frequency quenching process to make service life more longer.

3 Electric System is controlled by PLC with high reliability.

4 Digital display devices can be installed according to special requirements.

Small vertical turning lathes

Technical specification of small vertical turning lathes CK5112

1 Table diameter 1000 mm

2 Maximum turning diameter 1250 mm

3 Maximum height of workpiece 1000 mm

4 Maximum weight of workpiece 3.2 t

5 Speed change of table 6.3-200 r/min

6 Rotation speed of work table 16

7 Feed rates 0-1000 mm/min

8 Step stepless

9 Horizontal travel of tool post 700 mm

Vertical travel of tool post 650 mm

10 Horizontal travel of side cutter bar 600 mm

Vertical travel of side cutter bar 800 mm

11 Crossrail travel 500 mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 22 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Rapid travelling speed of tool post 2000 mm/min

16 Machine weight 9.5 t

17 Overall dimensions(L×W×H) 2460×2380×3000 mm

Recommend low cost vertical lathe in workshop

Low cost vertical lathe

Low cost vertical lathe

Low cost vertical lathe

Looking for ideal Small Vertical Turning Lathes Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the New Vertical Turning Lathe are quality guaranteed. We are China Origin Factory of Low Cost Vertical Lathe. If you have any question, please feel free to contact us.
