Twin Spindle Vertical Capstan Lathe

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5240

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 4000mm

Maximum Height Of Workpiece: 3000mm

Maximum Weight Of Workpiece: 32ton

Table Diameter: 3150mm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

Twin Spindle Vertical Capstan Lathe

Twin Spindle Vertical Capstan Lathe

Detailed Product Description of Twin Spindle Vertical Capstan Lathe

heavy-type double-column vertical capstan lathe,are suitable for high-speed steel and hard alloy cutter, rough and fine turning processing of inner and outer cylindrical surface, conical surface, plane, all kinds of rotary surface and grooving of ferrous metals, nonferrous metals and some non-metallic parts.

Technical specification of Twin Spindle Vertical Capstan Lathe C5240

1 Maximum turning diameter 4000 mm

2 Maximum Height of workpiece 1600/2000/2500/3000 mm

3 Maximum Weight of workpiece 10/20/32 t

4 Table diameter 3150 mm

5 Speed range of table 2-63 r/min

6 Maximum torque 63 KN/min

7 Vertical Travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 2150 mm

9 Rotation angle of tool post ±30° degree

10 Power of main motor 55/75

11 Machine weight(about) 42-58t

12 Overall dimensions(L×W×H) 8010×4400×4680mm

8010×4400×5080mm

8010×4400×5600mm

8010×5569×6230mm

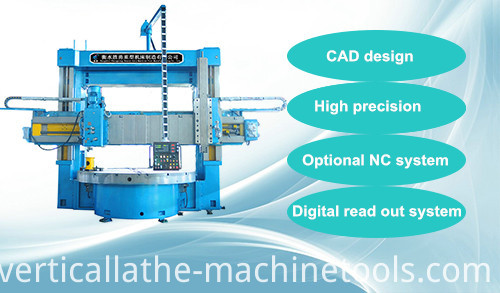

Photo of Twin Spindle Vertical Capstan Lathe

Twin Spindle Vertical Capstan LatheTwin Spindle Vertical Capstan LatheTwin Spindle Vertical Capstan LatheTwin Spindle Vertical Capstan LatheTwin Spindle Vertical Capstan LatheTwin Spindle Vertical Capstan Lathe

Looking for ideal Twin Spindle Vertical Capstan Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Twin Spindle Lathes are quality guaranteed. We are China Origin Factory of Twin Spindle Vertical Machining Center. If you have any question, please feel free to contact us.
