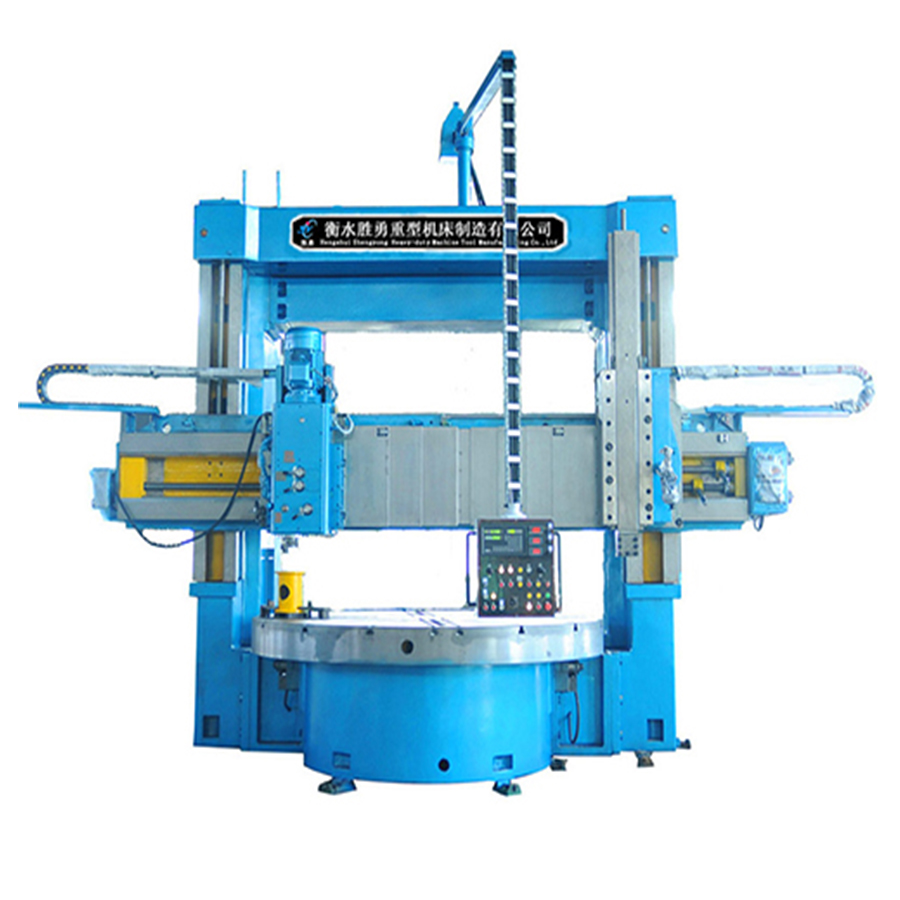

Double column cnc type vertical lathe

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CK5225

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Certification: ISO 9001

Condition: New

Double Column Cnc Lathe: 2500mm

Maximum Height Of Workpiece: 3000mm

Maximum Weight Of Workpiece: 20ton

Table Diameter: 2250mm

Precision: Normal Precision

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set/month

Certificate: ISO9001

Port: Tianjin

Product Description

Double column Cnc Vertical Lathe is widely used in the machinery manufacturing and machinery repair and other departments. The double column cnc lathe is well received by the customers because of its convenient operation, safety and reliability and stable accuracy.Double column cnc vertical lathe can be cut simultaneously, turning the inner and outer cylindrical surfaces, the inner and outer cone surfaces, the end face, the cutting groove and the cutting process respectively.

According to customer needs,double column cnc lathe can use constant temperature cooling device, can be equipped with independent hydraulic station system,to ensure the machining accuracy and technical stability. Double column Vertical Lathe Cnc system can choose imported or domestic configuration.

Feature of Double column CNC Vertical Lathe Machine

Double Column Cnc Vertical Lathe

Technical specification of Double Column Cnc Vertical Lathe CK5225
Table diameter:φ2250mm
Maximum turning diameter:φ2500mm
Maximum height of workpiece:1600-2800mm
Maximum weight of workpiece:10/20Ton
Maximum cutting torque of table:63000N.m
Step of table rotation:Two gears stepless speed regulation
Speed range of table:2-63r/min
Feed step :Stepless speed regulation
Range of feed rates:0.1-1000 mm/min
Rapid travelling speed of tool post :1550/2000mm/min
Beam travel:1250mm
Horizontal travel of tool post:1400mm
Vertical travel of tool post:1000/1250/1400/1600mm
Beam lifting speed:350mm/min
Maximum rotation angle of tool post:±30°
Clamping size of tool chuck :( Width X Height)40×50 mm
Power of main motor:55 KW
Overall dimensions (L×W×H ):5180×4600×4952mm
Machine weight ( approx ):33-38ton
Recommend single and double column cnc vertical lathe

Double Column Cnc Vertical Lathe

Double Column Cnc Vertical Lathe

Double Column Cnc Vertical Lathe

Double Column Cnc Vertical Lathe

Looking for ideal Double Column Vertical Lathe Cnc Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Double Column Cnc Vertical Lathe are quality guaranteed. We are China Origin Factory of Double Column Cnc Lathe. If you have any question, please feel free to contact us.
