Large CNC vertical boring mills lathe machine

    Unit Price: USD 50000 - 90000 / Set/Sets
    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets

Basic Info

Model No.CK5225

BrandShengyong

TypeVertical Lathe

Processing AccessoryChuck CNC Lathe

Guide RailHorizontal Guide Rail

Tool HolderDouble-tool Holder CNC Lathe

Power SourceElectric

Controlling ModeArtificial

Automatic GradeSemiautomatic

Setting ModeTable

PrecisionNormal Precision

CertificationISO 9001

ConditionNew

Table Diameter2250mm

Maximum Turning Diameter2500mm

Maximum Height Of Workpiece3000mm

Maximum Weight Of Workpiece20ton

Speed Change Of Table2~63 R/min

Additional Info

Packagingon request

Productivity5 set/month

TransportationOcean

Place of OriginHengshui City,Hebei Province

Supply Ability5 set/month

CertificateISO&CE

Payment TypeL/C

IncotermFOB

Product Description

 Large CNC Vertical Boring Mills Lathe Machine is suitable for cutting tools such as cemented carbide and ceramics, and vertical lathe can be used for rough, semi finishing and finishing of inner and outer cylindrical surfaces, conical surfaces, end faces, cutting grooves, screws, turning surfaces, etc.

Features of Large CNC vertical boring mills lathe machine CK 5225

1 The work table uses dynamical pressure slide-way and NN30 dual cylinder roller bearing. It features high bearing capacity and revolving precision.

2 CNC vertical boring mills adopt AC servo motor, imported ball screw to change general type to CNC one.

3 The vertical boring mills adopts module design and finite element analysis with simple structure and strong reliability.

4 High-precision gears are with low noise and stable operation.

5 Accessories including side head,cooling system and digital display device can be provided according to special requirements Vertical Boring Mills


Technical specification of Large vertical boring mills lathe machine CK5225

1 Maximum turning diameter 2500mm

2 Maximum height of workpiece 1600/2000/2200/2500/3000 mm

3 Maximum weight of workpiece 10/20 t

4 Table diameter 2250 mm

5 Speed change of table 2~63 r/min

6 Maximum torque of table 63 KN/min

7 Vertical travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 1400 mm

9 Rotation range of tool post ±30° Degree

10 Power of main motor 55 kw

11 Machine weight (About) 32~38 t

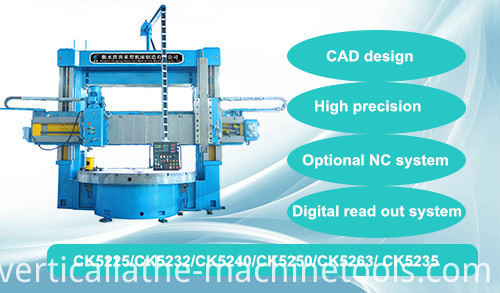

Photo of CNC large vertical boring mills lathe machine

CNC lathe machineCNC Vertical Boring MillsCNC Vertical Boring MillsCNC Vertical Boring MillsCNC Vertical Boring MillsCNC Vertical Boring Mills
