Professional Schiess Vtl Machine for sale

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5263

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Precision

Certification: ISO 9001

Maximum Turning Diameter: 6300mm

Maximum Height Of Workpiec: 3150MM

Maximum Weight Of Workpiece: 50 TON

Table Diameter: 4500mm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

This series of Schiess Vtl machine tool applys to rough, fine turning carbide and ceramic cutting tools, the black metal and some non-metallic parts of the internal and external cylindrical surface, internal and external conical surface, slotted boring and rotary surface processes.Schiess Vtl machine tool is suitable for power generation, shipbuilding, metallurgy, mining and other industries of large parts processing.

Schiess Vtl Machine Tool features:

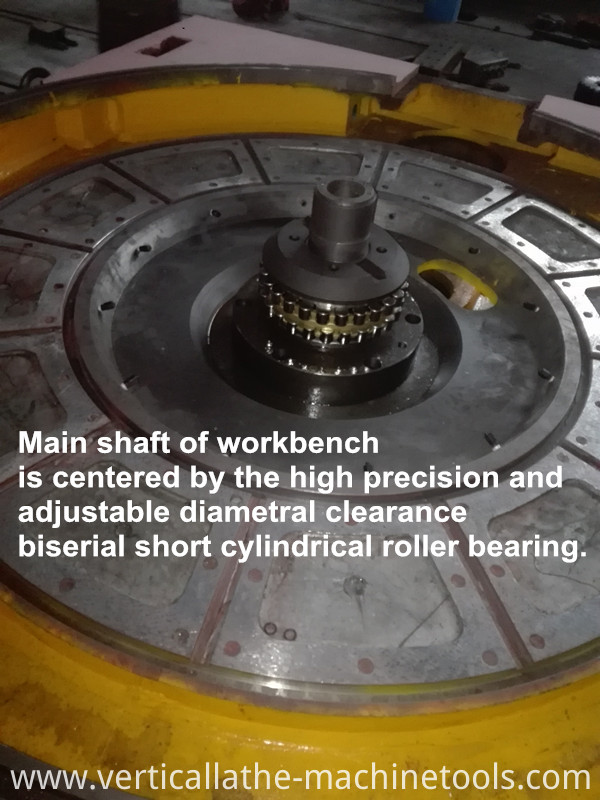

1 Main shaft adopts the precision double row short cylindrical roller bearing, worktable guide rail adopts the constant static pressure guideway to make sure machine has high rotation accuracy and sufficient stiffness, strength and thermal stability.

2 Main drive machine is by the DC motor drive, through two gears spindle speed mechanism to achieve the speed range of the table.

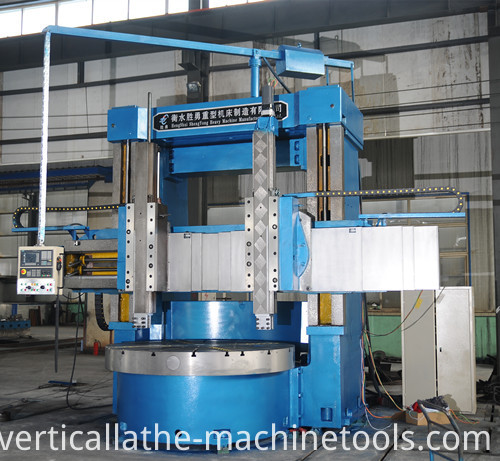

Vtl Machine Tool

Technical specification of VTL machine tool C5263

1 Maximum turning diameter 6300 mm

2 Maximum Height of workpiece 3150/3650/4150 mm

3 Maximum Weight of workpiece 50/80/100 t

4 Table diameter 4500/5750 mm

5 Speed range of table 0.5-50r/min

6 Maximum torque 1 60KN/min

7 Vertical Travel of tool post 1600 mm

8 Horizontal travel of tool post 3415 mm

9 Rotation angle of tool post -15°-±30°

10 Power of main motor 75kw

11 Overall dimensions(L×W×H) 12230×6800×6800 mm

12230×6800×7300 mm

12230×6800×7800 mm

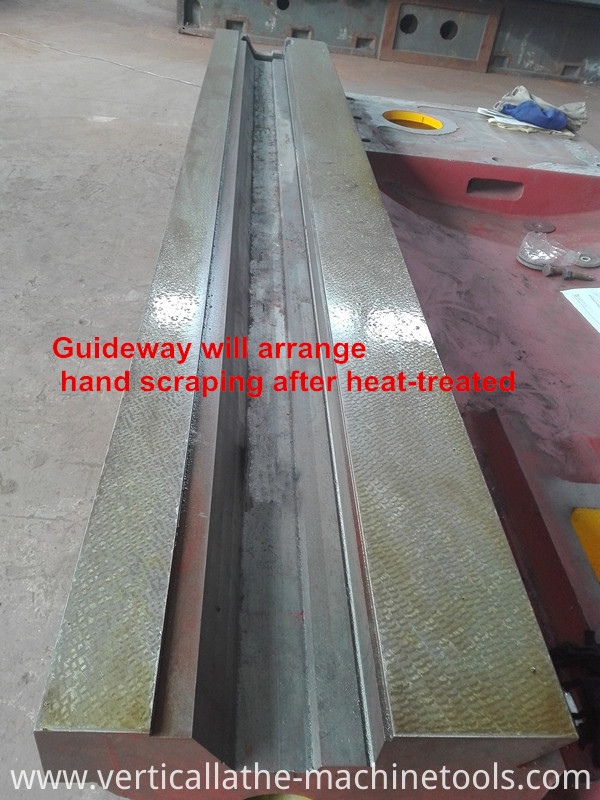

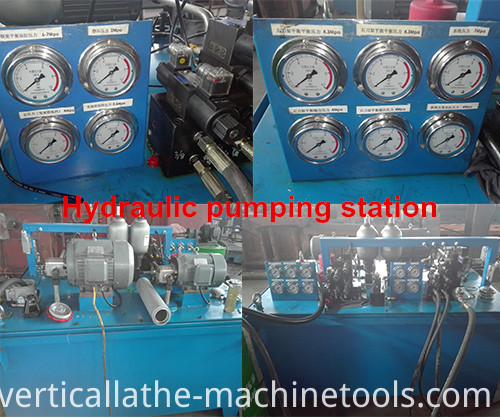

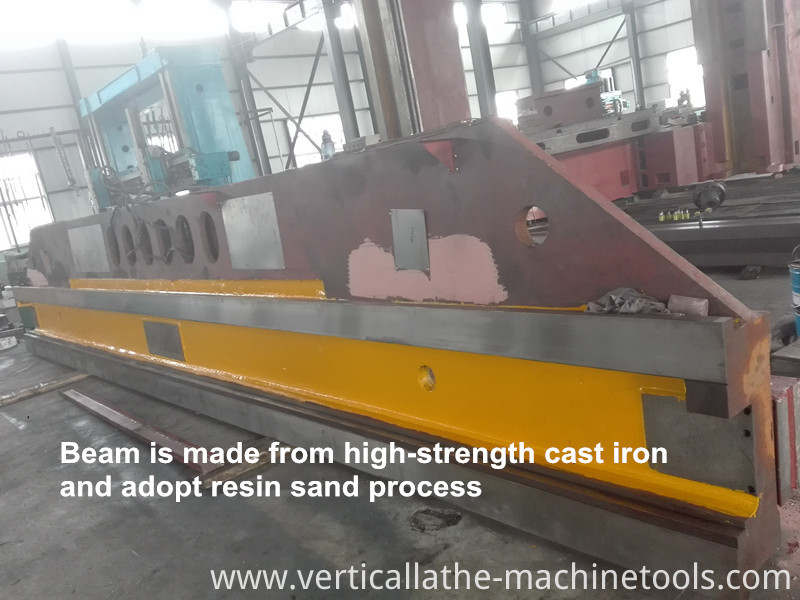

Parts of Schiess Vtl Machine Tool

Vtl Machine ToolVtl Machine ToolSchiess Vtl MachineSchiess Vtl MachineSchiess Vtl Machine

Recommend Schiess Vtl for sale

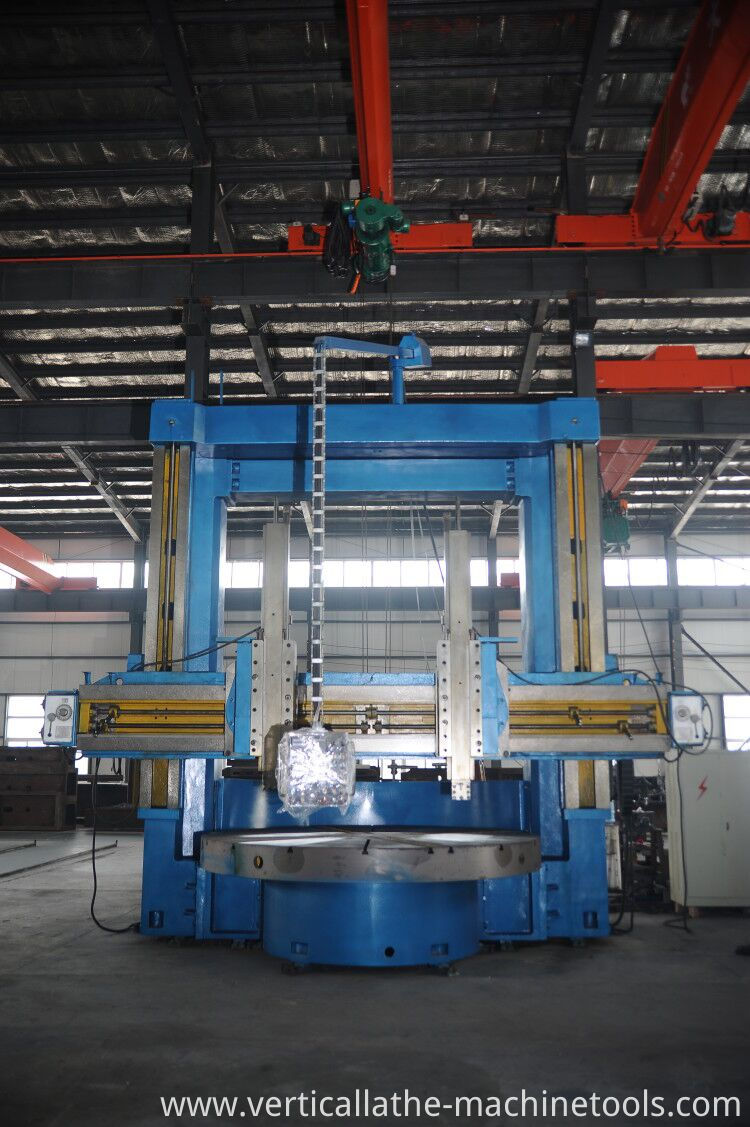

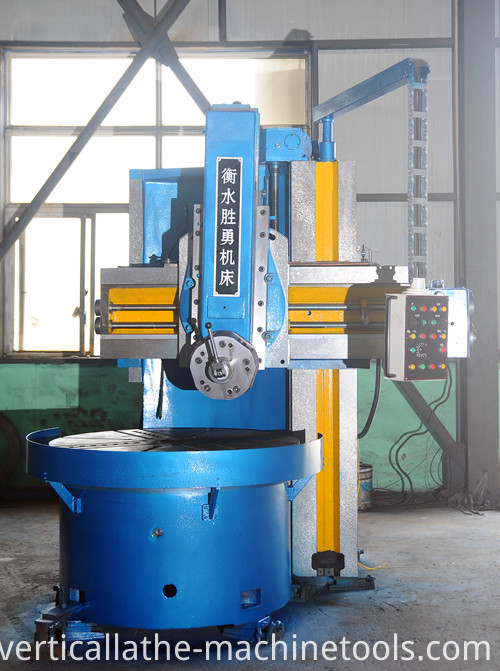

Schiess Vtl for SaleSchiess Vtl for Sale

Looking for ideal Schiess Vtl Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Schiess Vtl for Sale are quality guaranteed. We are China Origin Factory of Vtl Machine Tool. If you have any question, please feel free to contact us.

Product Categories : Vertical Boring Mills

Product Images

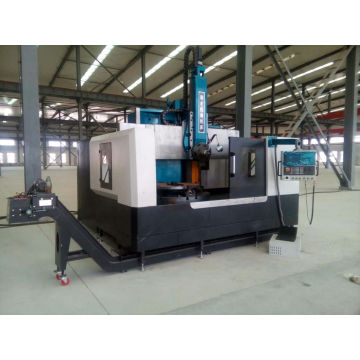

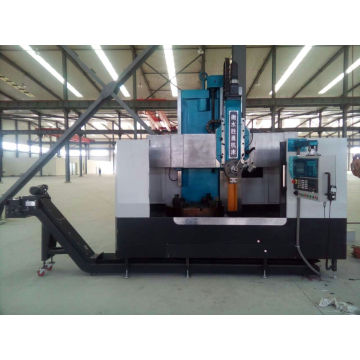

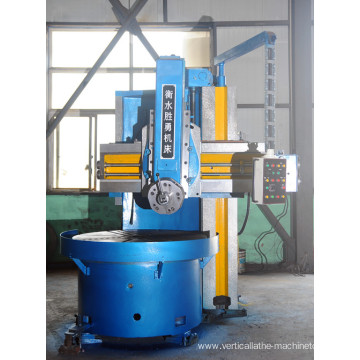

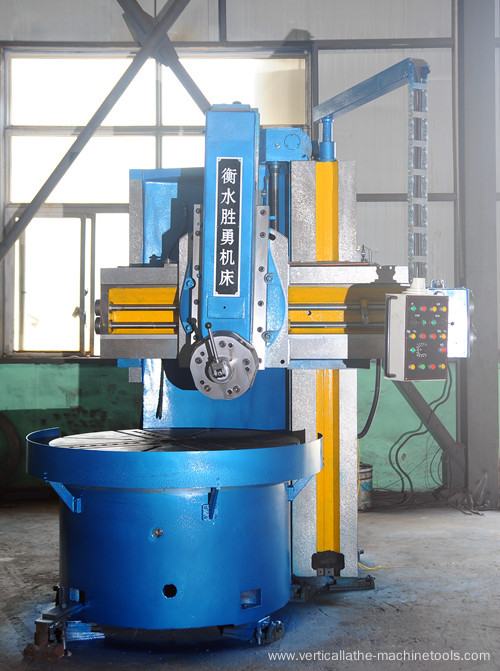

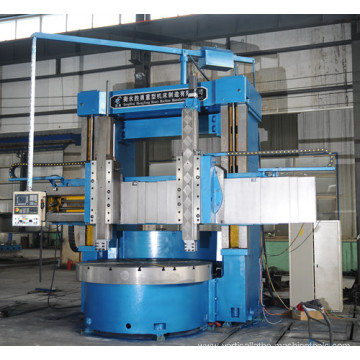

  • Professional Schiess Vtl Machine for sale
