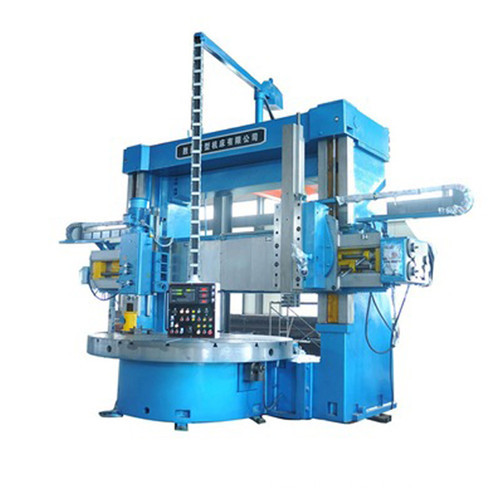

CNC vertical borer lathe machine

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5263

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Manual

Controlling Mode: CNC

Automatic Grade: Manual

Setting Mode: Table

Precision: Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 6300mm

Maximum Height Of Workpiece: 3150mm

Maximum Weight Of Workpiece: 50ton

Table Diameter: 4500mm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

Cnc Vertical Borer Lathe Machine is suitable for internal and external turning/taping, facing, slotting, threading, contour surface turning (CNC machine) etc.

Feature of CNC vertical borer lathe machine

1 The spindle drive adopts servo motors through 2 steps speed change unit to make work table realize step-less speed regulation.

2 Work table spindle adopts short spindle & constant flow hydrostatic guide-way to keep high centering accuracy, high rotating accuracy, big loading capacity & small deformation.

CNC Vertical Borer

Technical specification of CNC vertical borer lathe machine C5263

1 Maximum turning diameter 6300 mm

2 Maximum Height of workpiece 3150/3650/4150 mm

3 Maximum Weight of workpiece 50/80/100 t

4 Table diameter 4500/5750 mm

5 Speed range of table 0.5-50r/min

6 Maximum torque 1 60KN/min

7 Vertical Travel of tool post 1600 mm

8 Horizontal travel of tool post 3415 mm

9 Rotation angle of tool post -15°-±30°

10 Power of main motor 75kw

11 Overall dimensions(L×W×H) 12230×6800×6800 mm

12230×6800×7300 mm

12230×6800×7800 mm

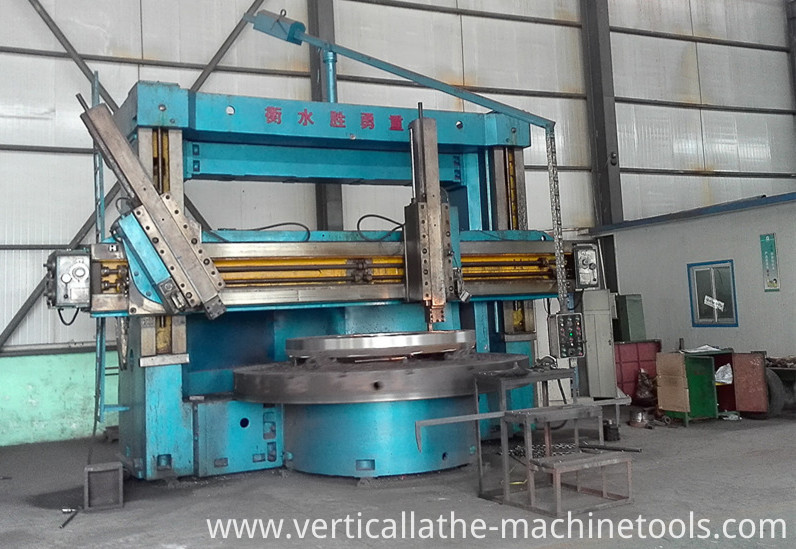

Photo of CNC Vertical Borer lathe machine

CNC Vertical BorerCNC Vertical BorerCNC Vertical BorerCNC Vertical Borer

Recommend CNC Vertical Borer lathe machine

CNC Vertical BorerCNC Vertical Borer

Looking for ideal CNC Vertical Borer Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Boring Mills CNC are quality guaranteed. We are China Origin Factory of Cnc Vertical Borers. If you have any question, please feel free to contact us.
