Low price large size vertical lathe

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 29 Days

Basic Info

Model No.: C5232

Type: Vertical Lathe

Processing Accessory: Centre CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Manual

Controlling Mode: Artificial

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 3150mm

Maximum Height Of Workpiece: 3000mm

Maximum Weight Of Workpiece: 20ton

Table Diameter: 2830 Mm

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

Large size vertical lathe can be used in processing cylinder surface,inner holes,arc surfsces and taper surface of large workpiece. Large size vertical lathe has a wide use in motor,motor manufacturing,valves ,iron & steel and pump industry.

Hengshui Shengyong, established in 2010, is one of the leading Cnc Vertical Lathe manufacturers and suppliers in China. All of our equipments are made under strict quality control and management system. Please rest assured to wholesale the customized CNC vertical lathe from us.We can offer low price vtl machine and low price Vertical Lathe Machines.

Large size vertical lathe vtl machine

Large size vertical lathe

Technical specification of Large size vertical lathe vtl machine C5232

1 Maximum turning diameter 3150 mm

2 Maximum Height of workpiece 1600/2000/2200/2500/3000 mm

3 Maximum Weight of workpiece 10/20 t

4 Table diameter 2830 mm

5 Speed range of table 2-63 r/min

6 Maximum torque 63 KN/min

7 Vertical Travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 1735 mm

9 Rotation angle of tool post ±30° degree

10 Power of main motor 55 kw

11 Machine weight About 36-50 t

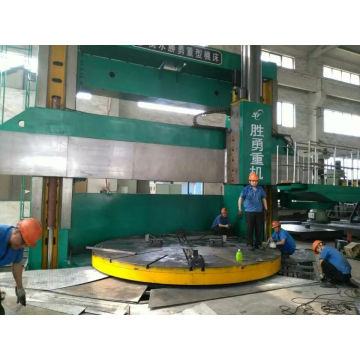

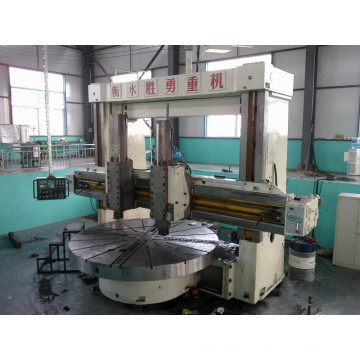

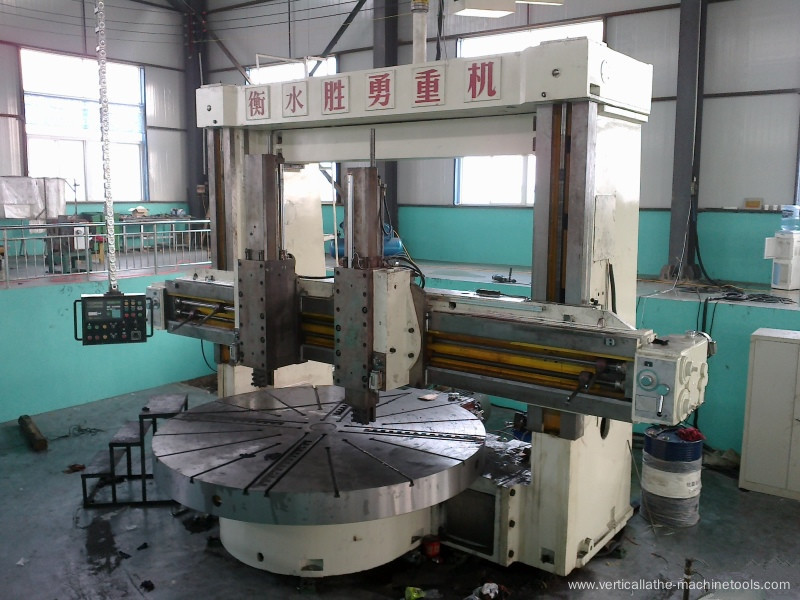

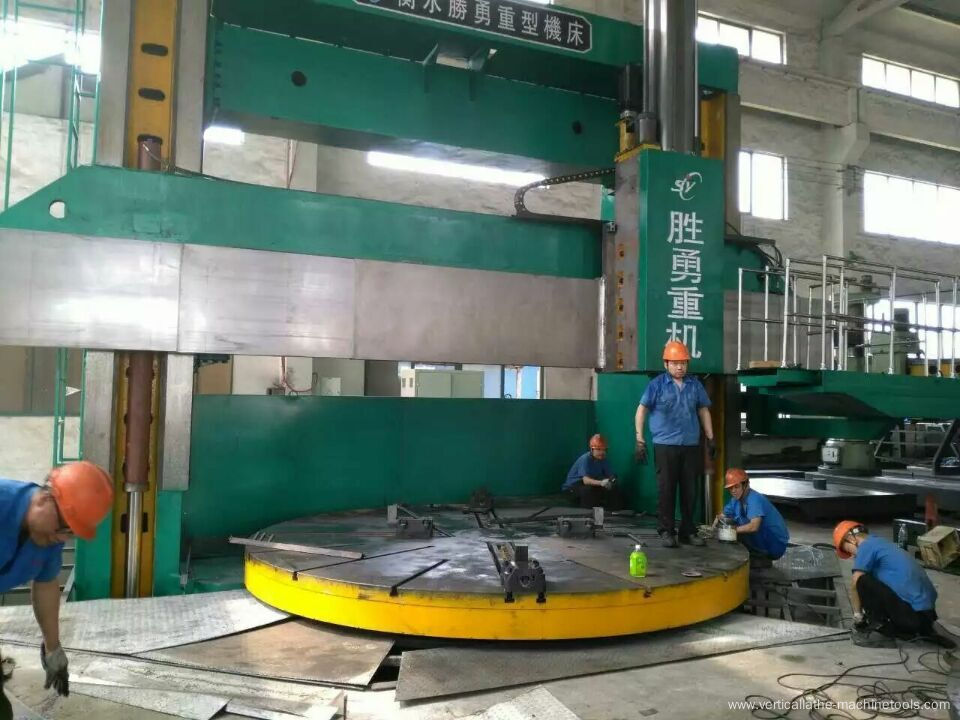

Parts photo of Large size vertical lathe

Low price vtl machine

Low price vtl machineLow price vtl machineLow price vtl machine

Recommend Low price vertical lathe for sale

Low price vertical latheLow price vertical lathe

Low price vertical latheLow price vertical lathe
