VTL cnc double column vertical lathe

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5225

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 2500mm

Maximum Height Of Workpiece: 3000mm

Maximum Weight Of Workpiece: 20000kg

Table Diameter: 2250mm

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Cnc double column vertical lathe features large torque cutting,overweight load,safe and reliable movement.The geometric accuracy of vtl CNC Vertical Lathe Machine has reached the leading level in china.This vtl CNC Vertical Lathes are suitable for roughing and fine turning of ferrous metal and parts of non metal parts, such as inner and outer cylinder, end face, inside and outside cone surface, curved surface and grooving.

The vtl cnc Vertical Lathe Machine is composed of gantry frame, main transmission gear box, worktable, crossbeam, crossbeam lifting mechanism, tool post, servo feeding mechanism, hydraulic system, numerical control system, lubrication system, protective cover and other parts.

Working environment of vtl Cnc Vertical Lathe

Power supply: three-phase AC, 380V±10﹪,50HZ±1HZ

Environment temperature: 5℃~40℃

Relative humidity: ≤90﹪

Cnc double column vertical lathe models:C5225/C5232/C5240/C5250/C5263

Maximum turning diameter:2500/3150/4000/5000/6300mm

Maximum processing height:


Maximum processing weight:10ton,20ton,32ton,50ton,100ton

Cnc double column vertical lathe

Technical specification of cnc double column vertical lathe C5225

1 Maximum turning diameter 2500mm

2 Maximum height of workpiece 1600/2000/2200/2500/3000 mm

3 Maximum weight of workpiece 10/20 t

4 Table diameter 2250 mm

5 Speed change of table 2~63 r/min

6 Maximum torque of table 63 KN/min

7 Vertical travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 1400 mm

9 Rotation range of tool post ±30° Degree

10 Power of main motor 55 kw

11 Machine weight (About) 32~38 t

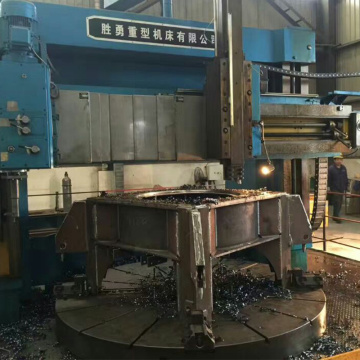

Recommend vtl cnc Vertical Lathes in workshop

Vtl cnc vertical lathes

Vtl cnc vertical lathes

Vtl cnc vertical lathes

Vtl cnc vertical lathes

Looking for ideal Vtl Cnc Vertical Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vtl Cnc Vertical Lathes are quality guaranteed. We are China Origin Factory of Cnc Double Column Vertical Lathe. If you have any question, please feel free to contact us.

Product Categories : Vertical Boring Mills

Product Images

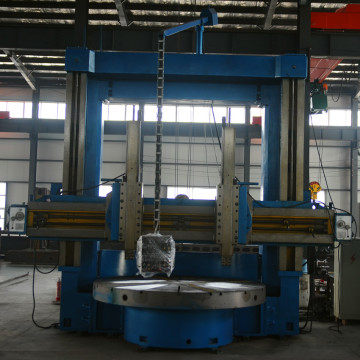

  • VTL cnc double column vertical lathe
