Favorites Large vertical turning lathe VTL machine C5263

    Unit Price: USD 50000.00 - 90000.00 / Set/Sets
    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days

Basic Info

Model No.: C5263

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: Artificial

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 6300mm

Maximum Height Of Workpiece: 4150mm

Maximum Weight Of Workpiece: 100ton

Table Diameter: 5750 Mm

Additional Info

Packaging: on request

Productivity: 5 set/month

Brand: Shengyong

Transportation: Ocean

Place of Origin: Hengshui City,Hebei Province

Supply Ability: 5 set/month

Certificate: ISO&CE

Product Description

 Large Vertical Turning Lathe VTL Machine is a universal vertical turning lathes, vertical turning lathes is extensively used in mechanical processing,such as metallurgical machinery, chemical machinery and power equipment. Vertical turning lathes can conduct cylindrical, inner hole, end face, inner and outer conical surface processing.The kinds of Large Vertical Lathe Machine is a advanced equipment with excellent performance. It can meet the strong cutting with high processing efficiency.

Performance and Feature of Large Vertical Turning Lathe VTL machine

High strength cast iron bed: using resin sand casting,

The casting surface accuracy is uniform with stable internal structure.

Lathe bed has enough rigidity and good vibration absorption and thermal stability.


Large Vertical turning lathe VTL machine model:

C5225/C5232/C5240/C5250/C5263

Maximum turning diameter:2500/3150/4000/5000/6300mm

Table diameter : 2500/3150/4000/5000/6300 mm

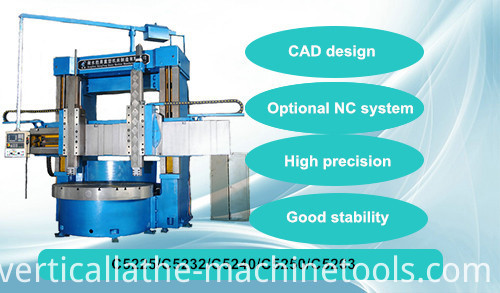

Vertical Turning Lathes

Technical specification of Double column vertical turning lathes VTL C5263

1 Maximum turning diameter 6300 mm
2 Maximum Height of workpiece 3150/3650/4150 mm
3 Maximum Weight of workpiece 50/80/100 t
4 Table diameter 4500/5750 mm
5 Speed range of table 0.5-50r/min
6 Maximum torque 1 60KN/min
7 Vertical Travel of tool post 1600 mm
8 Horizontal travel of tool post 3415 mm
9 Rotation angle of tool post -15°-±30°
10 Power of main motor 75kw
11 Overall dimensions(L×W×H) 12230×6800×6800 mm
12230×6800×7300 mm
12230×6800×7800 mm

Parts of Large vertical turning lathes VTL machine

Large Vertical Lathe Machine

Large Vertical Lathe Machine

Large Vertical Lathe Machine

Large Vertical Lathe Machine

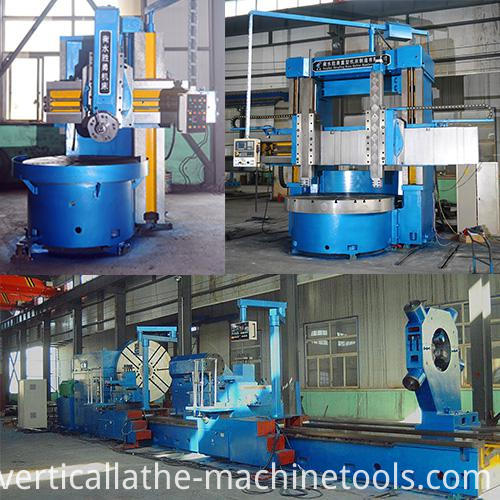

Workshop

Vertical Turning Lathes

Customer

Vertical Turning Lathes
