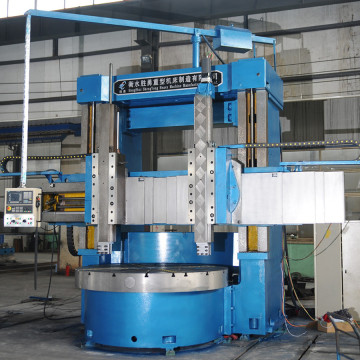

High efficiency CNC Metal vertical turning lathe

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CK5240

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Certification: ISO 9001

Condition: New

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Precision: Normal Precision

Table Diameter: Φ3150mm

Maximum Turning Diameter: Φ4000mm

Maximum Height Of Workpiece: 1600-3200mm

Maximum Weight Of Workpiece: 10/20/32ton

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set/month

Certificate: ISO9001

Port: Tianjin

Product Description

The machine is vertical type CNC turning lathes,vertical turning machines for sale are suitable for processing kinds of cast iron, steel and alloy, nonferrous metal, non-metallic materials and other parts, you can use the metal Turning Lathe Machine to process inside and outside the cylinder, inside and outside the cone, groove, thread, plane and a variety of rotating surface.

CNC turning lathes are designed on the basis of mechanical vertical lathe. It has inherited large load, high torque and high rigidity.The Metal Turning Lathe machine are made of cast iron structure with aging treatment. The structural performance is good and has higher rigidity and precision.
The CNC turning lathes can be widely used in automobile, motorcycle, textile and other mold manufacturing,aerospace, aviation and other related machinery manufacturing.

Cnc Turning Lathes

Technical parameters for vertical turning machines for sale CK5240
Table diameter:Φ3150 mm
Maximum turning diameter:Φ4000 mm
Maximum height of workpiece:1600-3200mm
Maximum weight of workpiece:10/20/32ton
Maximum cutting torque of table:63000 N.m
Step of table rotation:16 step/ Two gears stepless speed regulation
Speed range of table:2-40 r/min
Feed step:18 step/ Stepless speed regulation
Range of feed rates:0.25-90/0.1-1000 mm/min
Rapid travelling speed of tool post:1550/2000 mm/min
Beam travel:1250mm
Horizontal travel of tool post:2150mm
Vertical travel of tool post:1000/1250/1400/1600mm
Beam lifting speed:350 mm/min
Maximum rotation angle of tool post:±30°
Clamping size of tool chuck ( Width X Height):40×50mm
Power of main motor:55/75KW
Overall dimensions (L×W×H ) :6680×4600×4952 mm
Machine weight ( approx ):43-65ton
