Old and new Bullard vertical lathe manual

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5263

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Manual

Setting Mode: Table

Precision: Precision

Certification: ISO 9001

Condition: Used

Maximum Turning Diameter: 6300mm

Maximum Height Of Workpiece: 3150mm

Maximum Weight Of Workpiece: 50ton

Table Diameter: 4500mm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set/month

Certificate: ISO9001

Product Description

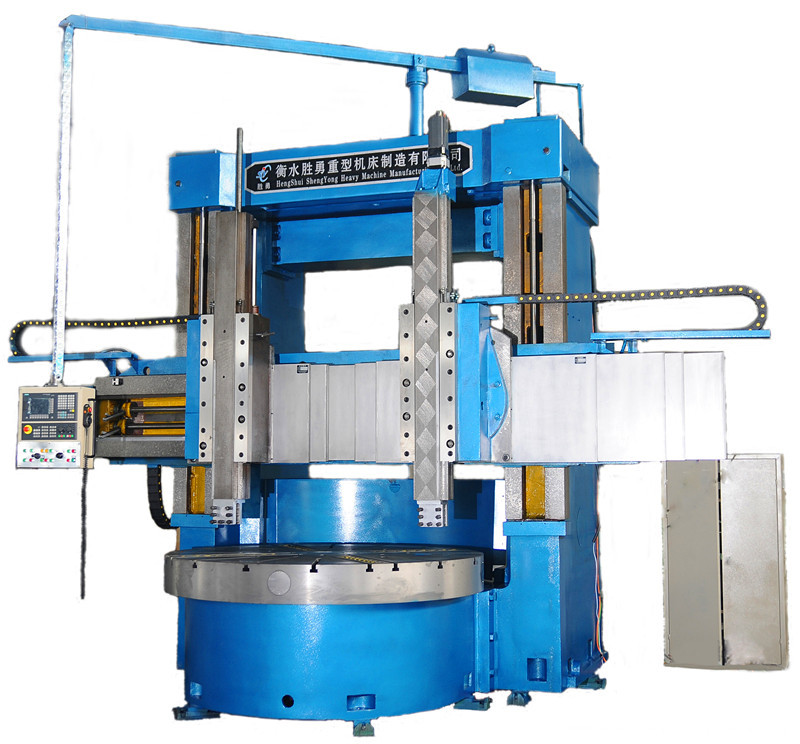

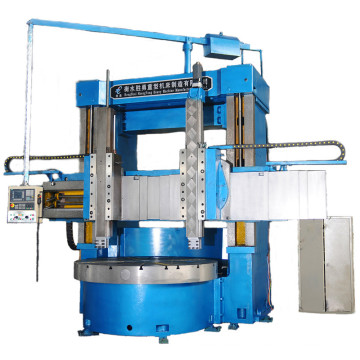

The machine is Bullard type double column vertical lathe. We use the advanced design and manufacturing technology to meet the strong cutting, workbench overweight load, dynamic and static precision, safe and reliable, long life, high efficiency requirements.

Features of Manual Bullard Vertical Lathe Machine

1 All guide faces are coated imported guideway soft belts, to lower the friction.

2 A wide range of options available: square ram, 5-position tool turret, square ram of lengthened travel range, model for machining motor housing specially, DRO (Digital readout), etc.

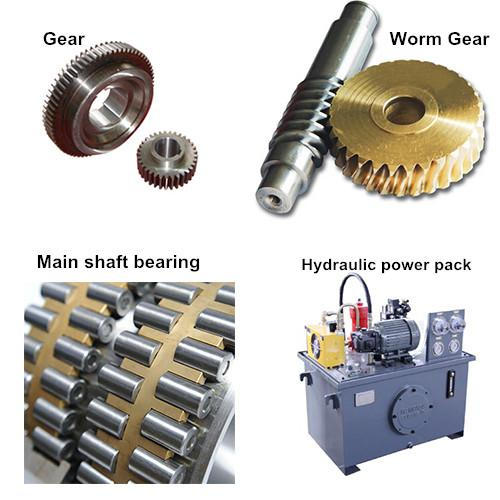

3 The machine is equipped with: Large-dia ball screws. ballscrew-supporting bearing. Import coupling.

4 Adopt high quality resin sand castings which had been treated a full heat treatment and a full stress-relieved process so that the machine can maintain its rigidity and precision for a long time.


Bullard Vertical Lathe Machine model:

C5225/C5232/C5240/C5250/C5263

Maximum turning diameter:2500/3150/4000/5000/6300mm

Table diameter : 2500/3150/4000/5000/6300 mmBullard VTL Manual

Technical specification of Bullard type manual Vertical Turning Lathe VTL C5263


1 Maximum turning diameter 6300 mm

2 Maximum Height of workpiece 3150/3650/4150 mm

3 Maximum Weight of workpiece 50/80/100 t

4 Table diameter 4500/5750 mm

5 Speed range of table 0.5-50r/min

6 Maximum torque 1 60KN/min

7 Vertical Travel of tool post 1600 mm

8 Horizontal travel of tool post 3415 mm

9 Rotation angle of tool post -15°-±30°

10 Power of main motor 75kw

11 Overall dimensions(L×W×H) 12230×6800×6800 mm

12230×6800×7300 mm

12230×6800×7800 mm

Bullard VTL ManualBullard VTL ManualBullard VTL ManualBullard VTL ManualBullard VTL ManualBullard VTL Manual

Looking for ideal Bullard VTL Manual Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Old Bullard Vertical Lathe are quality guaranteed. We are China Origin Factory of Bullard Vertical Lathe Parts. If you have any question, please feel free to contact us.

Product Categories : Vertical Lathe Machine

Product Images

  • Old and new Bullard vertical lathe manual
  • Old and new Bullard vertical lathe manual
  • Old and new Bullard vertical lathe manual
