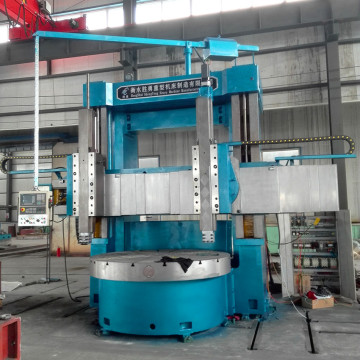

Quality guarantee for Vertical cnc lathe machine

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: C5232

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Certification: ISO 9001

Condition: New

Table Diameter: 2830mm

Precision: Normal Precision

Maximum Turning Diameter: 3200mm

Maximum Height Of Workpiece: 1600-3000mm

Maximum Weight Of Workpiece: 10/20/32ton

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set

Certificate: ISO9001

Port: Tianjin

Product Description

CNC machines have many types. What is a cnc machine of vertical type ? We want to introduce the kind vertical cnc machines :vertcal lathe to you.The main feature of vertical cnc machines structure is that its spindle is in a vertical position. the worktable is in the horizontal plane, and the installation and adjustment of the workpiece is convenient. The worktable is supported by a guide rail with good rigidity and steady cutting. There are several knife holders and can change tools quickly.

This series of vertical cnc machines are called vertical lathe, Our Cnc Vertical Lathe For Sale ,using advanced design and production technology,is specially applicable to hard alloy cutter and ceramic cutting tool,processing ferrous, non-ferrous metals and non-metallic parts.

CNC vertical lathe for sale

Double column Cnc Vertical Lathe for sale model:


Maximum turning diameter:2500/3200/4000/5000/6300mm

Technical specification of CNC vertical lathe for sale C5232

Table diameter:Φ2830 mm
Maximum turning diameter:Φ3200mm
Maximum height of workpiece:1600-3000mm
Maximum weight of workpiece:10/20/32ton
Maximum cutting torque of table:63000N.m
Step of table rotation:16 step/ Two gears stepless speed regulation
Speed range of table:2-63r/min
Feed step :18 step/ Stepless speed regulation
Range of feed rates :0.25-90/0.1-1000 mm/min
Rapid travelling speed of tool post :1550/2000mm/min
Beam travel:1250mm
Horizontal travel of tool post:1750mm
Vertical travel of tool post:1000/1250/1400/1600 mm
Beam lifting speed:350 mm/min
Maximum rotation angle of tool post:±30°
Clamping size of tool chuck ( Width X Height):40×50 mm
Power of main motor:55 KW
Overall dimensions (L×W×H ):5880×4600×4952mm
Machine weight ( approx ):36-50ton

Recommend CNC vertical lathe for sale

 CNC vertical lathe for sale

CNC vertical lathe for sale

CNC vertical lathe for sale

CNC vertical lathe for sale

Looking for ideal Vertical Cnc Machines Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the CNC Vertical Lathe for Sale are quality guaranteed. We are China Origin Factory of What is a Cnc Machine. If you have any question, please feel free to contact us.
