2016 new product large cnc turning lathe machine

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5240

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 4000 Mm

Maximum Height Of Workpiece: 1600mm

Maximum Weight Of Workpiece: 32ton

Table Diameter: 3150mm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

2016 new product large cnc Turning Lathe MachineLarge cnc turning

Features of 2016 new product large cnc turning Lathe Machine

1 It adopts AC servo motor, import drive and bell lead screw to change general type to CNC one.

2 Main transmission adopts AC servo motor through 16 steps spindle speed mechanism to perform speed range of table.

Technical specification of 2016 new product large cnc turning lathe machine C5240

1 Maximum turning diameter 4000 mm

2 Maximum Height of workpiece 1600/2000/2500/3000 mm

3 Maximum Weight of workpiece 10/20/32 t

4 Table diameter 3150 mm

5 Speed range of table 2-63 r/min

6 Maximum torque 63 KN/min

7 Vertical Travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 2150 mm

9 Rotation angle of tool post ±30° degree

10 Power of main motor 55/75

11 Machine weight(about) 42-58t

12 Overall dimensions(L×W×H) 8010×4400×4680mm

8010×4400×5080mm

8010×4400×5600mm

8010×5569×6230mm

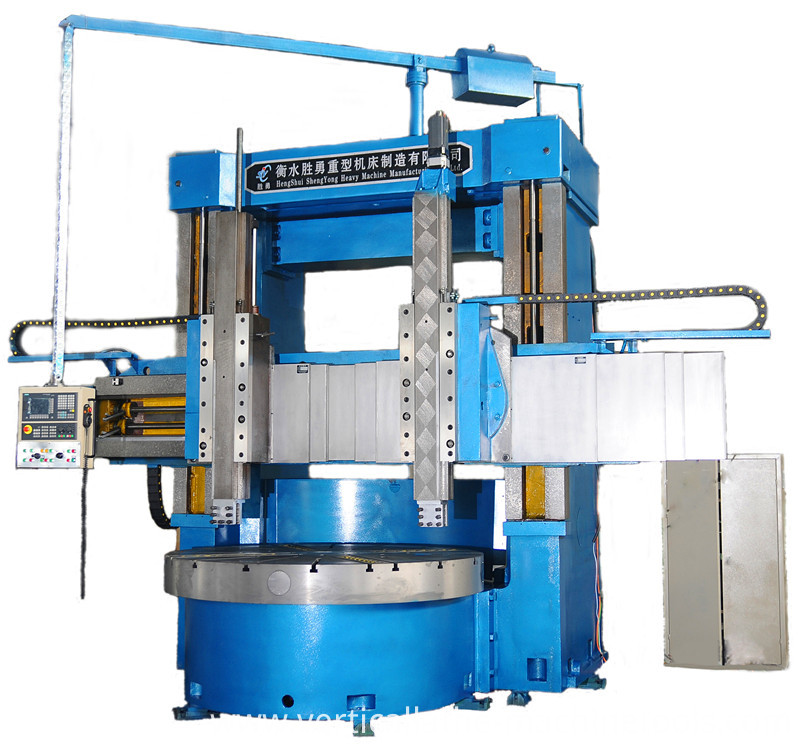

Large cnc turning

Large cnc turningLarge cnc turningLarge cnc turningLarge cnc turningLarge cnc turningLarge cnc turning

Looking for ideal Large Cnc Turning Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Large Cnc Lathe are quality guaranteed. We are China Origin Factory of Large Part CNC Machining. If you have any question, please feel free to contact us.
