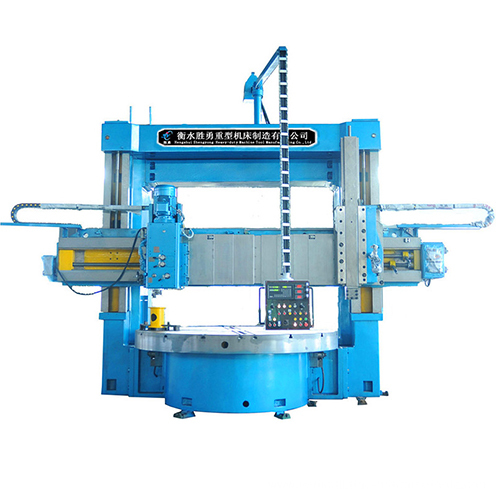

Taiwan Spindle Quality CNC Vertical Lathe Machine Product

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5232

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 3150mm

Maximum Height Of Workpiece: 3000mm

Maximum Weight Of Workpiece: 20 Ton

Table Diameter: 2830mm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

Vertical CNC lathes are with high speed, high torque, high rigidity and other characteristics, mainly for processing hubs, brake drums and other types of short-axis, disk parts. Quality machine products vertical cnc machine can be turning thread, arc, cone, rotary body, inside and outside the surface, suitble for processing complex shape of small and medium-sized parts.

Quality vertical cnc lathe machine features:

1 The base adopts square box closed structure, the thin-wall ribbed arrangements, section forms are symmetric and good structure stability.

2  Rigid structure, Large torque can meet the demand for heavy cutting.

3  Integrated automatic lubrication system make the maintenance more easier.

4  Can form a production unit, used for automatic production line.

Vertical CNC Machines

Technical specification of Vertical Cnc Lathe Machine C5232

1 Maximum turning diameter 3150 mm

2 Maximum Height of workpiece 1600/2000/2200/2500/3000 mm

3 Maximum Weight of workpiece 10/20 t

4 Table diameter 2830 mm

5 Speed range of table 2-63 r/min

6 Maximum torque 63 KN/min

7 Vertical Travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 1735 mm

9 Rotation angle of tool post ±30° degree

10 Power of main motor 55 kw

11 Machine weight About 36-50 t

Parts of Taiwan Spindle Quality CNC Vertical Lathe Machine Product

Vertical CNC Machines



  Vertical CNC MachinesVertical CNC MachinesVertical CNC Machines
