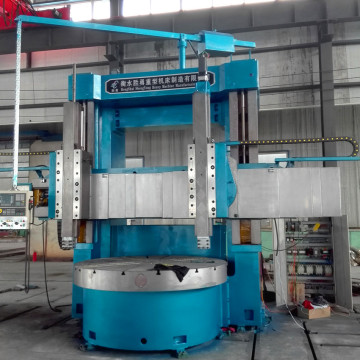

Metal processing cutting tools of vertical lathe

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5240

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: Artificial

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 4000 Mm

Maximum Height Of Workpiece: 3000 Mm

Maximum Weight Of Workpiece: 32 Ton

Table Diameter: 3150 Mm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Vertical lathe is a metal turning cutting tools, suitable for processing all kinds of complex shape of shaft, sleeve, disc type parts, such as turning the inner and outer cylindrical surface, circular surface,conical surface ,threading and grooving.
What is the structure features of vertical lathe ? Here we want to introduce double column vertical lathe structure.Vertical layout makes the machine features large loading,high efficiency, high speed and easy maintenance.Most parts of vertical lathe structure has been finite element optimal designed.Double column structure is composed of vertical lathe table and base, gantry frame, transmission box, crossbeam, left and right tool holder, left and right feeding box and so on. Vertical lathe table adopts hydrostatic guideway with high precision bearing, which increases the carrying capacity and improves the rotary accuracy. The machine adopts sliding surface guide rail, and through visco plastic processing, improve the wear resistant of the rail.
Vertical Lathe Structure

Technical specification of Turning cutting tools of vertical lathe C5240

Table diameter:Φ3150mm
Maximum turning diameter:Φ4000mm
Maximum height of workpiece:1600-3200mm
Maximum weight of workpiece:10/20/32 T
Maximum cutting torque of table:63000N.m
Step of table rotation:16 step/ Two gears stepless speed regulation
Speed range of table:2-40r/min
Feed step :18 step/ Stepless speed regulation
Range of feed rates: 0.25-90/0.1-1000mm/min
Rapid travelling speed of tool post :1550/2000mm/min
Beam travel:1250mm
Horizontal travel of tool post :2150mm
Vertical travel of tool post:1000/1250/1400/1600 mm
Beam lifting speed:350 mm/min
Maximum rotation angle of tool post:±30°
Clamping size of tool chuck ( Width X Height):40×50 mm
Power of main motor:55/75KW
Overall dimensions (L×W×H ):6680×4600×4952mm
Machine weight ( approx ):43-65ton

More types of Vertical Lathes

Vertical lathe structure

Vertical lathe structure

Vertical lathe structure

Vertical lathe structure

Looking for ideal Turning Cutting Tools Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Lathe Table are quality guaranteed. We are China Origin Factory of Vertical Lathe Structure. If you have any question, please feel free to contact us.
