Large vertical turret lathe sale machine shop

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: C5240

Type: Horizontal Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 4000mm

Maximum Height Of Workpiece: 3000mm

Maximum Weight Of Workpiece: 32ton

Table Diameter: 3150 Mm

Additional Info

Packaging: as request

Productivity: 5 set

Brand: hengshui shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

We are glad to introduce our Large Vertical Turret Lathe tooling C5240 to you. Large vertical turret lathe is 4 meters double column vertical lathe. The kind of vertical turret lathe tooling is mainly applied to processing disk parts within 4 meters, such as :flange. It has manual vertical turret lathe and numerical control system Lathe Machine. Manual vertical turret lathe has larger engagement, suitable for rough machining.While CNC Lathe Machine has smaller engagement,suitable for finely processing high precision workpiece.

Processing range of Large vertical turret lathe for sale:

Large vertical turret lathe tooling apply to process Various short shaft, disk type parts , turning all sorts of thread,circular arc,inside and outside surface,end surface ,grove ,drilling ,expanding ,hinge ,etc. It is applicable to complicated shape of medium and small batch parts processing , and high consistency requirement of large parts processing .

Large vertical lathe for sale

Technical specification of Large vertical lathe tooling for sale C5240

1 Maximum turning diameter 4000 mm

2 Maximum Height of workpiece 1600/2000/2500/3000 mm

3 Maximum Weight of workpiece 10/20/32 t

4 Table diameter 3150 mm

5 Speed range of table 2-63 r/min

6 Maximum torque 63 KN/min

7 Vertical Travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 2150 mm

9 Rotation angle of tool post ±30° degree

10 Power of main motor 55/75

11 Machine weight(about) 42-58t

12 Overall dimensions(L×W×H) 8010×4400×4680mm

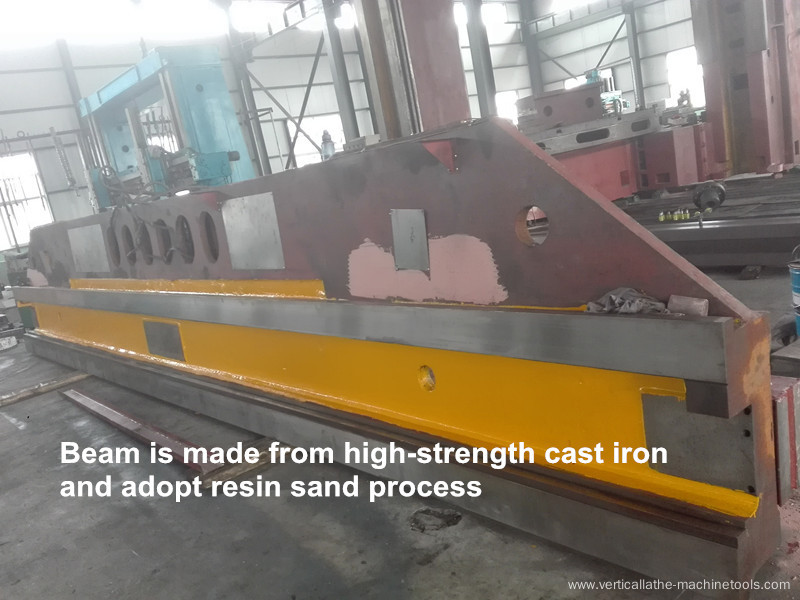

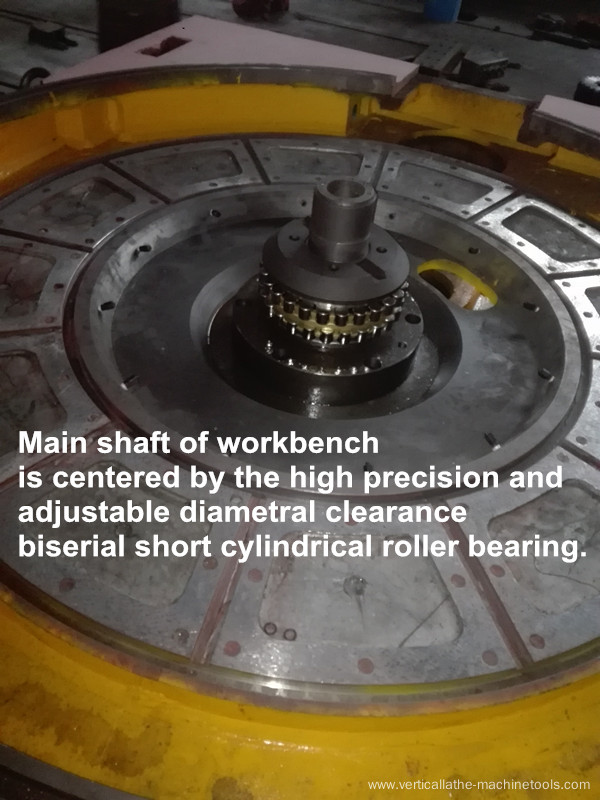

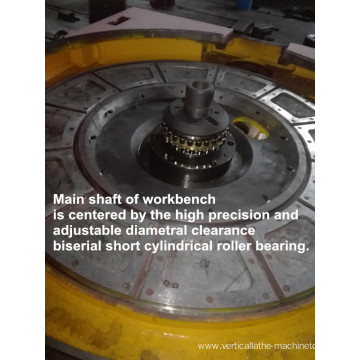

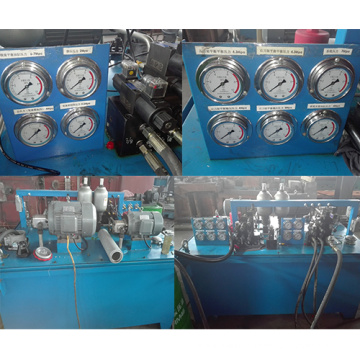

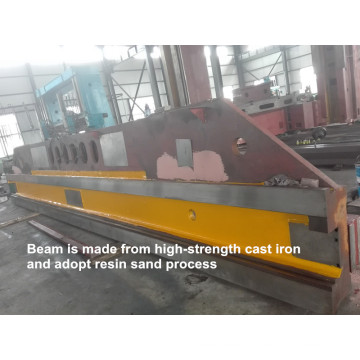

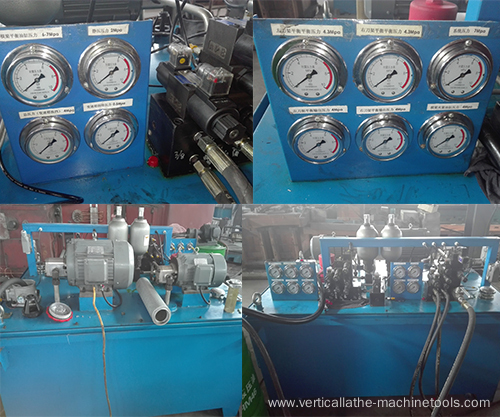

Parts of Vertical turret lathe tooling

Parts of Vertical turret lathe toolingParts of Vertical turret lathe toolingParts of Vertical turret lathe tooling

Vertical turret lathe machine shop

Vertical turret lathe machine shopVertical turret lathe machine shop
