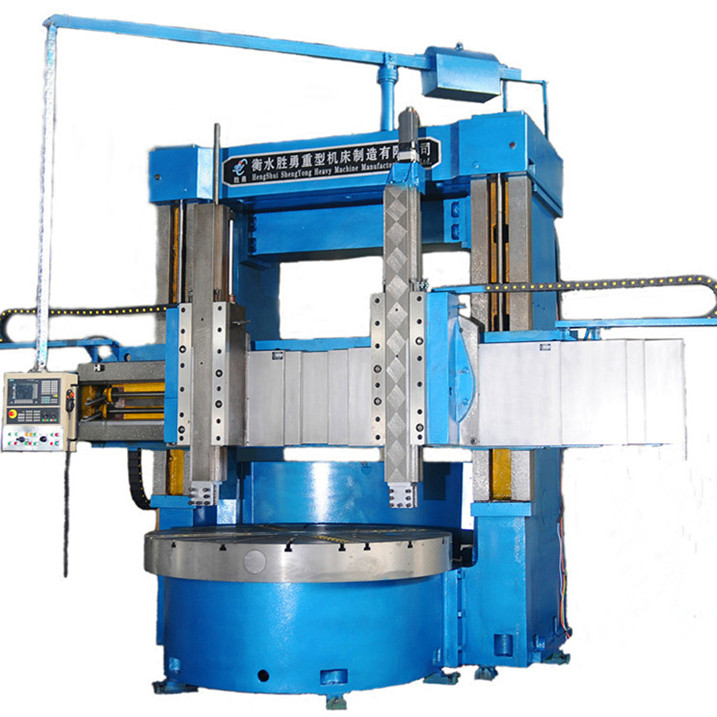

Large size vertical lathes machine

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: C5225

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Manual

Controlling Mode: Artificial

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 2500mm

Maximum Height Of Workpiece: 3000mm

Maximum Weight Of Workpiece: 20ton

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

Vertical Lathe Machine belongs to large mechanical equipment.The vertical lathe series can be used to process large and heavy work pieces with large radial size, relatively small axial size and complex shape.Vertical Lathe Machine is widely used in automobile manufacturing, logistics, molds, machinery and other departments, due to its wide range of applications.
Vertical lathe machine can meet the requirements of different mass consumption with high efficiency and stability and stability.Large size Vertical Lathes are appropriate for ferrous/non-ferrous and non-metal material,processing roughly/finely upon inside/outside cylindrical surfaces, inside and outside conic surfaces, flat and curved surfaces and so on.The vertical lathe series can be divided into ingle column vertical lathe and double column vertical lathe.We can supply low price vertical lathes at appropriate configuration.Vertical lathe machine can perform the turning tasks automatically, precisely and efficiently. Large size vertical lathes can carry out the heavy machining of heavy cutting.

Large size vertical lathes

Technical specification of Large size vertical lathes C5225

1 Maximum turning diameter 2500mm

2 Maximum height of workpiece 1600/2000/2200/2500/3000 mm

3 Maximum weight of workpiece 10/20 t

4 Table diameter 2250 mm

5 Speed change of table 2~63 r/min

6 Maximum torque of table 63 KN/min

7 Vertical travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 1400 mm

9 Rotation range of tool post ±30° Degree

10 Power of main motor 55 kw

11 Machine weight (About) 32~38 t

Recommend other Low price vertical lathes

Low price vertical lathes

Low price vertical lathes

Low price vertical lathes

Looking for ideal Large Size Vertical Lathes Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Lathe Series are quality guaranteed. We are China Origin Factory of Low Price Vertical Lathes. If you have any question, please feel free to contact us.

Product Categories : Vertical Lathe Machine

Product Images

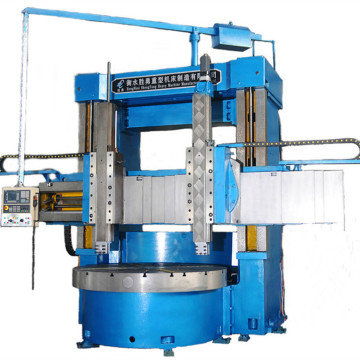

  • Large size vertical lathes machine
