Fine quality vertical lathes products

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: C5232

Type: Vertical Lathe

Processing Accessory: Centre CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: Artificial

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 3150mm

Maximum Height Of Workpiece: 3000mm

Maximum Weight Of Workpiece: 20ton

Table Diameter: 2830mm

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

As the Vertical Lathes provider,we have a seies of product list vertical lathes.Here wa want to introduce double column vertical lathe to you.The CNC lathe products, suitable for machining in various mechanical industries. The CNC lathe products has two vertical tool holders.CNC lathe products can be used for the machining of inner and outer cylindrical surfaces, inner and outer taper surfaces, end faces, cutting grooves, threads and rotary curved surfaces.

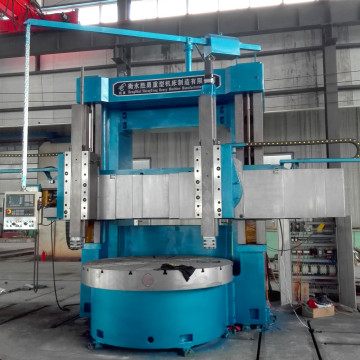

Double column vertical lathe is a high-tech, highly automated machine tool. The kind of cnc lathe products are suitable for hydropower, thermal power, nuclear power, military, energy, metallurgy, ships, transportation, building materials and other industries.
Cnc Lathe Products

Technical specification of C5232 by vertical lathes provider

Table diameter:Φ2830 mm
Maximum turning diameter:Φ3200 mm
Maximum height of workpiece:1600-3000mm
Maximum weight of workpiece:10/20/32ton
Maximum cutting torque of table:63000 N.m
Step of table rotation:16 step/ Two gears stepless speed regulation
Speed range of table:2-63r/min
Feed step:18 step/ Stepless speed regulation
Range of feed rates:0.25-90/0.1-1000 mm/min
Rapid travelling speed of tool post:1550/2000 mm/min
Beam travel:1250mm
Horizontal travel of tool post:1750mm
Vertical travel of tool post:1000/1250/1400/1600mm
Beam lifting speed:350 mm/min
Maximum rotation angle of tool post:±30°
Clamping size of tool chuck ( Width X Height):40×50 mm
Power of main motor:55KW
Overall dimensions (L×W×H ):5880×4600×4952 mm
Machine weight ( approx ):36-50 ton

A series of product list vertical lathes in factory

Product list vertical lathes

Product list vertical lathes

Product list vertical lathes

Product list vertical lathes
