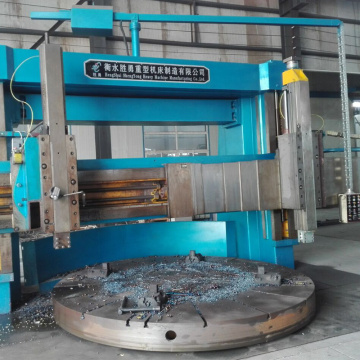

Double column new cnc vertical turret lathe

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: CK5240

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 4000mm

Table Diameter: 3150mm

Maximum Height Of Workpiece: 1600mm

Maximum Weight Of Workpiece: 32000kg

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Vtl CNC Vertical Turret Lathe is mainly used to process rotating parts such as shafts and disks, such as turning inside and outside cylindrical surfaces, conical surfaces, rotating curved surfaces and end faces, as well as machining internal and external threads.

Vtl cnc Vertical Turret Lathe is the ideal choice in the automotive, aviation, textile and other industries.The main components, such as the spindle, base, beams are optimized design.Key components such as turret, chuck, ball screw are well-known manufacturers to ensure that the machine has a high precision and high stiffness.Vtl cnc vertical turret lathe has Independent hydraulic station and independent electric cabinets,thus vertical turret lathe maintenance is convenient.

As the kinds of vtl cnc vertical turret lathe supplier, fully independent research and development, installation, commissioning, training and vertical turret lathe maintenance service are offered by us.

Vtl cnc vertical turret lathe

Technical specifications of Vtl cnc vertical turret lathe CK5240

Table diameter:Φ3150 mm

Maximum turning diameter:Φ4000 mm

Maximum height of workpiece:1600-3200mm

Maximum weight of workpiece:10/20/32ton

Maximum cutting torque of table:63000 N.m

Step of table rotation:Two gears stepless speed regulation

Speed range of table:2-40 r/min

Feed step:Stepless speed regulation

Range of feed rates:0.1-1000mm/min

Rapid travelling speed of tool post:1550/2000mm/min

Beam travel:1250mm

Horizontal travel of tool post:2150mm

Vertical travel of tool post:1000/1250/1400/1600mm

Beam lifting speed:350 mm/min

Maximum rotation angle of tool post:±30°

Clamping size of tool chuck ( Width X Height):40×50mm

Power of main motor:55/75 KW

Overall dimensions (L×W×H ) :6680×4600×4952mm

Machine weight ( approx ):43-65ton

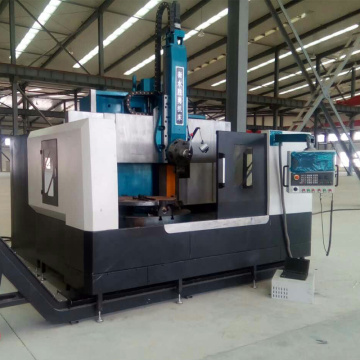

Recommend more vertical turret lathe images in workshop

Vertical turret lathe images

Vertical turret lathe images

Vertical turret lathe images

Vertical turret lathe images

Looking for ideal Vtl Cnc Vertical Turret Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Turret Lathe Maintenance are quality guaranteed. We are China Origin Factory of Vertical Turret Lathe Images. If you have any question, please feel free to contact us.
