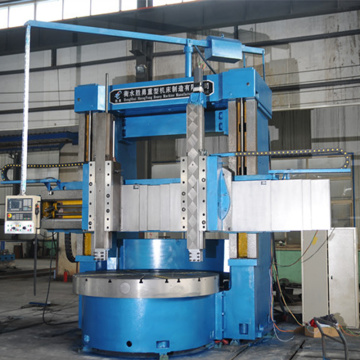

Numerical control vertical turning lathe

Numerical control vertical lathe is double column vertical lathe.The kind of numerical control lathe not only can process workpiece inner hole, cylindrical surface, end surface,as well as processing large cone surface,some arc surface.Numerical control vertical lathe tool`s character is that its vertical tool rest can move horizontally and vertically synchronouslyand has the two-axis linkage feed function.

Numerical control Vertical Lathe Machine characteristics:

1 The right turret is NC turret, and the left turret is ordinary turret.

2 High quality castings are treated by heat aging.

3 Independent electric cabinets with high reliability.

4 Independent hydraulic station with adjust maintenance and convenient maintenance.

Numerical control lathe features convenien clamping ,easy programming system and simple operation.Numerical control vertical lathe is the ideal mechanical processing equipment for complex rotary parts and disc type parts.

Technical parameters of Numerical control Vertical Turning Lathe CK5250

Table diameter:Φ4500 mm

Maximum turning diameter:Φ5000 mm

Maximum height of workpiece:2500-4200mm

Maximum weight of workpiece:32/50ton

Maximum cutting torque of table:105000N.m

Step of table rotation:Two gears stepless speed regulation

Speed range of table:0.5-27r/min

Feed step:Stepless speed regulation

Range of feed rates:0.1-1000mm/min

Rapid travelling speed of tool post:2000mm/min

Beam travel:2150mm

Horizontal travel of tool post:2700mm

Vertical travel of tool post:1400/1600mm

Beam lifting speed:380mm/min

Maximum rotation angle of tool post:±30°

Clamping size of tool chuck ( Width X Height):60×65mm

Power of main motor:75KW

Machine weight ( approx ):92-105ton
