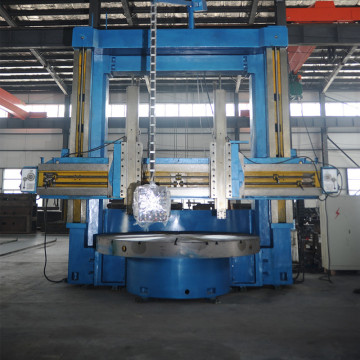

Double column cnc vertical turret lathes

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.:  K5235

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 2830mm

Maximum Turning Diameter: Φ3200mm

Maximum Height Of Workpiece: 1600-3000mm

Maximum Weight Of Workpiece: 10/20/32ton

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Double column cnc Vertical Turret Lathes is a kind cnc lathes,which can be used for the outer circle, inner hole, end face and arc curved surface of workpiece. The cnc lathe for sale is a double column gantry structure, with two vertical turret, the right vertical turret is CNC turret, another left vertical turret turret can be used for rough or finish machining.Double column cnc vertical turret lathes are composed of left, right column, connecting beam, top beam, worktable and base. The cnc vertical turret lathes has strong rigidity and can bear heavy load when cutting.
cnc vertical turret lathes have very good performance:
1Worktable has the characteristics of high rotation accuracy, large carrying capacity and small thermal deformation.

2 The sliding surface of guideway is treated by sticking plastic to improve the wear resistance.

3 Vertical Turret Lathe is very convenient to use centralized oil supply for guide rail lubrication.

Cnc vertical turret lathes

Double column cnc vertical turret lathes K5235 technical reference
Table diameter:Φ2830mm
Maximum turning diameter:Φ3200mm
Maximum height of workpiece:1600-3000mm
Maximum weight of workpiece:10/20/32ton
Maximum cutting torque of table :63000N.m
Step of table rotation:16 step/ Two gears stepless speed regulation
Speed range of table:2-40r/min
Feed step :18 step/ Stepless speed regulation
Range of feed rates :0.25-90/0.1-1000 mm/min
Rapid travelling speed of tool post :1550/2000mm/min
Beam travel:1250mm
Horizontal travel of tool post :1900mm
Vertical travel of tool post:1000/1250/1400/1600 mm
Beam lifting speed:350 mm/min
Maximum rotation angle of tool post:±30°
Clamping size of tool chuck ( Width X Height):40×50 mm
Power of main motor:55 KW
Overall dimensions (L×W×H ):6180×4600×4952mm
Machine weight ( approx ):38-62ton
Recommend more cnc vertical turret lathes types in workshop

Cnc vertical turret lathes

Cnc vertical turret lathes

Cnc vertical turret lathes

Cnc vertical turret lathes

Looking for ideal Cnc Vertical Turret Lathes Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Cnc Lathe for Sale are quality guaranteed. We are China Origin Factory of Vertical Turret. If you have any question, please feel free to contact us.
