Used vertical turning lathe machine C5120

    Unit Price: 50000~90000 USD
    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days

Basic Info

Model No.: C5120

Additional Info

Packaging: on request

Productivity: 5 set/month

Brand: Shengyong

Transportation: Ocean

Place of Origin: Hengshui City,Hebei Province

Supply Ability: 5 set/month

Certificate: ISO&CE

Product Description

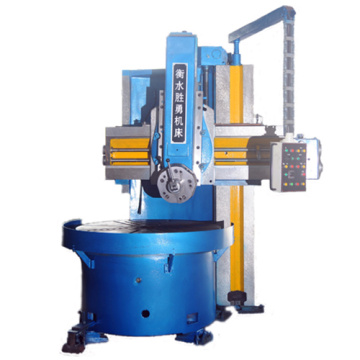

Product name: Used Vertical Turning Lathe Machine C5120

Features of Vertical Turning Lathe VTL Machine

1 The Bed Casting is handled by vibration ageing,improving accuracy, rigidity and performance of Lathe Machine.

2 Excellent electrical components and hydraulic components come from the famous factory,including the domestic big factories and foreign manufacturers.

3 High-precision gears are with low noise and stable operation

Vertical Turning Lathe VTL machine model:

C5112/C5116/C5118/C5120/C5123/C5125/C5126

C5225/C5232/C5240/C5250/5263/ C5235

Used Vertical Lathe

Technical specification of Vertical turning lathe VTL machine C5120

1 Table diameter 1800 mm
2 Maximum turning diameter 2000 mm
3 Maximum height of workpiece 1200 mm
4 Maximum weight of workpiece 6 t
5 Speed change of table 2.5-80 r/min
6 rotation speed of work table 16
7 Feed rates 0.8-86 mm/min
8 Step 12
9 Horizontal travel of tool post 1000 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutter bar 1000 mm
11 Crossrail travel 700 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 30 kw
revolutions 1470 r/min
14 Power of Feed motor 1.3/1.7 kw
Revolutions 940/1440 r/min
15 Machine weight 17.5 t
16 Overall dimensions(L×W×H) 3100×3000×3850 mm

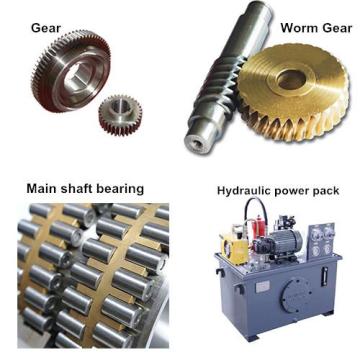

Accessories

Used Vertical Lathe

Warehouse

Used Vertical Lathe


Workshop

Used Vertical Lathe

Customer

Used Vertical Lathe

Looking for ideal Used Vertical Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Used Lathes Machinery are quality guaranteed. We are China Origin Factory of Used Vertical Lathes. If you have any question, please feel free to contact us.
