Manual metal vertical turning lathe

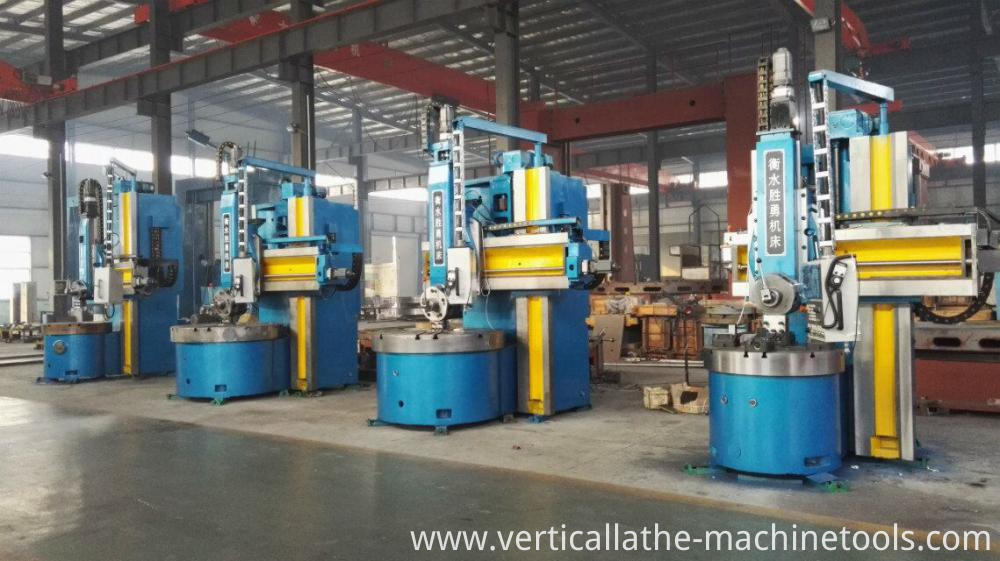

Manual metal Vertical Turning Lathe is a kind of double column vertical lathe with turning on a lathe, which is widely used in the field of chemical industry, power generating equipment and other metal turning process can be turning on a lathe. The Metal Turning Process can be used for rough and fine turning of outer cylinder,inner hole,end surface and tapered of work-pieces. The machine frame is composed of right and left columns,head beam and table base,has strong stiness,which can bear the cutting load.

Casting alloy anti-abrasive plates are lined on the table surface.The oil is precced between guideaways so as to raise the loading capacapacity of worktable.

Technical specification of Excellent performance Manual metal vertical turning lathe C5126

1 Table diameter 2300mm

2 Maximum turning diameter 2600mm

3 Maximum Height of workpiece 1300mm

4 Maximum Weight of workpiece 10t

5 Speed range of table 2.5-80r/min

6 Working table Step of rotation speed 16

7 Range of feed rates 0.8-86 mm/min

8 Step 12

9 horizontal travel of vertical slide 1600 mm

Vertical travel of vertical slide 915 mm

10 Horizontal travel of side tool post 750 mm

Vertical travel of side tool post 900 mm

11 Crossrail travel 850 mm

12 Maximum size of tool bar section 35×45 mm

13 Power of main motor 37 kw

Rotating Speed 1470 r/min

14 Power of feed motor 1.3/1.7 kw

Rotating Speed 940/1440 r/min

15 Machine weight(Approx) 19.5 t

16 Overall dimensions(L ×W×H) 3450x3430x4100 mm
