Payment Type: | L/C |
---|---|
Incoterm: | FOB |
Min. Order: | 1 Set/Sets |
Model No.: C5112
Brand: Shengyong
Type: Vertical Lathe
Processing Accessory: Chuck CNC Lathe
Guide Rail: Horizontal Guide Rail
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Manual
Controlling Mode: CNC
Automatic Grade: Automatic
Setting Mode: Table
Precision: Precision
Certification: ISO 9001
Condition: New
Maximum Height Of Workpiece: 1000mm
Range Of Feed Rates: 0.8-86 Mm/min
Table Diameter: 1000mm
Maximum Turning Diameter: 1250mm
Maximum Weight Of Workpiece: 3.2ton
Speed Range Of Table: 6.3-200r/min
Step Of Table Rotation: 16
Step: 12
Horizontal Travel Of Vertical Slide: 700mm
Vertical Travel Of Vertical Slide: 650mm
Packaging: 1x40'ft container
Productivity: 5 set
Transportation: Ocean
Place of Origin: China
Supply Ability: 5 set /month
Certificate: ISO9001
Payment Type: L/C
Incoterm: FOB

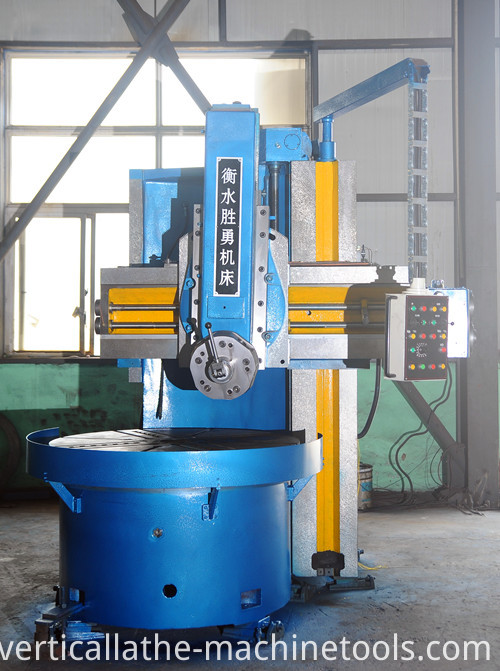

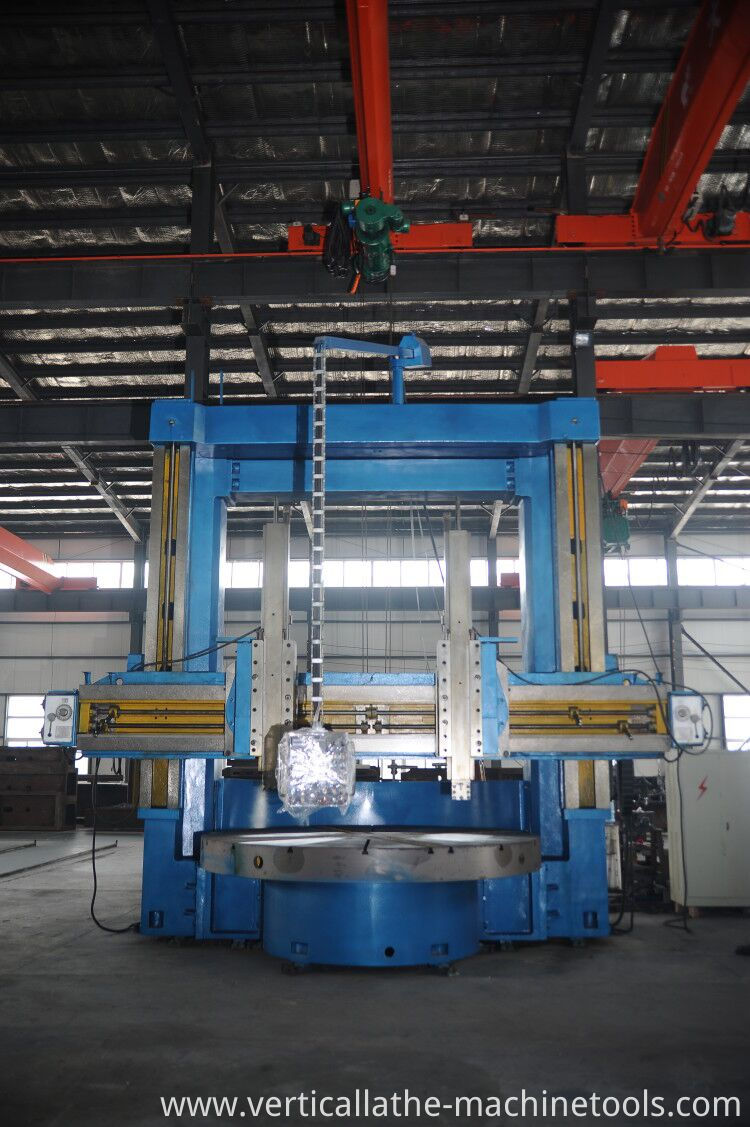

We would like to introduce our variable speed cnc metal cutting lathe to you. It is CNC Vertical Lathe Machine. Cnc Vertical Lathe is two axis linked control Vertical Lathes machine. The Lathe Machine has a good performance of thread cutting and constant linear speed cutting. It can be turning conical surface and circular surface. The lathe machine is particularly suitable for processing motor cover, wheels, brake hub, and other minor categories, pump, disc-type parts. It is the preferred equipment automobile, agricultural machinery, construction machinery, electrical and other industries parts machining.
Vertical lathe is suitable for finely and roughly all kinds of ferrous, nonferrous metal workpiece for high speed steel`s tools and hard alloy tools. The machine can be carried out turning inner&outer cylinder surface,cone surface, grooving, drilling,tapping and reaming etc process machining.
Technical specification of Variable speed cnc metal cutting lathe C5118
1 Table diameter 1400 mm
2 Maximum turning diameter 1800 mm
3 Maximum height of workpiece 1000 mm
4 Maximum weight of workpiece 5 t
5 Speed change of table 5-160 r/min
6 Working table Step of rotation speed 16
7 Feed rates 0.8-86 mm/min
8 Step 12 step
9 Horizontal travel of tool post 1000 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutter bar 900 mm
11 Crossrail travel 650 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 30 kw
revolutions 1470 r/min
14 Power of Feed motor 1.3/1.7 kw
Revolutions 940/1440 r/min
15 Machine weight 17.5 t
16 Overall dimensions(L×W×H) 2900×2900×3800 mm

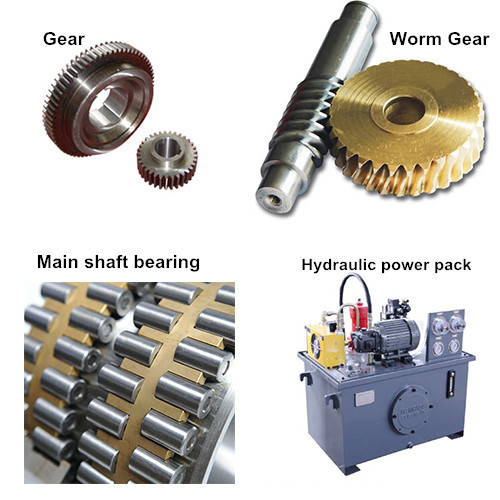

Parts of Variable speed cnc metal cutting lathe
