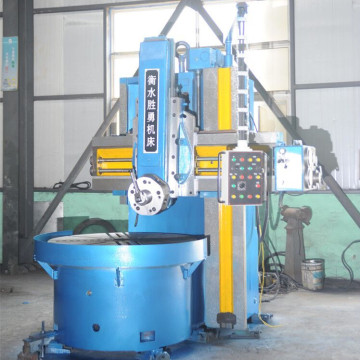

Cheap vertical lathe machine for sale

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5126

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 2300mm

Maximum Turning Diameter: 2600mm

Maximum Height Of Workpiece: 1300mm

Maximum Weight Of Workpiece: 10 Ton

Power Source: Manual

Controlling Mode: Artificial

Automatic Grade: Manual

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Wnat to buy Cheap Vertical Lathes in China ? Here we want to recommend our Economical Vertical Lathe to you.The cheap vertical lathe is single column vertical lathe, the kind of cheap vertical lathe is suitable for hard alloy and ceramic cutting tool of ferrous metals, non-ferrous metals and some non-metallic parts of inner and outer cylinder, inner and outer cylindrical cone and grooving,rotary surface of rough and fine processing.
The Economical vertical lathe main has AC motor drive, and the speed range of the worktable is achieved by the 16 spindle speed change mechanism.Sliding surface is treated by artificial scraping research to ensure its good rigidity.Casting use high quality lost foam resin sand casting process, and after aging treatment, to extend the service life and increase the quality of machine tools.Economical vertical lathe is specially designed for disk shaped part, shell and flange.

Cheap Vertical Lathe

Technical specification of economical vertical lathe for sale C5126

1 Table diameter 2300mm

2 Maximum turning diameter 2600mm

3 Maximum Height of workpiece 1300mm

4 Maximum Weight of workpiece 10t

5 Speed range of table 2.5-80r/min

6 Working table Step of rotation speed 16

7 Range of feed rates 0.8-86 mm/min

8 Step 12

9 horizontal travel of vertical slide 1600 mm

Vertical travel of vertical slide 915 mm

10 Horizontal travel of side tool post 750 mm

Vertical travel of side tool post 900 mm

11 Crossrail travel 850 mm

12 Maximum size of tool bar section 35×45 mm

13 Power of main motor 37 kw

Rotating Speed 1470 r/min

14 Power of feed motor 1.3/1.7 kw

Rotating Speed 940/1440 r/min

15 Machine weight(Approx) 19.5 t

16 Overall dimensions(L ×W×H) 3450x3430x4100 mm

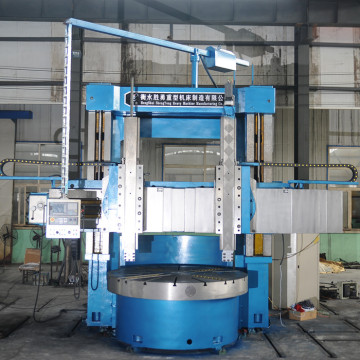

Recommend cheap vertical lathes in factory

Cheap Vertical Lathes


Cheap Vertical Lathes

Cheap Vertical Lathes

Cheap Vertical Lathes

Looking for ideal Cheap Vertical Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Cheap Vertical Lathes are quality guaranteed. We are China Origin Factory of Economical Vertical Lathe. If you have any question, please feel free to contact us.
