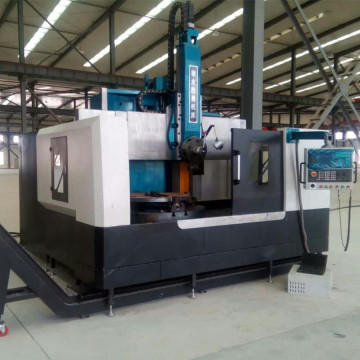

2 meter table vertical cnc lathe price

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CK5123

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 2000mm

Maximum Turning Diameter: 2300mm

Maximum Height Of Workpiece: 1300mm

Maximum Weight Of Workpiece: 8 Ton

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

2 meter table Vertical Lathe Cnc for sale is a high-performance, wide range of processes, advanced equipment. Since 2010, our company started to develop and produce Cnc Vertical Lathe and vertical lathe components for sale. Based on the advanced vertical lathe components design and manufacturing technology from home and abroad, we adopt the latest design concept and combine the deep enterprise culture of Qiqihar Vertical Lathe Machine tool.

Single column vertical lathe cnc for sale is applicable to the outer cylindrical surface, conical surface,grooving and cutting.Vertical lathe cnc for sale can meet the needs of processing needed, especially for small and medium sized ring parts, disk parts such as shell and flange..
Vertical lathe components include table,base,gantry column,turret ,ram and electric system etc.The table can retain 16 transmission and can also use frequency stepless speed regulation.Base is made of resin sand integral casting structure and strengthened with symmetrical reinforcement. Casting is treated by strict manual aging and vibration aging, to ensure the rigidity and stability of the machine.Finite element design makes whole vertical lathe components has high rigidity, high strength, high vibration resistance.
Single column vertical lathe cnc for sale

Vertical Lathe Cnc For Sale

Technical specification of vertical lathe CK5123

1 Table diameter 2000mm

2 Maximum turning diameter 2300mm

3 Maximum height of workpiece 1300mm

4 Maximum weight of workpiece 8 t

5 Speed change of table 2.5-80 r/min

6 Working table Step of rotation speed 16

7 Feed rates 0-1000 mm/min

8 Step stepless

9 Horizontal travel of tool post 1250mm

Vertical travel of tool post 915mm

10 Horizontal travel of side cutter bar 650mm

Vertical travel of side cutter bar 1000mm

11 Crossrail travel 750mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 30 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Machine weight 19.5 t

16 Overall dimensions(L×W×H) 3300×3280×4000 mm

Vertical lathe components ptoto

vertical lathe componentsvertical lathe components

vertical lathe componentsvertical lathe components

Contact us for Vertical Cnc Lathe price

Vertical cnc lathe price

Vertical cnc lathe price

Vertical cnc lathe price

Vertical cnc lathe price

Looking for ideal Vertical Lathe Cnc for Sale Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Lathe Components are quality guaranteed. We are China Origin Factory of Vertical Cnc Lathe Price. If you have any question, please feel free to contact us.
