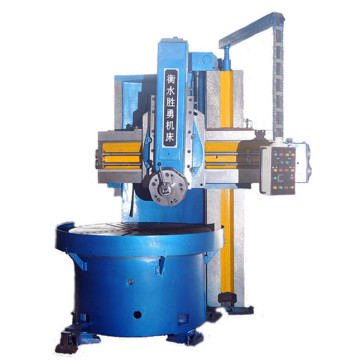

CAD design vertical lathe turning machine photo

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5118

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 1400mm

Maximum Turning Diameter: 1800mm

Maximum Height Of Workpiece: 1000mm

Maximum Weight Of Workpiece: 5 Ton

Power Source: Manual

Controlling Mode: Artificial

Automatic Grade: Manual

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

This series vertical lathe turning machine is divided into single column and double column vertical lathe. Vertical Turning Lathe Machine is mainly applicable to high speed steel and hard alloy cutting tools, black metal, non-ferrous metals and some non-metallic parts.
Vertical lathe turning machine is suitable for heavy parts processing, wind power generation and other industries.Vertical Turning Lathe machine can be carried out inside and outside cylindrical surface, conical surface, arc, thread and the complex shape of the rotary surface in high speed turning.
Vertical lathe turning machine adopts modular design, finite element analysis, simple structure and strong reliability. All the large parts of the vertical Turning Lathe Machine is analyzed and calculated by the finite element method. Vertical lathe turning machine has reasonable structure, high stiffness, high stability and large cutting force are realized.

Single column vertical lathe pictures

Vertical Lathe Turning

Technical specification of CAD design vertical lathe turning machine C5118

1 Table diameter 1400 mm

2 Maximum turning diameter 1800 mm

3 Maximum height of workpiece 1000 mm

4 Maximum weight of workpiece 5 t

5 Speed change of table 5-160 r/min

6 Working table Step of rotation speed 16

7 Feed rates 0.8-86 mm/min

8 Step 12 step

9 Horizontal travel of tool post 1000 mm

Vertical travel of tool post 800 mm

10 Horizontal travel of side cutter bar 630 mm

Vertical travel of side cutter bar 900 mm

11 Crossrail travel 650 mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 30 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Machine weight 17.5 t

16 Overall dimensions(L×W×H) 2900×2900×3800 mm

Parts of vertical lathe pictures

vertical lathe picturesvertical lathe picturesvertical lathe pictures

Recommend vertical lathe photo

Vertical Lathe Photo

Vertical Lathe Photo
