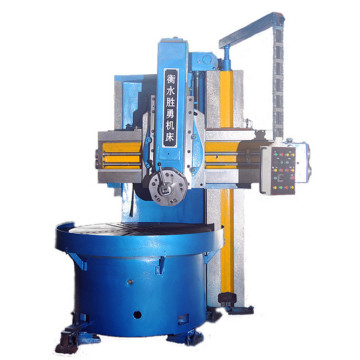

Reasonable price heavy CNC Vertical lathe machinery

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CK5125

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 2300mm

Maximum Turning Diameter: 2500mm

Maximum Height Of Workpiece: 1350mm

Maximum Weight Of Workpiece: 10ton

Controlling Mode: CNC

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Cnc Vertical Lathe machinery can achieve strong turning ,suitable for high-speed steel, carbide and ceramic cutting tools, turning all kinds of ferrous metals, non-ferrous metals and some non-metallic materials of the workpiece.CNC vertical lathe machinery can complete the rough, fine inside and outside the cylindrical surface, inside and outside the conical surface, cutting, threading and other processes. Vertical Lathes machinery has the characteristics of high accuracy, large rigidity, long service life, good seismic resistance and suitable for cutting.
Features of CNC Vertical lathe machinery:
1 Columns, connecting beams and table base make ups frame structure, So vertical lathe machinery has strong rigidity and can bear larger cutting load.
2 The table spindle adopts the high precision adjustable radial clearance double row short cylindrical roller bearing centering, the axial use constant current hydrostatic guide rail,so that vertical lathe machinery has a static and dynamic stiffness, small thermal deformation.

3 Main drive of vertical lathe machinery has AC motor drive, and the speed range of the worktable is achieved by the 16 spindle speed change mechanism.

Vertical lathe machinery

Technical specification of Heavy cnc vertical lathe machinery CK5125

1 Table diameter 2300 mm

2 Maximum turning diameter 2500 mm

3 Maximum height of workpiece 1350 mm

4 Maximum weight of workpiece 10 t

5 Speed change of table 2.5-80 r/min

6 Rotation speed of work table 16

7 Feed rates 0-1000 mm/min

8 Step stepless

9 Horizontal travel of tool post 1600 mm

Vertical travel of tool post 915 mm

10 Horizontal travel of side cutter bar 750 mm

Vertical travel of side cutter bar 1100 mm

11 Crossrail travel 850 mm

12 Maximum section scale of tool bar 35×45 mm

13 Power of main motor 45 kw

revolutions 1470r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Rapid travelling speed of tool post 2000 mm/min

16 Machine weight 23 t

17 Overall dimensions(L×W×H) 3450×3430×4100 mm

Recommend heavy duty single column and double column vertical lathes machinery

Vertical lathes machinery

Vertical lathes machinery

Vertical lathes machinery

Vertical lathes machinery

Looking for ideal Vertical Lathe Machinery Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Lathes Machinery are quality guaranteed. We are China Origin Factory of CNC Vertical Lathe Machinery. If you have any question, please feel free to contact us.
