Payment Type: | L/C |
---|---|
Incoterm: | FOB |
Min. Order: | 1 Set/Sets |
Model No.: C5118
Brand: hengshui shengyong
Type: Vertical Lathe
Processing Accessory: Chuck CNC Lathe
Guide Rail: Horizontal Guide Rail
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Manual
Controlling Mode: Artificial
Automatic Grade: Manual
Setting Mode: Table
Precision: Normal Precision
Certification: ISO 9001
Condition: New
Maximum Weight Of Workpiece: 5 Ton
Table Diameter: 1400 Mm
Maximum Turning Diameter: 1800 Mm
Maximum Height Of Workpiece: 1000 Mm
Packaging: as request
Productivity: 5 set
Transportation: Ocean
Place of Origin: China
Supply Ability: 5 set /month
Certificate: ISO9001
Port: Tianjin
Payment Type: L/C
Incoterm: FOB
Vertical-Lathe Machine is used to process parts inside and outside the cylindrical surface,cone surface,end groove and chamfer. Main components of vertical-lathes are: column, cross beam, worktable,transmission box, tool post, feed box, electric cabinet and control button station, etc.Auxiliary facilities of vertical-lathes include automatic lubrication system, constant temperature tank, automatic chip removal system, lighting device, shield and hydraulic system etc.
Vertical-lathe machine design features
1 Vertical-lathe table base adopts high strength and high rigidity cast iron material to improve stability and absorb vibration. The unique thermal symmetrical structure overcomes the influence of the spindle temperature rise on the machining accuracy.
2 A spindle encoder is arranged in the middle of the spindle to realize constant linear speed cutting function.
3 Vertical-lathe machine is equipped with semi closed protective cover, cross beam is equipped with organ type protective cover.

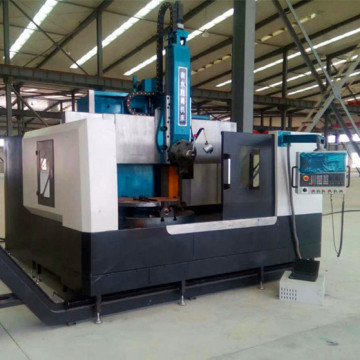

Best supply Vertical-lathe machine for sale
Technical specification of C5118 best supply Vertical-lathe machine for sale
1 Table diameter 1400 mm
2 Maximum turning diameter 1800 mm
3 Maximum height of workpiece 1000 mm
4 Maximum weight of workpiece 5 t
5 Speed change of table 5-160 r/min
6 Working table Step of rotation speed 16
7 Feed rates 0.8-86 mm/min
8 Step 12 step
9 Horizontal travel of tool post 1000 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutter bar 900 mm
11 Crossrail travel 650 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 30 kw
revolutions 1470 r/min
14 Power of Feed motor 1.3/1.7 kw
Revolutions 940/1440 r/min
15 Machine weight 17.5 t
16 Overall dimensions(L×W×H) 2900×2900×3800 mm
Recommend Vertical-lathe machine for sale
